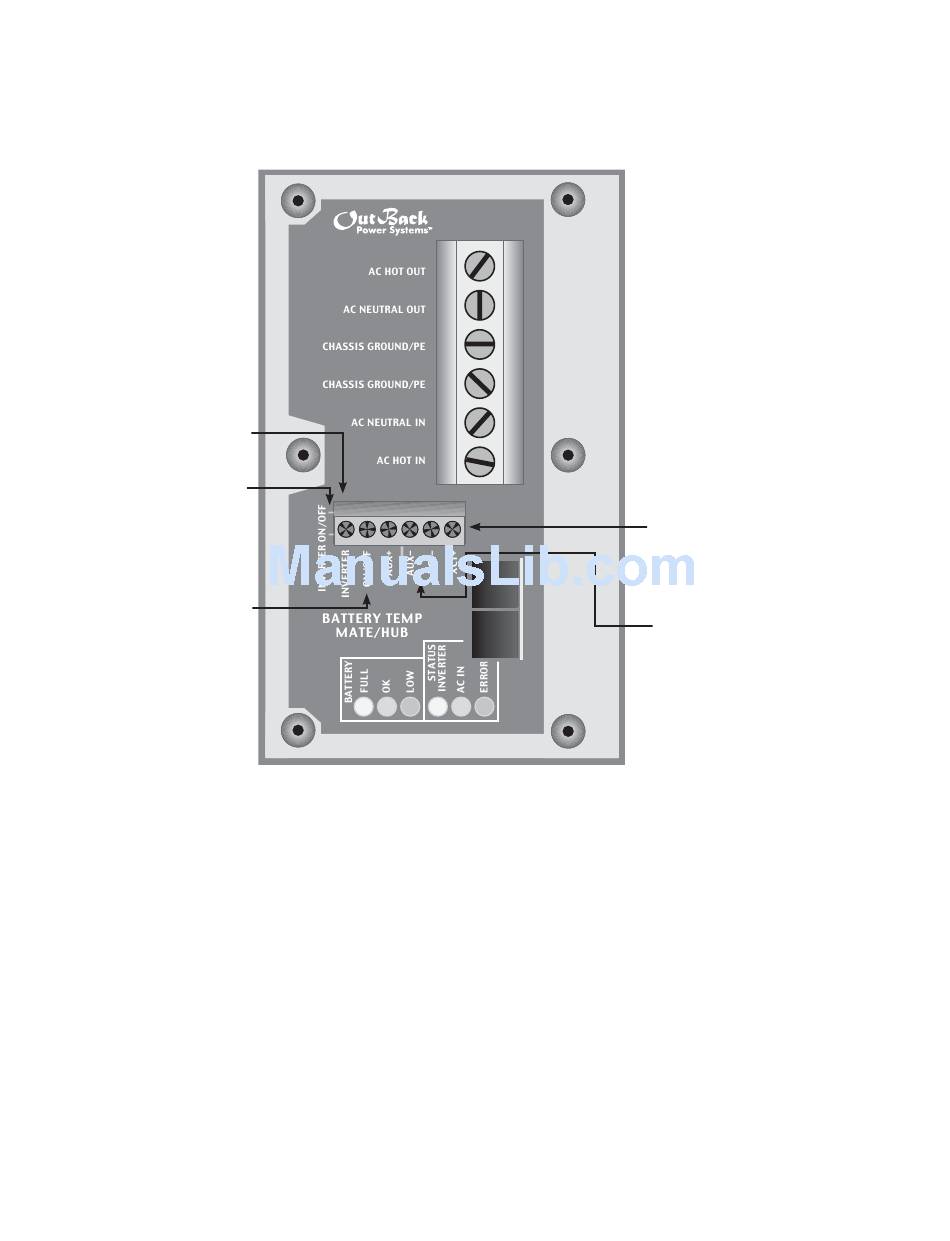

LOW VOLTAGE TERMINALS
Control Terminal
Wiring Block
Jumper
INVERTER ON/OFF:
Allows for manual
switch to control the
FX (default operation
is "ON"); controlled by
the MATE when the
jumper is present.
8
NOTE: Keep Control
Wiring Terminal Block
screws tight and the
block itself secured tightly
to AC Board. Otherwise,
the FX can malfunction.
The Terminal Block can be
unplugged for easier wire
installation and removal/
reinstallation of the FX.
AUX OUTPUT
(AUX+/AUX-):
12VDC
at 0.7 amps (8.4 watts)
maximum is available at
these terminals; the AUX's
default is to drive cooling
fans or the Turbo Fan.
XCT+/XCT- are non-
operational terminals (do
not connect).
