LOW-VOLTAGE WIRING
This six-position terminal block can be
unplugged to make wiring easier and to
simplify the removal and reinstallation of an FX.
It must be securely and completely plugged
in for proper FX functioning. Otherwise,
operational errors can occur.

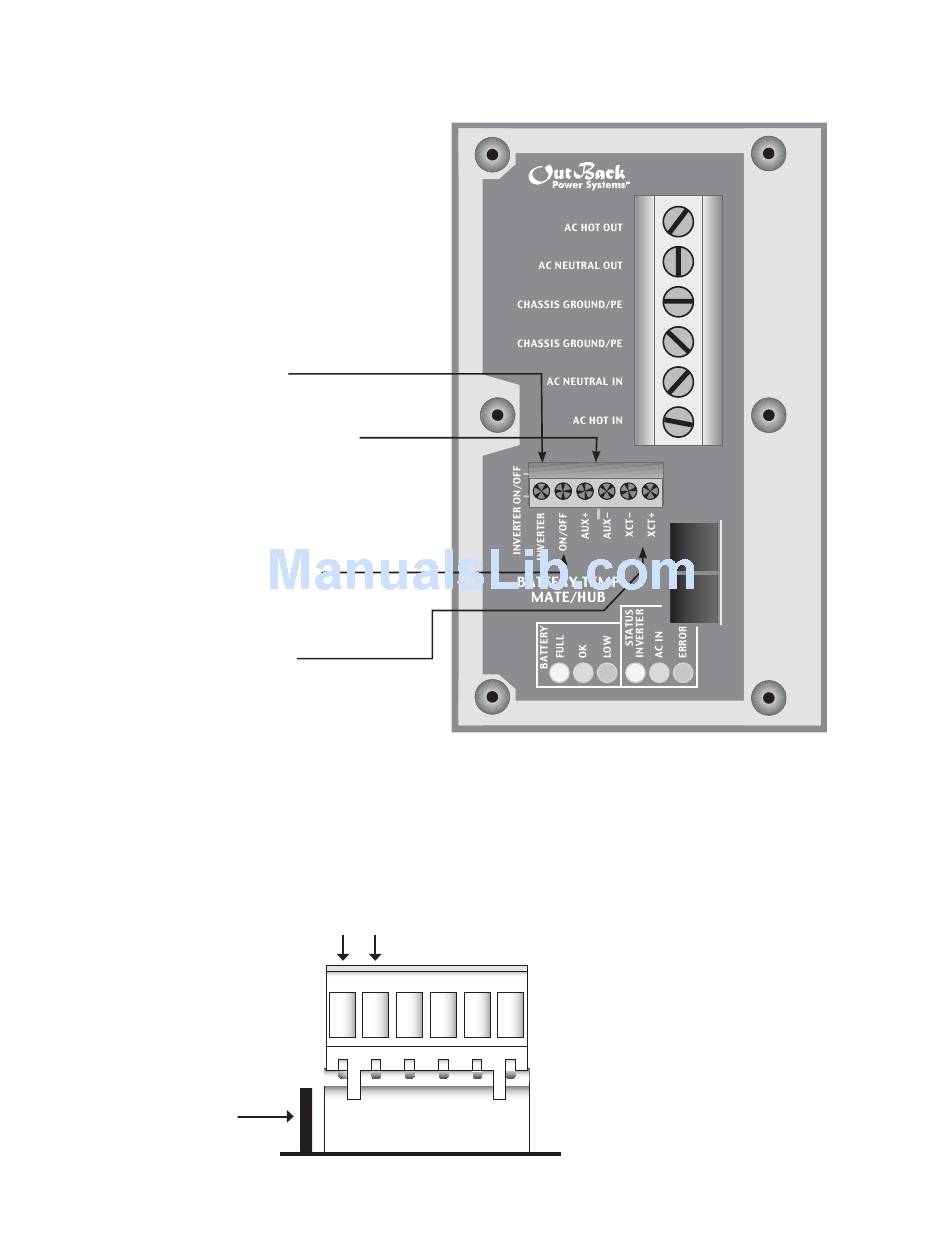

Control Wiring Terminal Block
12 VDC at 0.7 amps (8.4 w) is available at
the AUX+/AUX- terminals
A switch can be wired to the INVERTER
and ON/OFF terminals to manually
control the FX
XCT+/XCT- are not operational

INVERTER and ON/OFF

• Replacing the pre-installed jumper connecting the ON/OFF terminals with a switch allows manual control of
the FX.
• Without an ON/OFF switch, the inverter(s) will always be ON due to a factory-installed, removable jumper.
• Cycling the switch again returns the inverter to the ON mode.
Jumper
INVERTER ON/OFF
Control Wiring Terminal Block,
side view
