4. Installing the camera arm

• Place the Base plate in front of you on a steady surface.
• When you use your ClearNote+ with a Laptop PC, place the laptop PC
on the Base plate. The connector block of the base plate can be on the
right or left side of the laptop.
• Place the stand (which contains a connector) in the connector block on
the Base plate so it is on the opposite side of the laptop.
Note: If you do not use a laptop PC, ensure that the ClearNote+
camera arm is positioned with the camera directly above the Base
plate!
• Connect the power adapter to the ClearNote+.
• Connect the adapter to a nearby wall socket. The internal batteries are
now being charged.
• Connect the ClearNote+ output (USB2.0 or VGA) to a stand alone VGA
monitor or PC as indicated underneath.
Note1: The used monitor needs to be compatible with a resolution of
640 x 480 pixels at 60Hz.
Note2: connect the USB connector (minimum USB2) to your PC after
you installed the driver software to your PC.

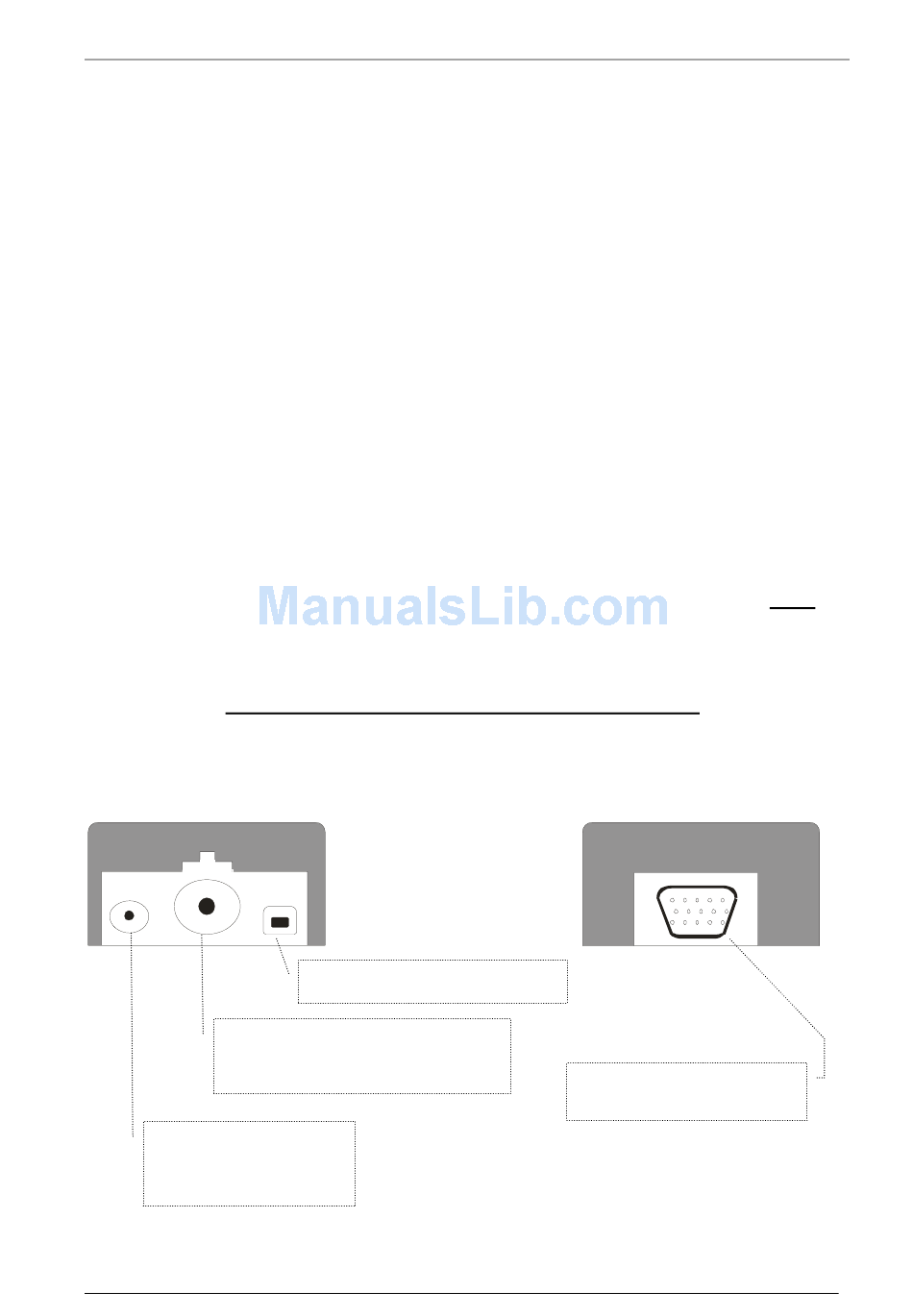

Connectors on the Base plate connector block:
Left side
NTSC Video cinch plug for
Power plug for
adapter
English
USB2.0 – connector
external camera
+
ClearNote User manual
right side
VGA – connector
