Summary of Contents for Optelec Compact+ HD

  • Page 4: Table Of Contents

    Optelec Compact Contents 1. Introduction……………………………………………………………………… ...13 About this manual…………………………………………………………….14 What’s in the box?.................. 14 2. Getting started……………………………………………………………………...15 Using the Compact HD with or without the handle ………………………16 Cleaning the mirror …………………………………………………………..16 3. Buttons …………………………………………….………………………………17 Switching the power on and off ……………………………………………..18 Adjusting the magnification ………………………………………………….18...
  • Page 5 Menu: Sound..……………………………………………………………… ..30 Menu: Color..………………………………………………………………….31 Menu: Reset ..…………………………………………………………………32 Appendix A: Safety ..…………………………………………………………………33 Appendix B: Technical information ..………………………………………………34 Appendix C: Warranty Conditions..…………………………………………………36 Optelec Offices Worldwide..………………………………………………………..214 Inhoudsopgave 1. Introductie..…………………………………………………………………………42 Over deze handleiding ..……………………………………………………43 Inhoud van de verpakking ..…………………………………………………43 2. Aan de slag ..……………………………………………………………………….44 De Compact HD gebruiken met of zonder het handgreep ..……………45...
  • Page 6 Dit menu bevat 2 submenu’s: ..……………………………………………..54 Menu: Brightness (Helderheid) ..……………………………………………56 Menu: Power (Stroominstellingen) ..………………………………………..57 Menu: Sound (Geluid) ..……………………………………………………...60 Menu: Color (Kleuren) ..……………………………………………………...61 Menu: Reset (Fabrieksinstellingen)..……………………………………….62 Bijlage A: Veiligheid..……………………………………………………....63 Bijlage B: Technische informatie ..…………………………………………………64 Optelec kantoren wereldwijd….……………………………………………..214 Table des matières 1. Introduction ..……………………………………………………......67...
  • Page 7 Optelec Compact 2. Pour débuter ..……………………………………………………......69 Utiliser le Compact HD avec ou sans sa poignée ……………………….70 Nettoyer le miroir ..……………………………………………………...70 3. Les touches..……………………………………………………......71 Allumer et éteindre ..……………………………………………………..72 Ajuster le grossissement..…………………………………………………...72 Sélectionner le mode de visualisation ..……………………………………73 Utiliser le bouton de capture instantanée ………………………………….74 4.
  • Page 8 Optelec Compact Annexe A: Sécurité ..……………………………………………………....88 Annexe B: Renseignements techniques ..…………………………………………89 Annexe C: Conditions de garantie ..………………………………………………..91 Optelec dans le monde……..……………………………………………………..214 Indice 1. Introduzione ..……………………………………………………......97 A proposito di questo manuale ..……………………………………………98 Contenuto della confezione ..………………………………………………98 2. Per iniziare..……………………………………………………......99 Usare Compact HD con o senza il manico ..……………………………100...
  • Page 9 Appendice C: Condizioni di garanzia ..……………………………………………121 Sedi Optelec nel mondo..……………………………………………………..214 Índice 1. Introducción..……………………………………………………......127 Acerca de este manual ..…………………………………………………..128 ¿Qué contiene la caja? ..…………………………………………………...128 2. Conocer el Compact+ HD……………………………………………………….129 Utilizar el Compact HD con o sin la manija ……………………………..130 Limpiar el espejo ..……………………………………………………..130...
  • Page 10 Optelec Compact Ajustar la amplificación …………………………………………………….133 Seleccionar un modo de visualización……………………………………133 Utilizar el botón de foto instantánea ………………………………………134 4. Carga de la batería……………………………………………………………….135 Cargar el Compact HD ……………………………………………………135 Modo de reposo y apago automático …………………………………….136 Aviso de batería vacía ..……………………………………………………136 5.
  • Page 11 Optelec Compact Inhalt 1. Einführung ..……………………………………………………......157 Über dieses Handbuch..……………………………………………………158 Lieferumfang ..……………………………………………………....158 2. Erste Schritte..……………………………………………………......159 Benutzen des Compact HD Ein- oder Beidhändig …………………….160 Reinigung des Spiegels ..…………………………………………………..160 3. Bedientasten ..……………………………………………………......161 Ein- und Ausschalten ..…………………………………………………….162 Einstellen der Vergrößerung ………………………………………………162 Auswahl des Darstellungsmodus …………………………………………163 Schnappschuss-Funktion ………………………………………………….164...
  • Page 12 Energieoptionen …………………………………………172 Menü: Sound Signalton …………………………………………………174 Menü: Color Farben …………………………………………………….175 Menu: Reset …………………………………………………………………176 Anhang A: Sicherheitshinweise …………………………………………………..178 Anhang B: Technische Informationen…………………………………………….179 Anhang C: Garantiebedingungen………………………………………………….181 Anhang D: Erklärungen……………………………………………………………..182 Optelec Weltweit ……………………………………………………………………214 …………..……………………………………………………....189 ..……………………………………………………....190 ? ..……………………………………………………....190 ..……………………………………………………......191 Compact HD ..………………………………192 ..……………………………………………………......192 ..……………………………………………………........193 ..……………………………………………………...194...
  • Page 13 Optelec Compact ..……………………………………………………..196 ..……………………………………………………......197 Compact ..……………………………………………………..197 ..……………………………………………………....198 ..……………………………………………………......198 5. Compact ..……………………………………………………....199 ..……………………………………………………......200 ..……………………………………………………......200 ..…………………………………………………….......200 ..…………………………………………………….....201 ..…………………………………………………….....201 ..……………………………………………………......203 ..…………………………………………………….....204 ..…………………………………………………….....206 ..……………………………………………………....207 ..……………………………………………………..208 ..…………………………………………………….....209 ..…………………………………………………….....210 ..…………………………………………………….....212...
  • Page 14 Optelec Compact User Manual Version 1.0 © 2014 Optelec, the Netherlands All rights reserved Optelec P.O. Box 399 2990 AJ Barendrecht The Netherlands Phone: +31 (0)88 678 34 44...

  • Page 15: Introduction

    Compact 1. Introduction Congratulations on choosing the Compact Optelec’s unique electronic video magnifier enables you to view and magnify printed text and images in high resolution HD quality in full color or one of the high contrast modes. With its multifunctional design and integrated handle, the Compact...

  • Page 16: About This Manual

    Optelec Compact About this manual At Optelec, we are constantly improving our products and their functionalities. Therefore, it is possible that this manual is not the latest version. Please download the most up-to-date manual on www.optelec.com at the Support section.

  • Page 17: Getting Started

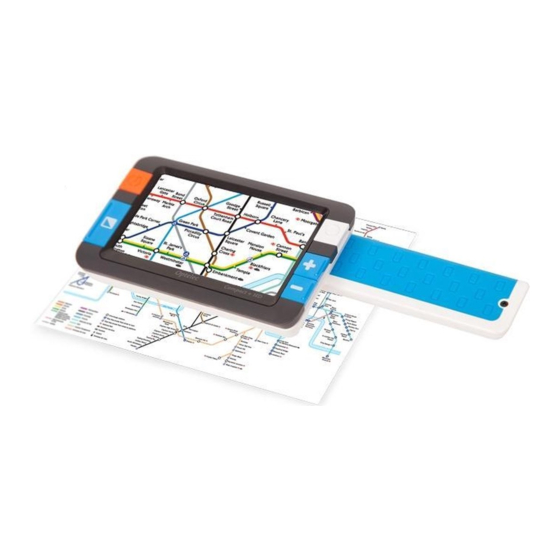

    Optelec Compact 2. Getting started The following figure shows the Compact HD’s main components: On/Off button Mode button Snapshot button Magnification button: zoom in Magnification button: zoom out Handle Camera LED lights Mirror The Compact HD is placed correctly in front of you when the screen is facing...

  • Page 18: Cleaning The Mirror

    Optelec Compact Using the Compact HD with or without the handle The Compact HD is ideal to quickly scan and view objects or documents and has a collapsible, swing-out handgrip, giving you the feeling that you are using a regular magnifying glass. Simply rotate the handle clockwise, located on the underside, to release it and swing it out to snap in place.

  • Page 19: Buttons

    Optelec Compact 3. Buttons The Compact HD has the following buttons: Mode Pressing the Mode button to the left of the screen allows you to select one of the viewing modes. Pressing this button for three seconds will turn off the object lighting.

  • Page 20: Switching The Power On And Off

    Optelec Compact On/Off Button Pressing the orange On/Off button, located on the left side of the screen, for one second, will switch the unit on and off. The camera and camera mirror of the Compact HD are located at the back of the unit.

  • Page 21: Selecting A Viewing Mode

    Optelec Compact button to decrease the magnification. The magnification range starts at 2.8 times and can be increased to 11 times. Selecting a viewing mode Pressing the Mode button to the left side of the screen allows you to select one...

  • Page 22: Using The Snapshot Button

    Optelec Compact Using the snapshot button The snapshot button allows you to take a temporary picture of a text or an image. Hold or place the Compact HD over the text or image you wish to capture. Press the snapshot button located on the top right side of the unit to take the snapshot.

  • Page 23: Charging The Battery

    Optelec Compact 4. Charging the battery Charging the Compact The Compact HD is delivered with a power supply and four country-specific power plugs. The power plugs are available in EU, US, UK and AU versions. Select the power plug appropriate to your country and mount this onto the power supply.

  • Page 24: Standby And Auto Power Off

    Optelec Compact Standby and Auto Power Off The Compact HD will automatically go into standby mode after two minutes if no button is pressed or no image change is detected. Pressing any button will wake the unit up again. Four minutes after the Compact HD goes into standby mode, the unit will automatically switch off.
  • Page 25 Optelec Compact 5. The Compact HD Menu Shows the battery status and firmware version. Allows you to view or delete the taken images. Allows you to adjust the screen brightness. Allows you to configure the power settings. Allows you to switch the sound on and off.

  • Page 26: Activating The Menu

    Optelec Compact Activating the menu To enter the menu, press the + and – buttons simultaneously for one second. Navigating the menu Use the + or – buttons to navigate between the menu items. The Mode button located to the left of the screen will activate the chosen menu item or confirm the selection.

  • Page 27: Menu: Information

    Optelec Compact Menu: Information This menu item shows the battery status and the current firmware version of the unit. In this menu, it is not possible to make any changes. Activate the menu by pressing the + and – buttons simultaneously for one second.
  • Page 28 Optelec Compact Submenu View: To view the taken images: - Activate the menu by pressing the + and – buttons simultaneously for one second. - Use the + button to move up and the – button to move down within the menu. Select the menu option Images and activate this menu by pressing the Mode button.
  • Page 29 Optelec Compact Select the Delete option by using the + and – buttons to scroll through the options. Press the Mode button to confirm your choice. Select the image you wish to delete by using the + button to advance to the next image or the –...
  • Page 30 Optelec Compact Press the + and – buttons to exit the menu, or press the snapshot button to go back to the previous menu. Menu: Power This menu item contains two submenus: Power off and Standby. Submenu Power off Sets the time before the Compact HD is automatically switched off.
  • Page 31 Optelec Compact - Select the time before the unit will power off by using the + button to increase and the – button to decrease the time. Press the Mode button to confirm your choice. Selecting DISABLED will disable the automatic power off function.
  • Page 32 Optelec Compact - Select the time before the unit enters standby by using the + button to increase and the – button to decrease the time. Press the Mode button to confirm your choice. Selecting DISABLED will disable the automatic standby function.
  • Page 33 Optelec Compact Press the + and – buttons to exit the menu, or press the snapshot button to go back to the previous menu. Menu: Color The Compact HD supports four high contrast modes. For each of these four modes, the foreground and background colors can be selected. Three of the high contrast modes can be disabled if just one high contrast mode is required.

  • Page 34: Menu: Reset

    Optelec Compact Press the Mode button to confirm your choice. Press the + and – buttons to exit the menu, or press the snapshot button to go back to the previous menu. Menu: Reset The Compact HD can be reset to the factory default settings. Any settings that have been adjusted, will be restored to the factory defaults.

  • Page 35: Compact + Hd

    HD to excessive heat or direct sunlight to avoid the risk of fire. Do not remove any parts of the Compact HD. Contact an Optelec authorized service organisation in your area. To avoid risk of electrical damage, keep your Compact HD away from fluids and chemicals.
  • Page 36 Optelec Compact Appendix B: Technical information Magnification 3 – 10 times Viewing modes Full color photo mode High contrast white on black High contrast black on white High contrast color combination 1 High contrast color combination 2 High contrast ratio...
  • Page 37 Optelec Compact Operating conditions Temperature +10°C to 35°C / 50°F to 95°F Humidity < 70%, no condensation Altitudes up to 3000 m (9842 feet) Pressure 700 – 1060 hPa Storage & transportation conditions Temperature +0°C to 40°C / 32°F to 104°F Humidity <...
  • Page 38 Optelec reserves the right to repair or replace any purchased Compact HD with a similar or improved product. In no event shall Optelec or its suppliers be held liable for any indirect or consequential damages. The original user’s remedies are limited to replacement of the Compact HD.
  • Page 39 Optelec Compact WEEE Notice The directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13 February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.
  • Page 40 Optelec Compact RoHS Compliance This product is in compliance with Directive 2011/65/EU of the European Parliament and of the Council of 1 July 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS-II) and its amendments.
