Audio Authority UniDrive AVP-11 Specifications

Model AVP-11
AVP-11 FEATURES:
• One A/V input, one A/V output
• Audio, video and IR signals carried over two Cat 5 cables
• High bandwidth component video (YPbPr) 1080p
• Digital audio (coaxial) and stereo analog audio
• Active Gain Equalization (AGE) technology
• Cable length compensation adjustment at remote location
• Power supply for transmitter also powers receiver
• Wallplate or enclosed box receiver options
AVP-11 SPECIFICATIONS:
Model Numbers:
Analog Audio Input/Output:
Digital Input/Output Type:
Input Impedance: 75 ohms/100K ohms
Min Load Impedance: 75 ohms/10K ohms
Multi-channel Digital:
Frequency Response:
S/N Ratio:
THD+Noise:
Crosstalk:
E X P E R T A U D I O / V I D E O S O L U T I O N S S I N C E 1 9 7 6
Compatible Cat 5 Receivers:
Models 9878, 9879 and 9880
Video Signal Type:
9880T, 9880
Video Formats (Analog):
Right/Left Stereo
Input/Output Impedance:
Coaxial
Input Ground Isolation:
Gain:
Yes Gain Accuracy:
10-50KHz 3dB Bandwidth:
55dB Input Coupling:
0.10% S/N Ratio:
Max Equalization:
-70dB
1:1 HDTV Cat 5 System
• Component video, digital audio, and analog audio
• Pristine HDTV signals up to 1,000 feet from source
• IR remote control signal pathway in Cat 5 bus
The UniDrive delivers HDTV signals from a single source
to one remote location up to 1,000 feet away. Unlike
passive balun systems, the UniDrive employs Active Gain
Equalization (AGE), dramatically extending range and signal
integrity. In addition to HDTV audio and video signals, the
UniDrive has a 3-conductor pathway for infrared control
signals. This pathway can be used for signals traveling in
either direction.

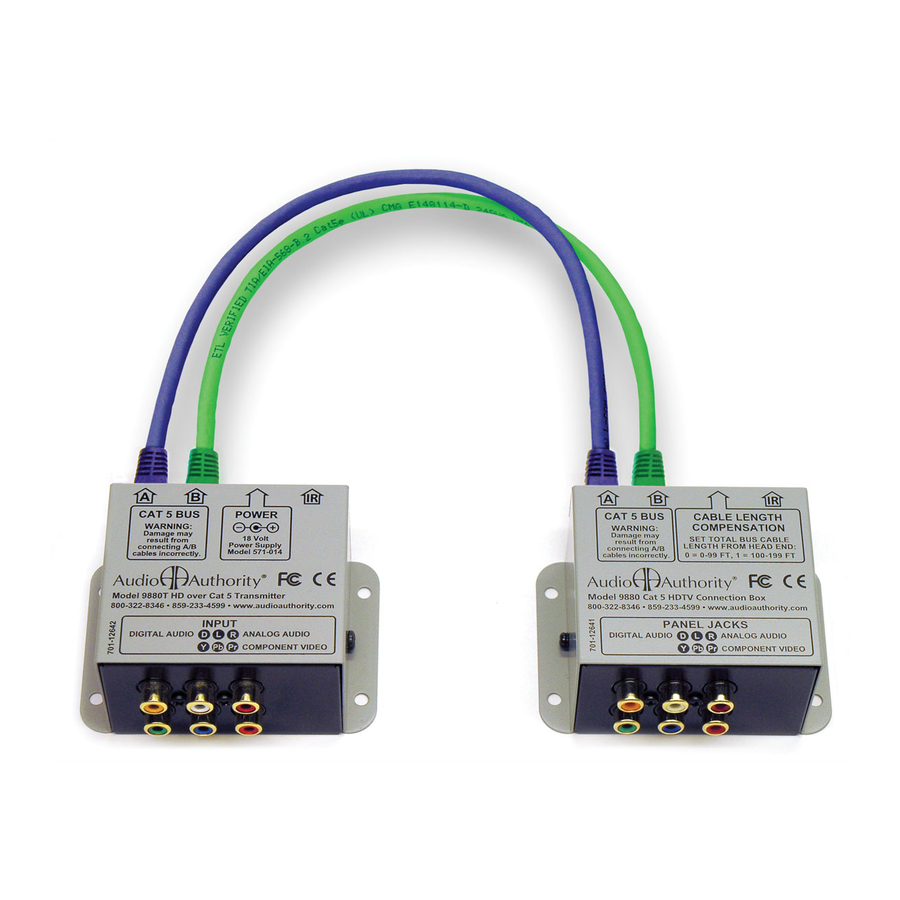

The system includes one Model 9880T Cat 5 Transmitter,
and one Model 9880 Cat 5 Receiver. The cable length
compensation adjustment on the receiver allows the
installer to fine tune image quality over long Cat 5 runs.
Only the transmitter requires a power supply; the receiver is
powered over the Cat 5 cable.
Transmitter rear view
IR POWER B
IN/OUT CAT 5
Component (YPbPr) DC Input Connector:
480i/p, 540i/p, 720p, 1080i/p DC Input Voltage/Polarity:
75 ohms Max DC Input Current:
Yes Transmitter Size (H-W-D, inches):
1 Receiver Size (H-W-D, inches):
2% Warranty:
Agency Approvals:
120MHz
Accessories Included:
AC
65dB
40dB
2048 Mercer Road, Lexington, KY 40511-1071 USA
Customer Toll-Free USA & Canada: 800-322-8346
Product Focus
Receiver rear view
A IR CABLE LENGTH
IN/OUT COMPENSATION
5.5 X 2.1mm
18V/Center positive
1.75 x 3.75 x 3
1.75 x 3.75 x 3
One Year Replacement
571-014 Power Supply
Phone: 859-233-4599 • Fax: 859-233-4510
www.audioauthority.com
B A
CAT 5
250mA
FCC, CE
10/09
