Summary of Contents for Audio Authority 1720R

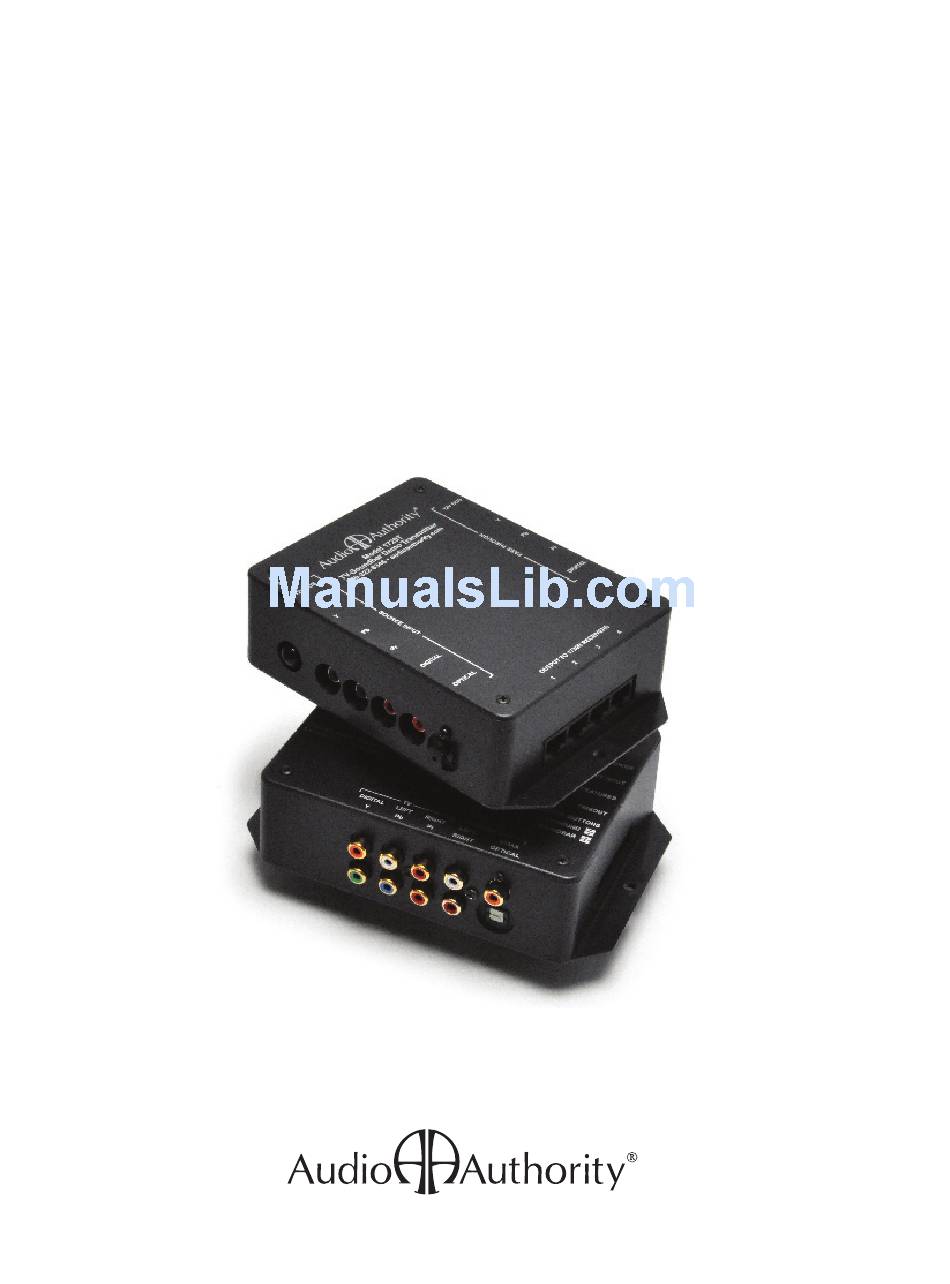

- Page 1 Soundbar Demo and AV Distribution System 1720T and 1720R...
- Page 2 Transmitter Output: Fabricate Cat 5/6/7 cables using EIA-568B standard, and test with a network cable tester (continuity testing is not adequate). Connect one 1720T output to each 1720R as desired. Transmitter Bus: To add more receivers, connect bus outputs to one or more 1720T transmitters with short RCA patch cords, or barrel connectors.
- Page 3 1720T Cover Artwork Date Drawing No. Sheet Rev. Output 1 to 1720R 6/7/12 17AN2020 Model 1720R 1720T TV-SoundBar Demo Receiver Model 1720R POWER 1720R INPUT 800-322-8346 • 859-233-4599 • audioauthority.com CONNECTIONS 12V INPUT INPUT FROM FEATURES 1720T TRANSMITTER TIMEOUT CABLE LENGTH COMPENSATION SELECTOR BUTTONS 0 = 0-99 FT, 1 = 100-199 FT, ETC.
- Page 4 1720R CONTROL AND SETUP Model 1720R Connect power supply to AC outlet Feature switches (see below) Timeout - see Timeout Intervals table Timeout Intervals Connect 2-wire momentary switch to activate TV Sound no timeout Connect 2-wire momentary switch to activate Soundbar...
