MICROWAVE OVEN

USER'S MANUAL
PMD 17 BiX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMD 17 BiX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PMD 17 BiX

Summary of Contents for Philco PMD 17 BiX

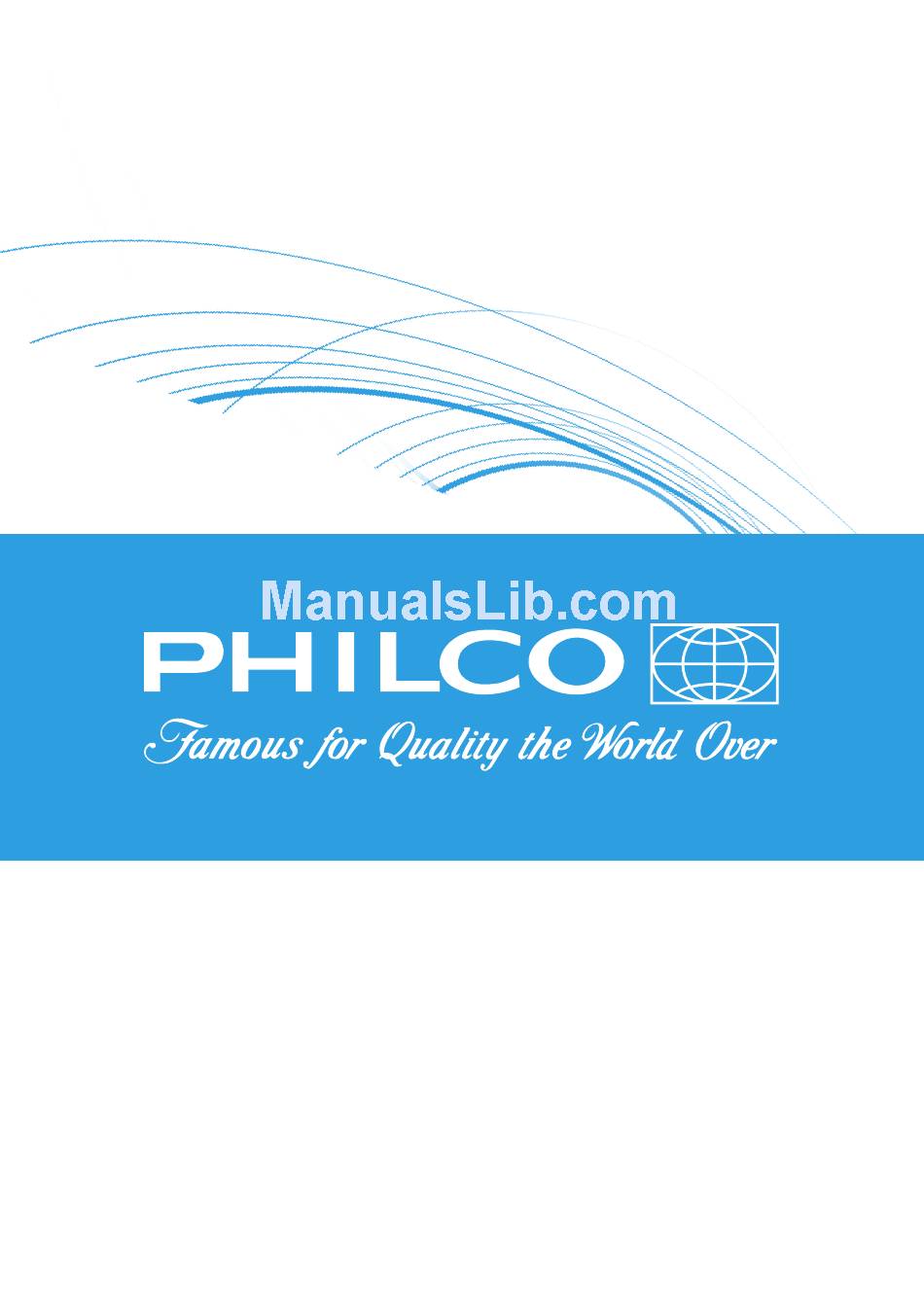

  • Page 1: Microwave Oven

    MICROWAVE OVEN USER’S MANUAL PMD 17 BiX...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual.

  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY PRECAUTIONS ........................2 PART 2: DESCRIPTION OF THE APPLIANCE ....................5 PART 3: INSTALLATION ........................... 6 PART 4: THE BASICS OF COOKING IN A MICROWAVE OVEN ..............11 PART 5: OPERATING INSTRUCTIONS FOR THE MICROWAVE OVEN............13 PART 6: MAINTENANCE AND CLEANING ....................

  • Page 4: Part 1: Safety Precautions

    PART 1: SAFETY PRECAUTIONS Recommendation: Carefully read these instructions before installing and operating this microwave oven. Write down the serial number found on the rating label of the oven in the space below. It is essential that you store this user‘s manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user‘s manual is attached to the appliance, so that the new owner can learn about the operation of the appliance and the relevant warnings.

  • Page 5: Read Carefully And Keep For Future Reference

    10. Do not overcook food. 11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven. 12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

  • Page 6: To Reduce The Risk Of Injury To Persons Grounding Installation

    To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

  • Page 7: Part 2: Description Of The Appliance

    PART 2: DESCRIPTION OF THE APPLIANCE A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Inspection door F) Door assembly G) Safety lock system H) Grill rack EN - 5 Copyright © 2014, Fast ČR, a. s. 08/2014...

  • Page 8: Part 3: Installation

    PART 3: INSTALLATION Remove the oven from the box and and all materials from the oven cavity. The oven comes complete with the following accessories: Glass tray Turntable ring assembly Instruction manual Grill rack Installing the turntable Hub (underside) Glass tray Turntable ring assembly Turntable shaft...

  • Page 9: Installation Instructions

    The accessible surface may be hot during operation. Installation Instructions Please Read the Manual Carefully Before Installation. Please note: Electrical connection The oven is fi tted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualifi ed electrician, and in accordance with the appropriate regulations.
  • Page 10 NOTE: The bracket and bottom caninet template are needed when installating in above installation. B. Prepare the caibinet Read the instruction on the BOTTOM CANINET TEMPLATE, put the template on the bottom plane of cabinet. EN - 8 Copyright © 2014, Fast ČR, a. s. 08/2014...
  • Page 11 Make the marks on the bottom plane of cabinet according to marks“a“ of of the template Screw A Bracket Centre line Remove the bottom cabinet template and fi x the bracket with screw A. Screw A Bracket C. Install the oven Install the oven to the cabinet - Make sure the back of the oven is locked by bracket.
  • Page 12 Open the door, fi x the oven to the cabinet with Screw B, at the installation hole. Then fi x the Trim-kit plastic cover to the installation hole. Screw B Installation Hole EN - 10 Copyright © 2014, Fast ČR, a. s. 08/2014...

  • Page 13: Part 4: The Basics Of Cooking In A Microwave Oven

    PART 4: THE BASICS OF COOKING IN A MICROWAVE OVEN UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection asgainst exposure to microwave energy.
  • Page 14 Utensils Notes Paper napkins May be used to reheat food and to absorb oil and fat. Only for short cooking periods, supervising the process carefully. Baking paper Use as protection to prevent spraying or as a cover when steam cooking. Plastic materials Follow the manufacturer's instructions.

  • Page 15: Part 5: Operating Instructions For The Microwave Oven

    PART 5: OPERATING INSTRUCTIONS FOR THE MICROWAVE OVEN This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1. Clock Setting When the microwave oven is electrifi ed, the oven will display “0:00”, buzzer will ring once. 1) Press “Kitchen Timer/Clock”...

  • Page 16: Combination Cooking

    4. Combination Cooking 1) Press the “Grill / Combi. ” key once, and “G” displays. 2) Press “Grill / Combi. ” for times or turn “ ” to select the combination power “C-1 (55%microwave+45%grill)” and “C-2 (36%microwave+64%grill)” will display in order. 3) Press “Start/ +30 Sec./Confi rm”...

  • Page 17: Kitchen Timer

    Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following: 1) Press “Time Defrost” once, the screen will display “dEF2”; 2) Turn “ ” to adjust the defrost time of 5 minutes; 3) Press “Microwave”...
  • Page 18 The menu chart: Menu Weight Display 200 g A-1 Pizza 400 g 250 g A-2 Meat 350 g 450 g 200 g A-3 Vegetable 300 g 400 g 50g (with 450 ml cold water) A-4 Pasta 100g (with 800 ml cold water) 200 g A-5 Potato 400 g...

  • Page 19: Part 6: Maintenance And Cleaning

    PART 6: MAINTENANCE AND CLEANING Be sure to unplug the appliance from the power supply. Clean the cavity of the oven after using with a slightly damp cloth. Clean the accessories in the usual way in soapy water. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

  • Page 20: Part 7: Before You Call The Service Centre

    PART 7: BEFORE YOU CALL THE SERVICE CENTRE Normal Microwave oven interfering TV Radio and TV reception may be interfered when microwave reception oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. Dim oven light It is normal.

  • Page 21: Part 8: Technical Specifications

    PART 8: TECHNICAL SPECIFICATIONS Model: PMD 17 BiX Nominal voltage: 230 V~50 Hz Nominal absorbed input voltage (microwave): 1050 W Nominal output power (microwave): 700 W Nominal input power (grill): 1000 W Oven capacity: 17 litres Turntable diameter: Ø245 mm External dimensions: 594×345×388 mm...
  • Page 22 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
