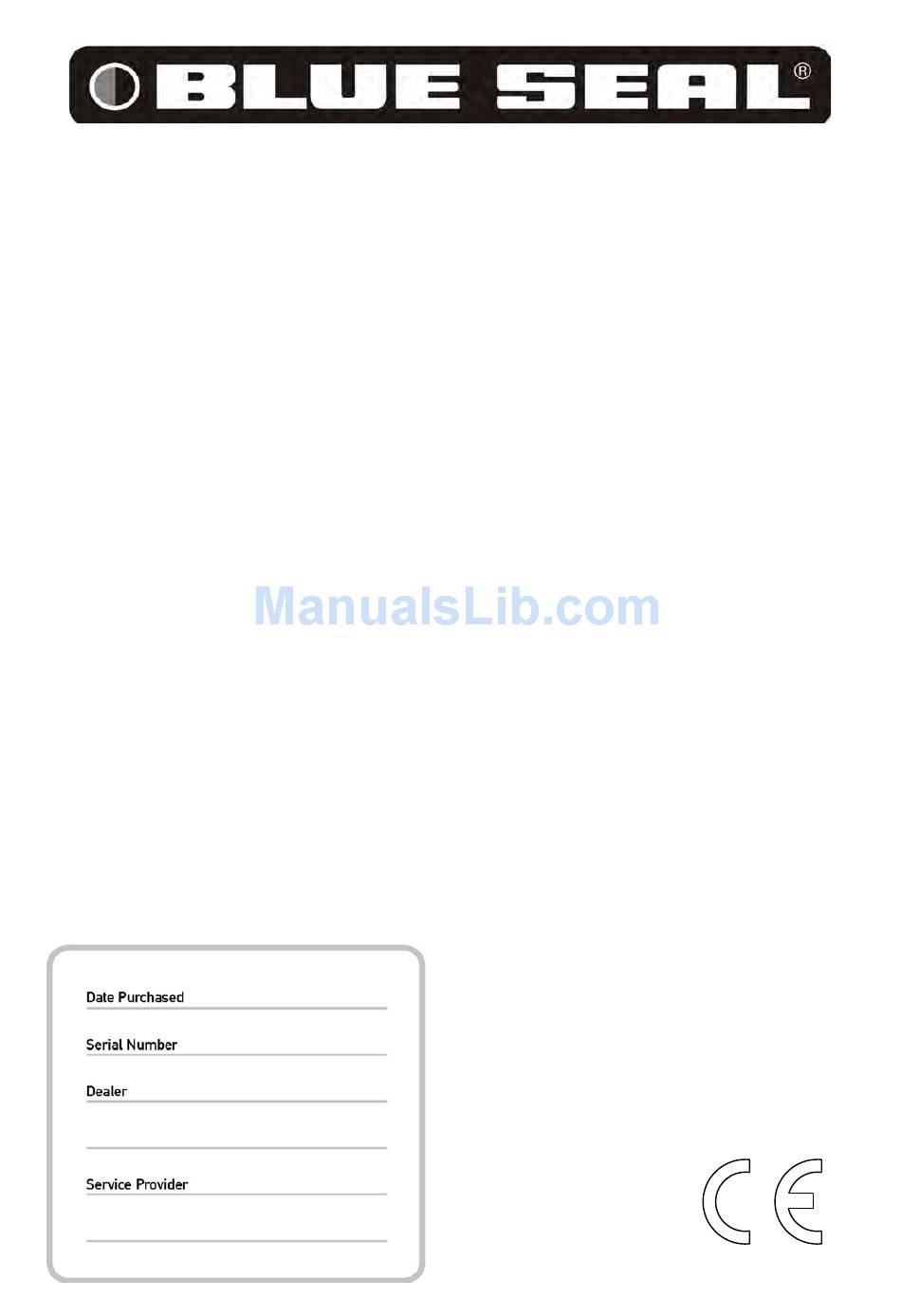

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS RANGE STATIC OVEN G 7 5 0 - 6 For use in GB &...
- Page 2 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
-
Page 3: Table Of Contents
Contents List Blue Seal Gas Static Oven Range G750-6 Gas Range Static Oven - 750mm wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions ....................4 Installation ....................5... -
Page 4: Introduction
We are confident that you will be delighted with your BLUE SEAL GAS RANGE STATIC OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal appliance, there are two important things you can Firstly: Please read the instruction book carefully and follow directions given. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification G750-6 Gas Range Static Oven (6 Open Burners + Oven). General A heavy duty, general purpose gas range created for compact modular kitchens. It has a high option Cook Top / Griddle arrangement and is available on industrial adjustable feet or on robust rollers. -
Page 6: Dimensions
Dimensions G750-6... -
Page 7: Installation
Blue Seal Gas Range Static Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 8: Clearances
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Blue Seal Ranges do not require an electrical connection, as they function totally on the gas supply only. It is essential that gas supply is correct for appliance being installed and that adequate supply pressure and volume are available. -
Page 9: Commissioning
Installation NOTE: Gas pressure regulator provided with this appliance is for use with Natural Gas as per ‘Gas Conversion Section’ in this manual. Regulator connections are " BSP female. Connection to the appliance is " BSP male. (Refer to ‘Specifications’ section for gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line. -
Page 10: Operation
/ operator. Blue Seal appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operating practices can reduce the life of the appliance and produce a poor quality product. -
Page 11: Open Burners
Operation Open Burners NOTE: Only Cooking Pans Ø120mm to Ø380mm are suitable for use on open burners. Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled. -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance Before Commencing Cleaning Caution Always turn off the gas supply to the appliance before commencing cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. NOTE: ... -
Page 13: Stainless Steel Surfaces
Cleaning and Maintenance Stainless Steel Surfaces Oven Interior Cleaning 1. Do not use wire brushes, steel wool or other NOTE: Do not use cleaning agents containing abrasive materials to clean oven interior. bleach, abrasives or caustic chemicals as these will stain and damage the stainless 2. -
Page 14: Fault Finding
Fault Finding This section provides an easy reference guide to more common problems that may occur during operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers most common problems reported, you may encounter a problem not covered in this section. -
Page 15: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... - Page 16 Gas Conversion and Specifications Static Oven Carry out the following:- Open oven doors and remove the oven racks and crumb tray. Remove the spark electrode from mounting bracket (for access purposes only). Disconnect gas supply tube from the main burner. ...
-
Page 17: Gas Specifications
Gas Conversion and Specifications Gas Connection Cap Nut - NAT Gas Only. Pressure Adjusting Screw Install the Nat Gas regulator supplied, in the gas supply line to the appliance. NOTE: Gas regulator supplied is a non-convertible regulator, but it’s outlet pressure can be adjusted at the pressure adjusting screw for NAT Gas Only. -
Page 18: Replacement Parts List
Replacement Parts Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 19 Gas Conversion and Specifications Gas Regulators Gas Regulators Gas Type Part No. Description Nat. Gas 238144 Regulator ¾” BSP - RV48LM 6” Nat. Gas Conversion Kits Gas Type to Convert to Models Nat. Gas (UK) Propane (UK) G750-6 238010 238009...
