G1100 TURBOFAN OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blue Seal G1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blue Seal Blue Seal G1100

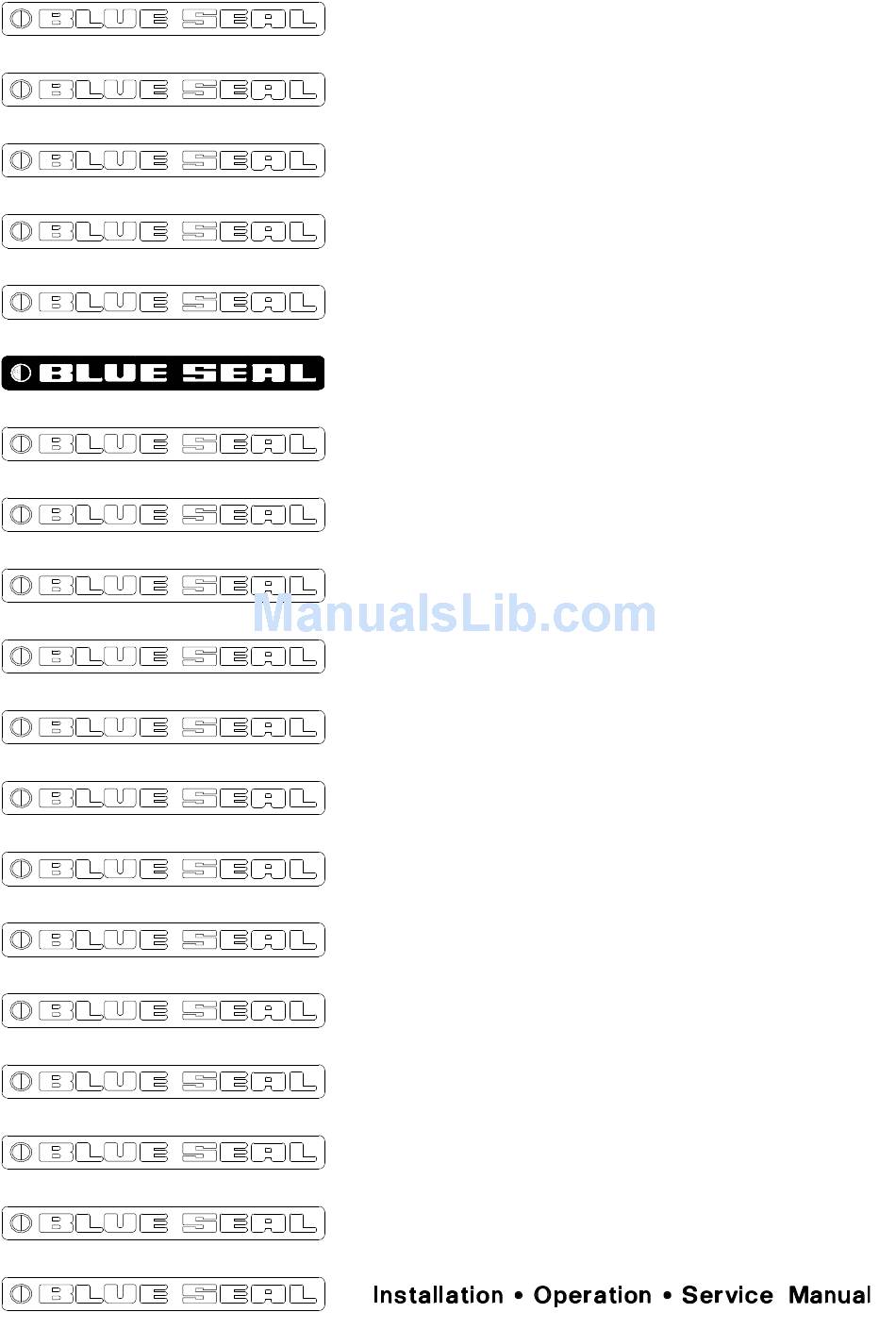

  • Page 1 G1100 TURBOFAN OVEN...
  • Page 2 The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing by the manufacturer. In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and design without prior notice.
  • Page 3: Table Of Contents

    G1100 TURBOFAN OVEN CONTENTS PAGE INTRODUCTION SPECIFICATION INSTALLATION DOUBLE UNITS OPERATION - OVEN TEMP - ROAST 'N HOLD - INSTANT HOLD - WATER - LIGHTS - COOKING GUIDE - BAKING - BAKING GUIDE - ROASTING - ROASTING GUIDE CLEANING FAULT DIAGNOSIS SERVICING - GAS CONVERSION - BURNERS...
  • Page 5: Introduction

    INTRODUCTION We are confident that you will be delighted with your TURBOFAN OVEN, and it will become the most valued appliance in your kitchen. Your new oven may seem very complex and confusing at first glance. To ensure you receive the most benefit from your new turbofan, there are two important things you can Firstly Please read the instruction book carefully and follow the directions given.
  • Page 6: Specification

    SPECIFICATION NOMINAL HOURLY GAS CONSUMPTION Natural Gas 73MJ/hr LP Gas (Propane / Butane) 73MJ/hr Town Gas 73MJ/hr GAS PRESSURE Min Supply Max Supply Operating Pressure Natural Gas 1.13kPa 5.0kPa 0.90kPa LP Gas (Propane / Butane) 2.75kPa 5.0kPa 2.50kPa Town Gas 0.75kPa 2.0kPa 0.16kPa...
  • Page 7 SPECIFICATION G1100 1005 Front Side Plan...
  • Page 8 SPECIFICATION G1100 - 2 1005 Front Side Plan...
  • Page 9: Installation

    INSTALLATION This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. Australia: AS5601 / AG601 - Gas Installations. New Zealand: NZS 5261 - Gas Installations. Australia/NZ AS / NZS 3000 - Wiring Rules.
  • Page 10 INSTALLATION with as few tees and elbows as possible to give maximum supply volume. An accessible shut off valve must be fitted on the supply line before the connection joint. A suitable jointing compound which resists the breakdown action of LPG must be used on every gas line connection.
  • Page 11: Oven Temp

    OPERATION (AUTO ELECTRIC IGNITION) THIS APPLIANCE IS FOR PROFESSIONAL USE AND IS ONLY TO BE USED BY QUALIFIED PEOPLE Simply switch on the power at the mains switch, the MAINS pilot light is on when power is supplied to the oven. Ignition of the oven burner is automatic when the OVEN CONTROL is turned to the required temperature.
  • Page 12: Cooking Guide

    OPERATION COOKING GUIDE This BLUE SEAL TURBOFAN oven will cook a greater quantity of food faster, at a lower temperature and more evenly than an ordinary oven. As the oven opening is large and because loading to capacity takes longer than normal ovens, the temperature will drop during the loading operation.
  • Page 13: Roasting

    OPERATION ROASTING The hot air circulating in the oven reduces moisture loss and shrinkage. Turbofan roasting times are reduced by approximately 10 mins per pound. The ROAST'N HOLD system will automatically cook food for a set time, then hold the oven at a preset temperature indefinitely to maintain food at serving temperature after cooking has been completed.
  • Page 14: Cleaning

    CLEANING CAUTION ALWAYS TURN THE POWER SUPPLY OFF AT THE WALL SWITCH BEFORE CLEANING THIS UNIT IS NOT WATER PROOF. DO NOT USE WATER JET SPRAY TO CLEAN INTERIOR OR EXTERIOR OF THIS UNIT. With the enamelled interiors, this oven is designed to be as maintenance free as possible.
  • Page 15: Fault Diagnosis

    FAULT DIAGNOSIS FAULT POSSIBLE CAUSE REMEDY THE OVEN DOES NOT The mains isolating switch on the Turn on. OPERATE / START wall, circuit breaker or fuses are “off” at the power board. The power switch on the oven is Turn on switch. Power indicator off.
  • Page 16: Servicing

    SERVICING GAS CONVERSION This product is suitable for use on Natural or LPG gases. To convert from one gas type to another the following steps must be taken: Ensure electrical and gas supplies are turned ‘Off’. Remove racks, side racks and fan baffle. Unscrew 4 large screws along bottom of rear oven wall.
  • Page 17: Electrical

    SERVICING BURNER REPLACEMENT To replace either main burner or the pilot cross tube burner follow steps listed under GAS CONVERSION until the point is reached when the burner can be replaced. Always ensure burners are correctly fitted over injectors. ELECTRICAL Always ensure oven is disconnected from mains supply MOTOR AND FAN ASSEMBLY REPLACEMENT Ensure the oven is disconnected from the mains.
  • Page 18 SERVICING To remove and replace electrode assy, remove the screw holding the electrode positioning bracket to the housing on the inside of the oven. The electrode assy can then be drawn out of the oven from the R/H side after removing the two screws securing the mounting bracket to the insulation panel.
  • Page 19 SERVICING DOOR ADJUSTMENTS In the event of the doors not closing properly i.e. the RH door not closing slightly ahead of the LH, proceed as follows to adjust. Remove bottom shroud and striker plate at front base of the oven, secured by 4 screws on top face and one screw at either side, pull the shroud forward until it is clear.
  • Page 20: Spares

    SPARE PARTS The supplier will be able to offer quicker service if parts are ordered by their correct name and part number. If the part is not in the list below, please quote the model and serial number and a description of the part required. NAME PART NO.
  • Page 21: Spare Parts

    SPARE PARTS NAME PART NO. Oven Oven Base - without Drain Hole 011036 Oven Rack 017824 LH Oven Rack Support 017822 RH Oven Rack Support 017823 Fan Baffle 004096 Phial Guard 017961 Ceramic Tile 013555 Fan Puller (spares only) 016800 Doors Glass Pane 002137...
  • Page 22: Double Unit Assembly

    STACKING ASSEMBLY -18-...
  • Page 23: Circuit Schematic

    CIRCUIT SCHEMATIC -19-...
