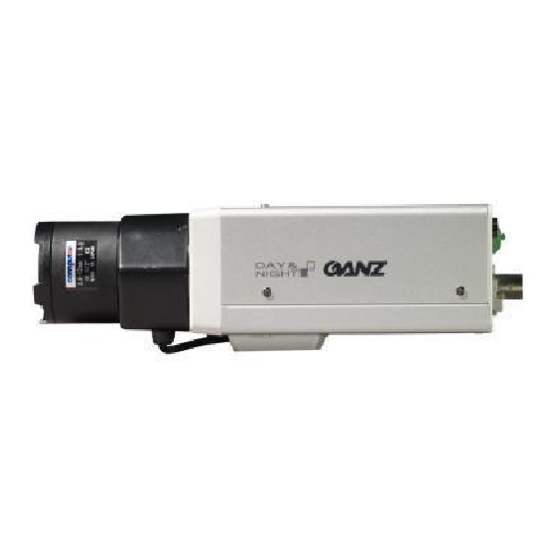

Color Day/Night Camera
WITH
Wide Dynamic Range

Advertisement

loading
Need help?

Need help?

Do you have a question about the YCX-05 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ganz YCX-05 SERIES

Summary of Contents for Ganz YCX-05 SERIES

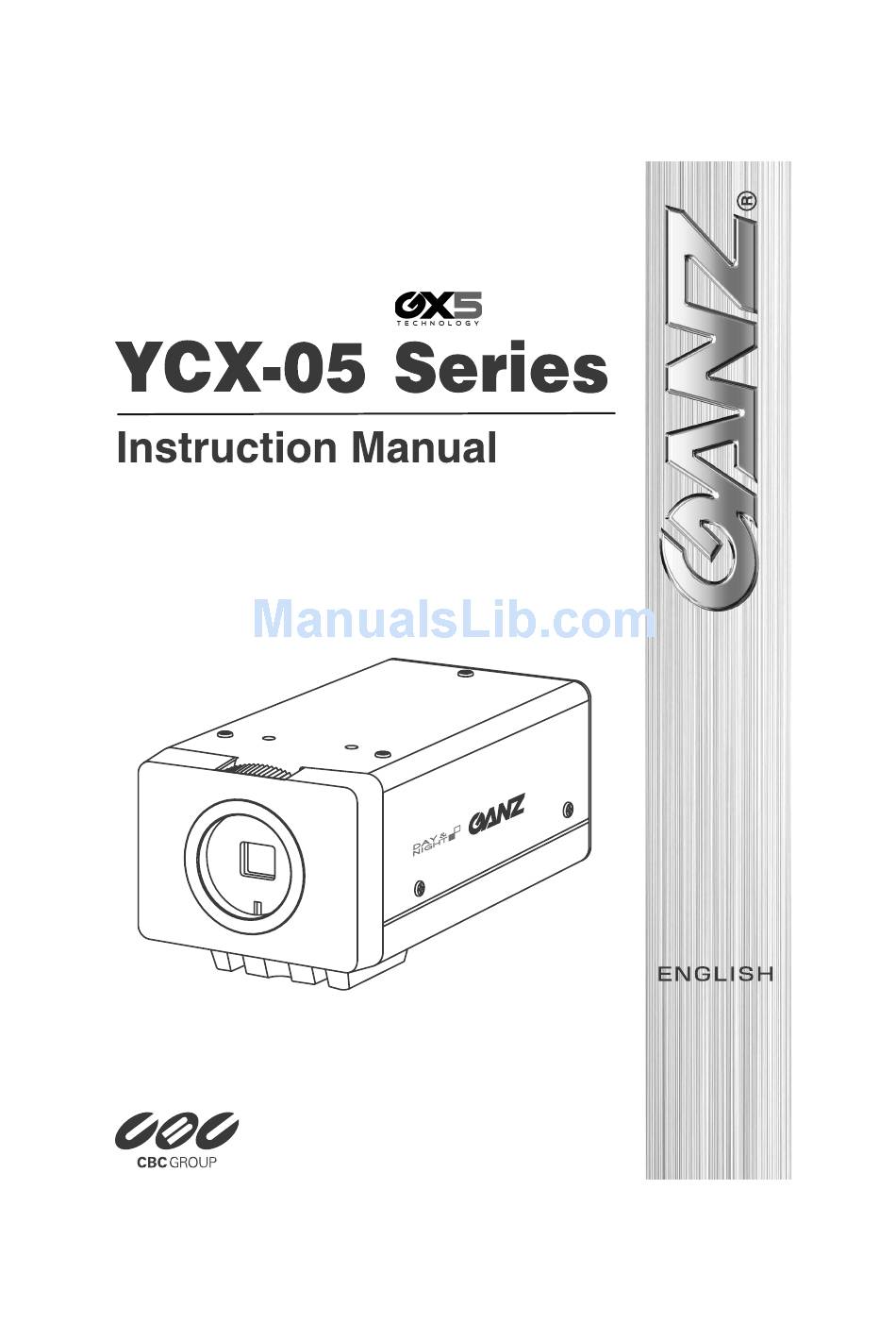

  • Page 1 Color Day/Night Camera WITH Wide Dynamic Range...
  • Page 2 Thank you for your purchase of this product. Before operating this product, please read this instruction manual carefully. After you have read this manual, store it in a safe place for future reference. CONTENTS PRODUCT FEATURES / SAFETY PRECAUTIONS -------------------------------------------------------------------- EG-2 PART NAMES AND FUNCTIONS ------------------------------------------------------------------------------------------- EG-4 CAMERA MOUNTING / EXTERNAL DIMENSIONS / MODEL DESCRIPTION --------------------------------- EG-6 SPECIFICATIONS --------------------------------------------------------------------------------------------------------------- EG-7...
  • Page 3 This symbol indicates that there is a possibility of injury or damage to equipment. (1) Do not attempt to aim the camera at the sun or other extremely bright objects that cause smear to appear irrespective of whether the camera is operating or not. This can damage the CCD (Charge Coupled De- vice).
  • Page 4 PART NAMES AND FUNCTIONS Flange back adjustment wheel If the focus needs to be adjusted after the lens has been mounted, loosen the flange Menu Operation Switch back locking screw ( ) and rotate the adjust- ment wheel to adjust. •...
  • Page 5 Easy focus adjustment B/W Fix terminal/Mode Selection terminal Make sure to adjust focus in a bright light envi- This terminal can be used as a B/W Fix ter- ronment. With the OSD screen not displayed, minal and also as a Mode Selection terminal activate the focus adjustment screen by press- that enables the dynamic switching of OSD ing and holding down the Menu Operation...
  • Page 6 CAMERA MOUNTING The camera can be attached to a Moving the tripod set Bottom attachment Top attachment tripod, fixer or other mounting de- base plate vice from either the top or bottom side by using the mounting screw holes (1/4-inch, 20 UNC) of the tripod set base plate.
  • Page 7 SPECIFICATIONS EDR Type Digital Day/Night model True Day/Night model Model No. YCX-05 YCX-05N TV system NTSC Scanning system 2:1 Interlace Image sensor 1/3-type Interline transfer CCD Effective pixels 976 (H) x 494 (V) Scanning frequency 15.734kHz (H) / 59.94Hz (V) Video output 1.0V (p-p) / 75 Horizontal resolution...
  • Page 8 WDR type Digital Day/Night model True Day/Night model Model No. YCX-05W YCX-05WN TV system NTSC Scanning system 2:1 Interlace Image sensor 1/3-type Interline transfer CCD Effective pixels 976 (H) x 494 (V) Scanning frequency 15.734kHz (H)/59.94Hz (V) Video output 1.0V (p-p)/75 Horizontal resolution 700 TVL Min.
