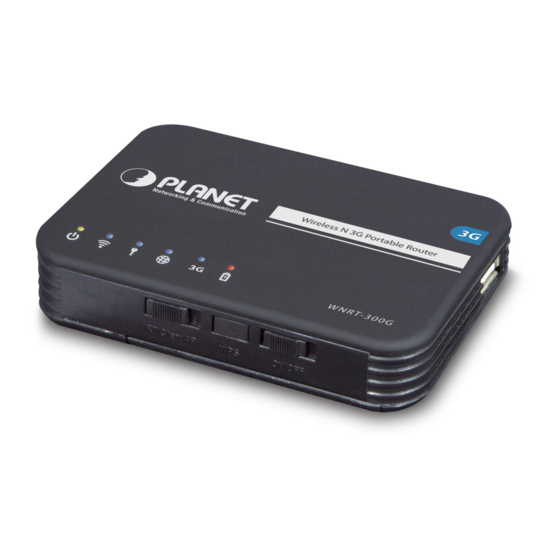

3G / 802.11n Wireless Portable Router
WNRT-300G
Quick Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the WNRT-300G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet WNRT-300G

Summary of Contents for Planet WNRT-300G

  • Page 1 3G / 802.11n Wireless Portable Router WNRT-300G Quick Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ..........3 2. Physical Introduction ..........4 3. Hardware Installation ..........5 4. Web UI Configuration .......... 10 5. Further Information ..........12...

  • Page 3: Package Contents

    1. Package Contents Thank you for choosing PLANET WNRT-300G, the most convenient 3G wireless portable router. Before installing the router, please verify the contents inside the package box. Portable Router Quick Guide CD-ROM Power Adapter USB Cable Ethernet Cable Li-ion Battery If there is any item missed or damaged, please contact the seller immediately.

  • Page 4: Physical Introduction

    2. Physical Introduction Top Panel Description Power Battery Wireless Connection 3G Connection WAN/LAN Front Panel Description The Switch of Router Power Switch AP, and Client Modes WPS Button Rear Panel Description Power Connector 10/100Mbps WAN/LAN Port 5V DC Input Reset Button Side Panel Description USB Port for 3G Modem...

  • Page 5: Hardware Installation

    LED will be lit up. When the battery is fully charged, the LED will be off. If you will use the WNRT-300G powered by AC power supply for a long time, please remove the battery from the slot and keep Note it of full power in a cool and dry place.
  • Page 6 WNRT-300G. RT/Client/AP ON/OFF Step 3: Please follow the figure below to connect the Cable/xDSL Modem to the RJ-45 port of WNRT-300G or connect the 3G dongle to the USB port of WNRT-300G. Router Mode WNRT-300G Internet Smart Phone...
  • Page 7 Step 4: Please use your PC to site survey the wireless signal of WNRT-300G, and connect your PC with it wirelessly. *Default SSID: default *Default Wireless Security: No Security 1. When the WNRT-300G is at Router Mode, the only RJ-45 port will act as a WAN port.
  • Page 8 2. After clicking Connect button, If you cannot obtain an IP address automatically from WNRT-300G Router Mode, please follow procedures below configure network connection. Step 1. Click “Start” button located at lower-left corner of the screen. Step 2. Click “Control Panel”.

  • Page 10: Web Ui Configuration

    4. W eb UI Configuration Default IP Address: 192.168.1.1 Default Username: admin Default Password: admin Step 1: Open the Web browser and enter the default IP address http://192.168.1.1 The default username and password are both “admin”. Then click OK button to continue.
  • Page 11 Step 2: When you enter into the Web User Interface, the first screen appears is Setup Wizard. Click Next>> button to continue. Step 3: Please select the corresponding WAN Access Type of the Internet connection. After the related configuration is done, click Finished button to reboot and make the settings take effect.

  • Page 12: Further Information

    5. Further Information The above introductions are simple installations and configurations for WNRT-300G. For further configurations of WAN, LAN, Wireless Security, Firewall, Routing, Port Forwarding, DMZ, and DDNS etc, please refer to the user’s manual in the CD. If you have further questions, please contact the local dealer or distributor where you purchased this product.
