Hardware Setup

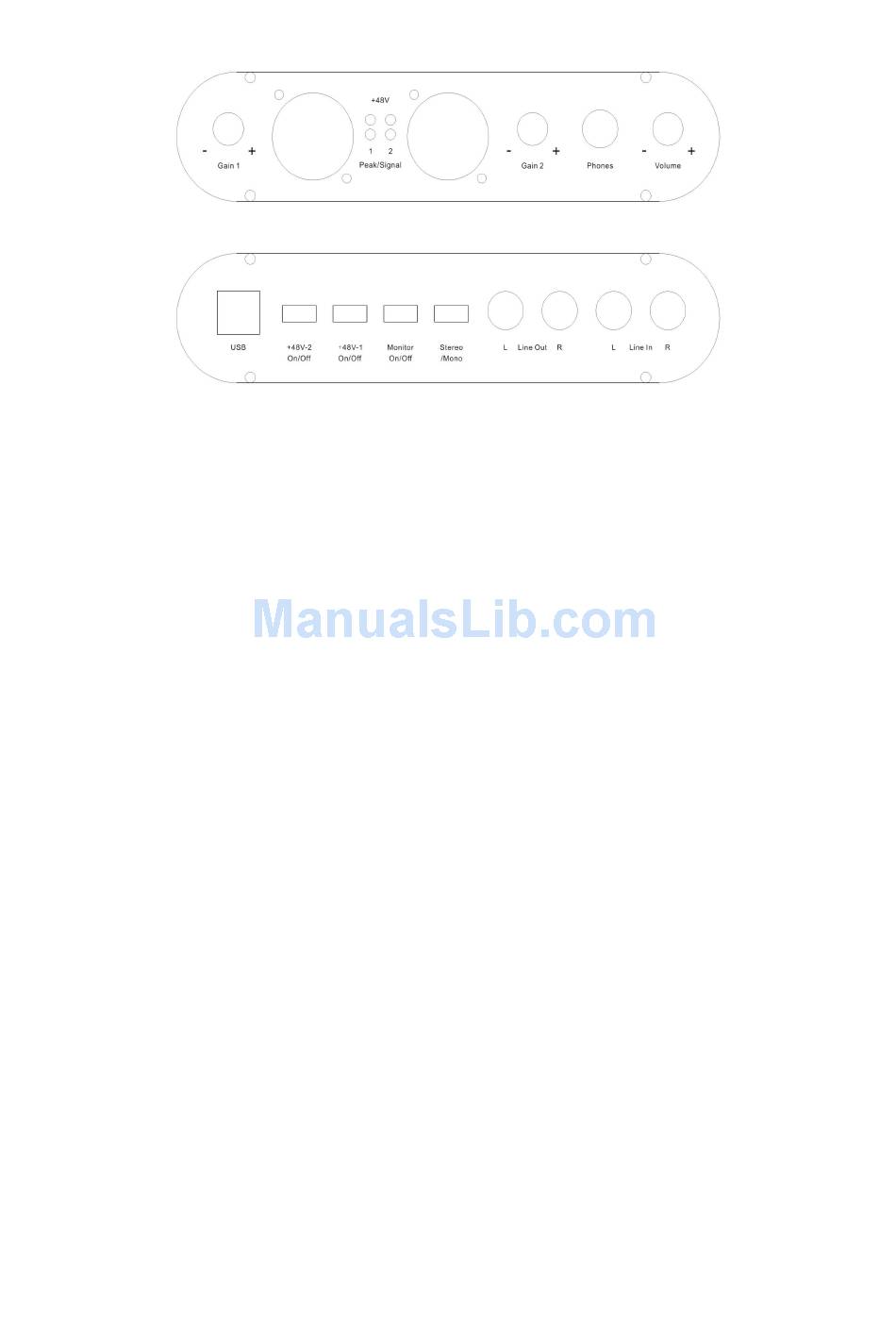

Front panel

2 x XLR MIC and Instrument Input

This XLR/jack combo balanced connectors accepts an microphone level signal with a XLR jack or
in the middle a TRS jack. Beside the MIC/TRS combo connectors there are 2 LEDs to monitor the
signal and peak levels.
2 x MIC level control
This level controllers regulates the level of the signals going from the MIC input.
Headphone Output Jack
This stereo jack plays back outputs 1 and 2 through the Left and Right speakers of your
headphones.
Headphone and Line out output level control
This level control regulates the level of the output signal for the headphone amp and the Line out.
Rear panel

USB Jack

This jack connects the Audiolink to your computer, using a USB 1.1 (or higher) connection.
Mono/Stereo select
Switch to select between mono and stereo input.
+48V Phantom power switch
Switch one of them or both to select between Microphones with or without phantom power
(dynamic and condensator microphone).
LINE Output (stereo)
These unbalanced RCA output the signal, which is output from your computer and should be
connected to a pair of powered speakers, a mixer or a stereo receiver.
