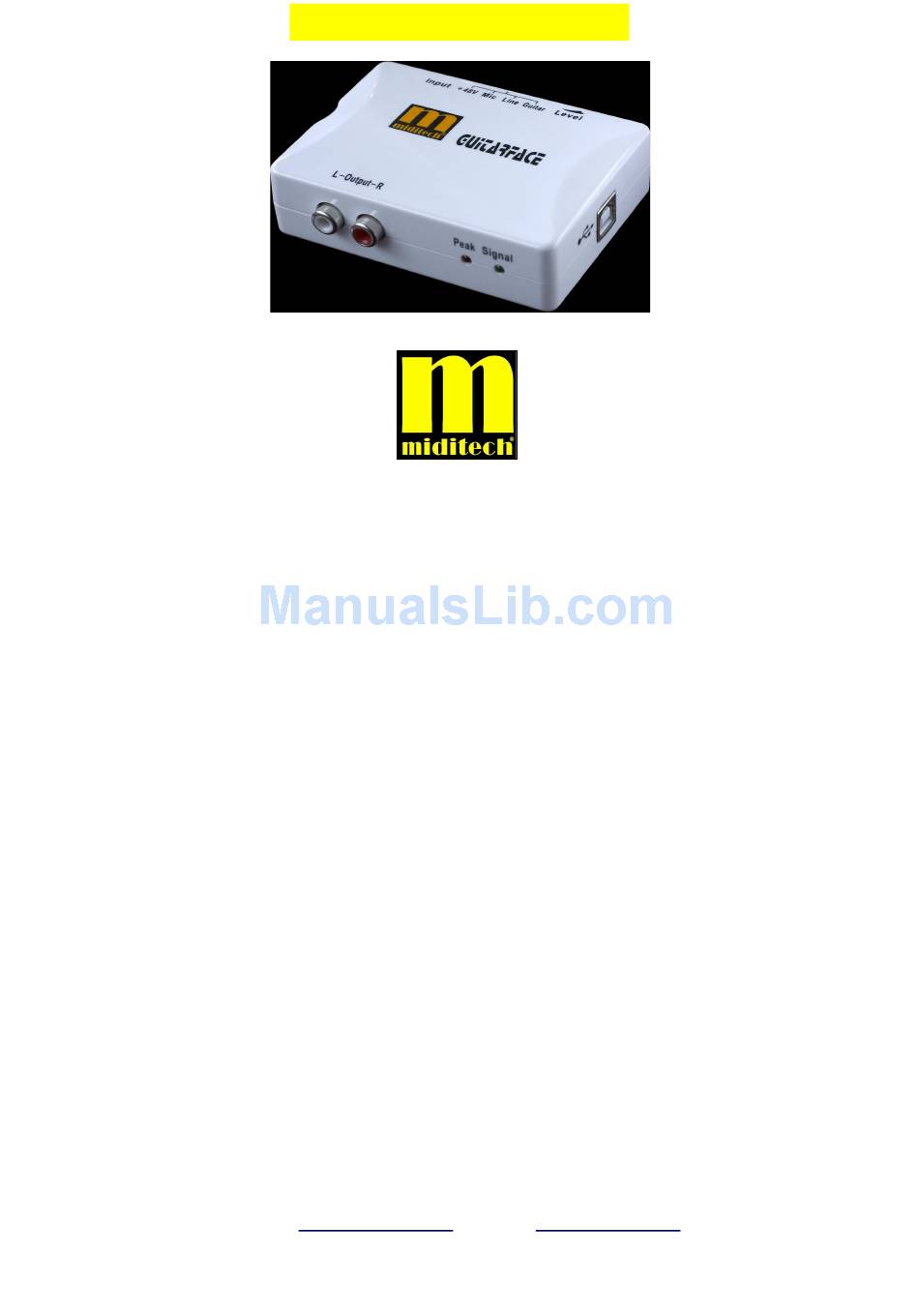

Miditech Guitarface USB
"Class Compliant" USB Audio Interface
(WinXP/Vista no drivers necessary)
16 Bit/ 48 kHz resolution LINE stereo interface
HI-Z instrument preamp
MIC preamp with 48V phantom power
Signal and peak indicator LEDs
Adjustable stereo headphone output
Full duplex with compatible recording software
USB powered
Incl. Magix Samplitude SE and IK Multimedia Amplitube 2 Duo
Typical applications:
LINE, instruments and MIC recordings
Low latency playing of VST instruments
OWNER`S MANUAL
eMail:
info@miditech.de
Internet:
www.miditech.de
Advertisement
Table of Contents
Related Manuals for Miditech Guitarface
Summary of Contents for Miditech Guitarface
- Page 1 Miditech Guitarface USB "Class Compliant" USB Audio Interface (WinXP/Vista no drivers necessary) 16 Bit/ 48 kHz resolution LINE stereo interface HI-Z instrument preamp MIC preamp with 48V phantom power Signal and peak indicator LEDs Adjustable stereo headphone output Full duplex with compatible recording software USB powered Incl.
-
Page 2: Operating Instructions
Phono (RCA) sockets for the output. Connect these LINE out sockets with a regular Phono (RCA) cable to an amplifier. On the front of the Guitarface you find the 3,5mm TRS jack socket of the headphone output, the small wheel adjacent to the socket allows you to adjust volume. All outputs, the LINE out and the headphone out, all provide the same mix. - Page 3 Connecting the Guitarface to a computer is very easy! Simply connect your Guitarface, with the included USB cable, to a free USB port on your computer. When the Guitarface is attached the green LED lights up briefly to signal a good power supply to the Guitarface. The installation under Windows will then take place automatically, a few seconds after connecting to your computer- system it will find a "USB Audio Codec"...
- Page 4 „audio set-up“. If you have installed an ASIO driver, you can adjust this here as a "record and play“ device - please choose the driver for Guitarface. Below this the actual latency time will be displayed after selecting the driver, also, by clicking the button „Attitudes“ you can adjust the buffer size and the latency time of the driver itself.
- Page 5 “settings” and “audio setup” menu. Here you can adjust the sample buffers, which has direct influence to the latency times of the Guitarface. Choose a value as low as possible, if you adjust too low you hear interference noises, set the buffer and latency time of the driver just above the noise threshold.
