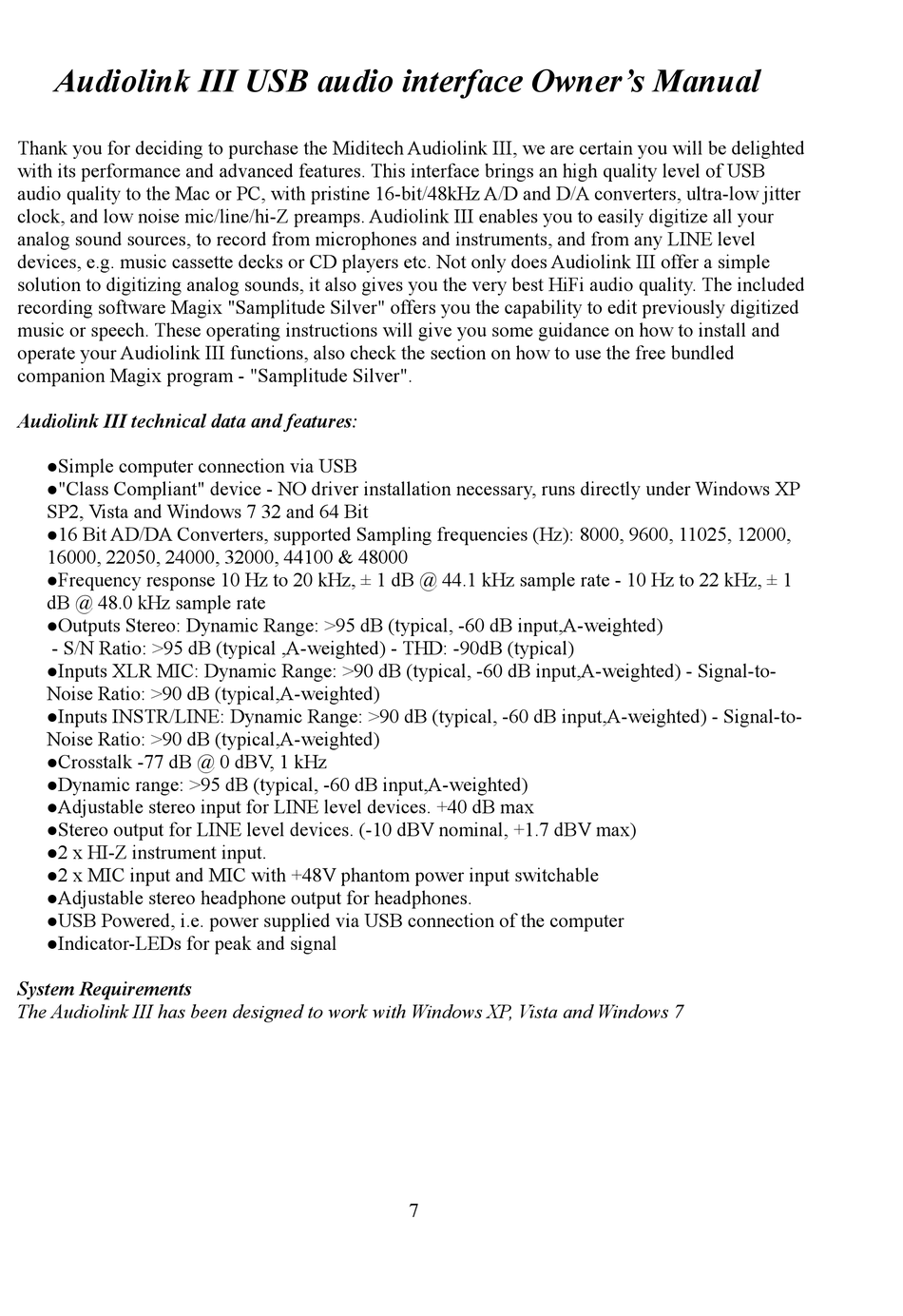

Audiolink III USB audio interface Owner's Manual
Thank you for deciding to purchase the Miditech Audiolink III, we are certain you will be delighted
with its performance and advanced features. This interface brings an high quality level of USB
audio quality to the Mac or PC, with pristine 16-bit/48kHz A/D and D/A converters, ultra-low jitter
clock, and low noise mic/line/hi-Z preamps. Audiolink III enables you to easily digitize all your
analog sound sources, to record from microphones and instruments, and from any LINE level
devices, e.g. music cassette decks or CD players etc. Not only does Audiolink III offer a simple
solution to digitizing analog sounds, it also gives you the very best HiFi audio quality. The included
recording software Magix "Samplitude Silver" offers you the capability to edit previously digitized
music or speech. These operating instructions will give you some guidance on how to install and
operate your Audiolink III functions, also check the section on how to use the free bundled
companion Magix program - "Samplitude Silver".

Audiolink III technical data and features:

Simple computer connection via USB

"Class Compliant" device - NO driver installation necessary, runs directly under Windows XP

SP2, Vista and Windows 7 32 and 64 Bit
16 Bit AD/DA Converters, supported Sampling frequencies (Hz): 8000, 9600, 11025, 12000,

16000, 22050, 24000, 32000, 44100 & 48000
Frequency response 10 Hz to 20 kHz, ± 1 dB @ 44.1 kHz sample rate - 10 Hz to 22 kHz, ± 1

dB @ 48.0 kHz sample rate
Outputs Stereo: Dynamic Range: >95 dB (typical, -60 dB input,A-weighted)

- S/N Ratio: >95 dB (typical ,A-weighted) - THD: -90dB (typical)
Inputs XLR MIC: Dynamic Range: >90 dB (typical, -60 dB input,A-weighted) - Signal-to-

Noise Ratio: >90 dB (typical,A-weighted)
Inputs INSTR/LINE: Dynamic Range: >90 dB (typical, -60 dB input,A-weighted) - Signal-to-

Noise Ratio: >90 dB (typical,A-weighted)
Crosstalk -77 dB @ 0 dBV, 1 kHz

Dynamic range: >95 dB (typical, -60 dB input,A-weighted)

Adjustable stereo input for LINE level devices. +40 dB max

Stereo output for LINE level devices. (-10 dBV nominal, +1.7 dBV max)

2 x HI-Z instrument input.

2 x MIC input and MIC with +48V phantom power input switchable

Adjustable stereo headphone output for headphones.

USB Powered, i.e. power supplied via USB connection of the computer

Indicator-LEDs for peak and signal

System Requirements
The Audiolink III has been designed to work with Windows XP, Vista and Windows 7
