Miditech audiolink pro Owner's Manual

"class compliant" usb audio interface
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual

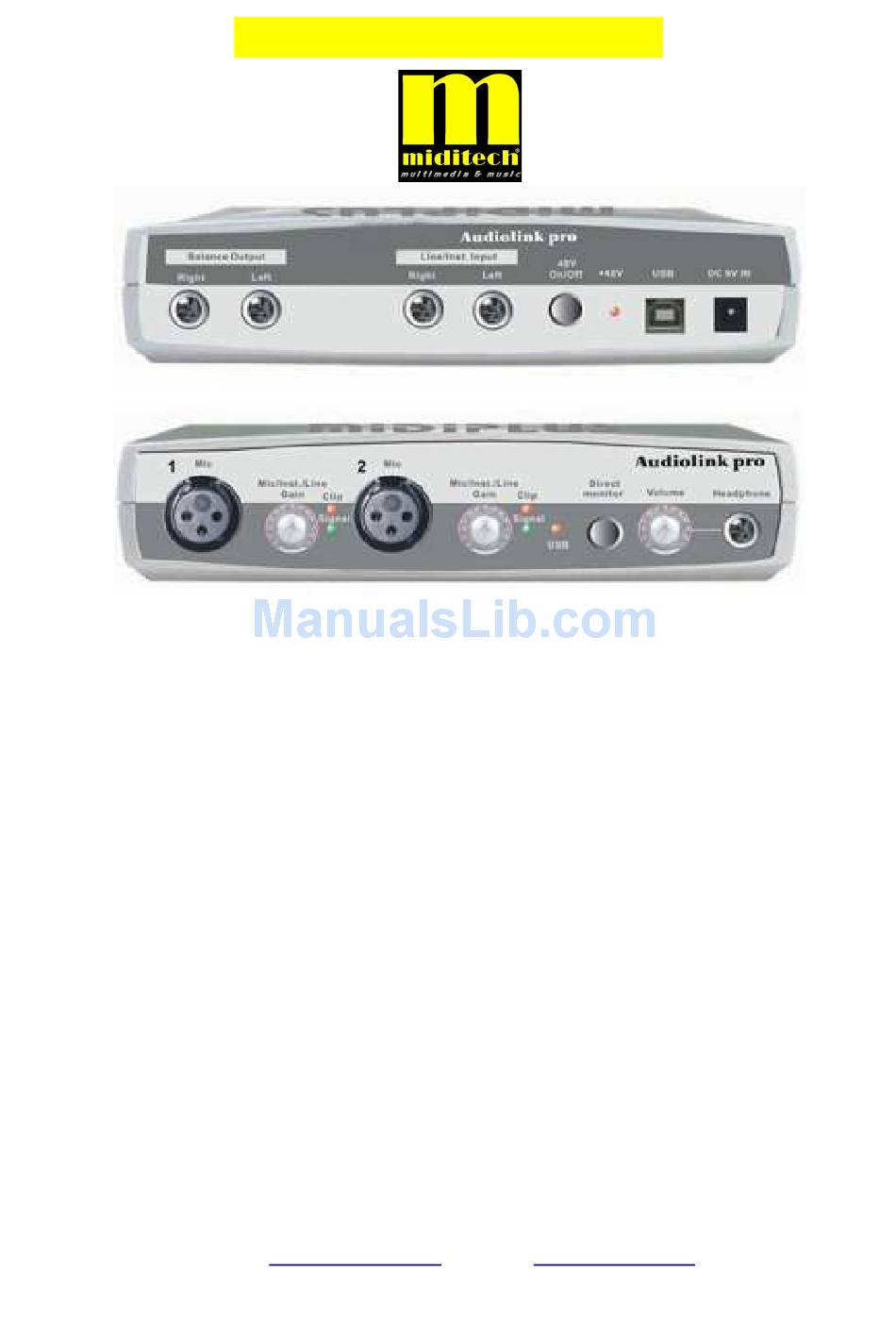

Miditech Audiolink Pro USB
"Class Compliant" USB Audio Interface
(WinXP/Vista no drivers necessary)
24 Bit/48 kHz input resolution, 24 Bit/96 kHz resolution output
LINE in / LINE out stereo interface
2 XLR Mic preamps with 48 V Phantom Power
with gain control
2 HI-Z guitar preamps with gain control
Adjustable stereo headphone output
Full duplex with compatible recording software
USB powered
Includes Magix Samplitude SE
ASIO driver
Typical applications:
Recording from a microphone, instruments and LINE devices,
e.g. cassette, CD-players or mp3-players
Low latency playing of VST instruments
eMail:
info@miditech.de
Internet:
www.miditech.de
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the audiolink pro and is the answer not in the manual?

Questions and answers

Related Manuals for Miditech audiolink pro

Summary of Contents for Miditech audiolink pro

  • Page 1 Miditech Audiolink Pro USB "Class Compliant" USB Audio Interface (WinXP/Vista no drivers necessary) 24 Bit/48 kHz input resolution, 24 Bit/96 kHz resolution output LINE in / LINE out stereo interface 2 XLR Mic preamps with 48 V Phantom Power with gain control...
  • Page 2 LINE level devices, e.g. music cassette decks or CD players etc. Not only does Audiolink Pro offer a simple solution to digitizing analog sounds, it also gives you the very best HiFi audio quality. The included recording software Magix "Samplitude SE"...

  • Page 3: Hardware Setup

    XLR Mic Inputs 1 and 2. 4. Phantom Power LED:This switch lights when phantom power is switched on. 5. USB Jack: This jack connects the Audiolink pro to your computer, using a USB 1.1 (or higher) connection.

  • Page 4: Software Installation

    USB ports on your computer, not through a keyboard connection or USB hub. To connect your Audiolink Pro, find an unused USB port on your computer and connect it to the Audiolink Pro jack with the included USB cable.The computers USB socket will most often be located on a rear panel and will probably be marked with a symbol looking something like the one pictured here.
  • Page 5 8. Your Miditech Audiolink Pro is now ready to use. Control Panel Setup Once setup is complete, you can control most aspects of the Audiolink Pro using its control panel.To launch the control panel in your operating system, check the following instructions:...
  • Page 6 „audio set-up“. If you have installed the ASIO2ks driver, you can adjust this here as a "record and play“ device - please choose the ASIO2ks driver for Audiolink Pro. Below this the actual latency time will be displayed after selecting the driver, also, by clicking the button „Attitudes“...
