Front Cover - Janome DC3018 Service Manual

SERVICE ACCESS (3-2)

FRONT COVER

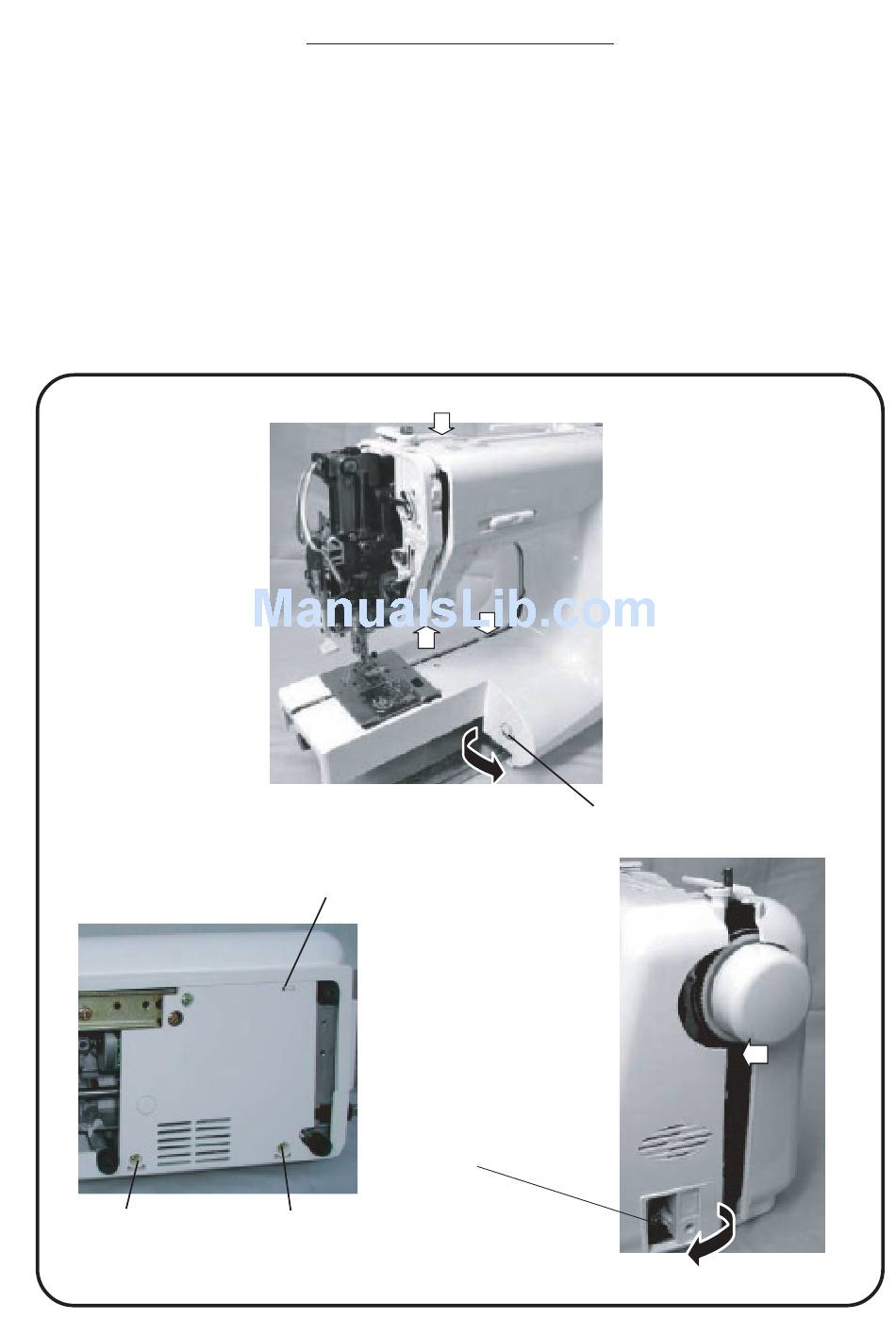

1. UNFASTEN THE FRONT AND REAR COVER HOOKS AND THE BOTTOM SIDE HOOK AS SHOWN.
2. PULL THE FRONT COVER TO CLEAR OF THE FEED BALANCING KNOB.
3. PULL THE FRONT COVER TO CLEAR OF THE MACHINE SOCKET AND REMOVE THE FRONT COVER.
* REMOVE THE SETSCREWS (F) AND (G) ON THE REAR COVER TO FACILITATE CLEARANCE OF THE
FRONT COVER FROM THE MACHINE SOCKET.
FEED BALANCE DIAL KNOB
Hook
MACHINE PLUG
SETSCREW (F)
SETSCREW (G)
