REPLACING THE FUSES
TO REMOVE:
1. REMOVE THE FRONT COVER (SEE PAGE 6~7).
2. REMOVE THE FOUR SETSCREWS AND LIFT OFF THE COVER ON PRINTED CIRCUIT
BOARD "A".
3. REMOVE THE FUSE.(PRY IT OUT WITH A SCREWDRIVER).
TO INSTALL:
4. FOLLOW THE ABOVE PROCEDURE IN REVERSE.
FUSE NO.
F1, F3
F2
NOTE
1. REPLACE THE PRINTED CIRCUIT BOARD "A" IF YOU NOTICE ANY BROWNING, DISCOLORATION,
OR OTHER ABNORMALITIES.
2. ONLY INSTALL FUSES WITH THE CORRECT RATING.
3. IF THE FUSE IS LOOSE, BEND THE FUSE CLIPS INWARD TO SECURE THE FUSE.

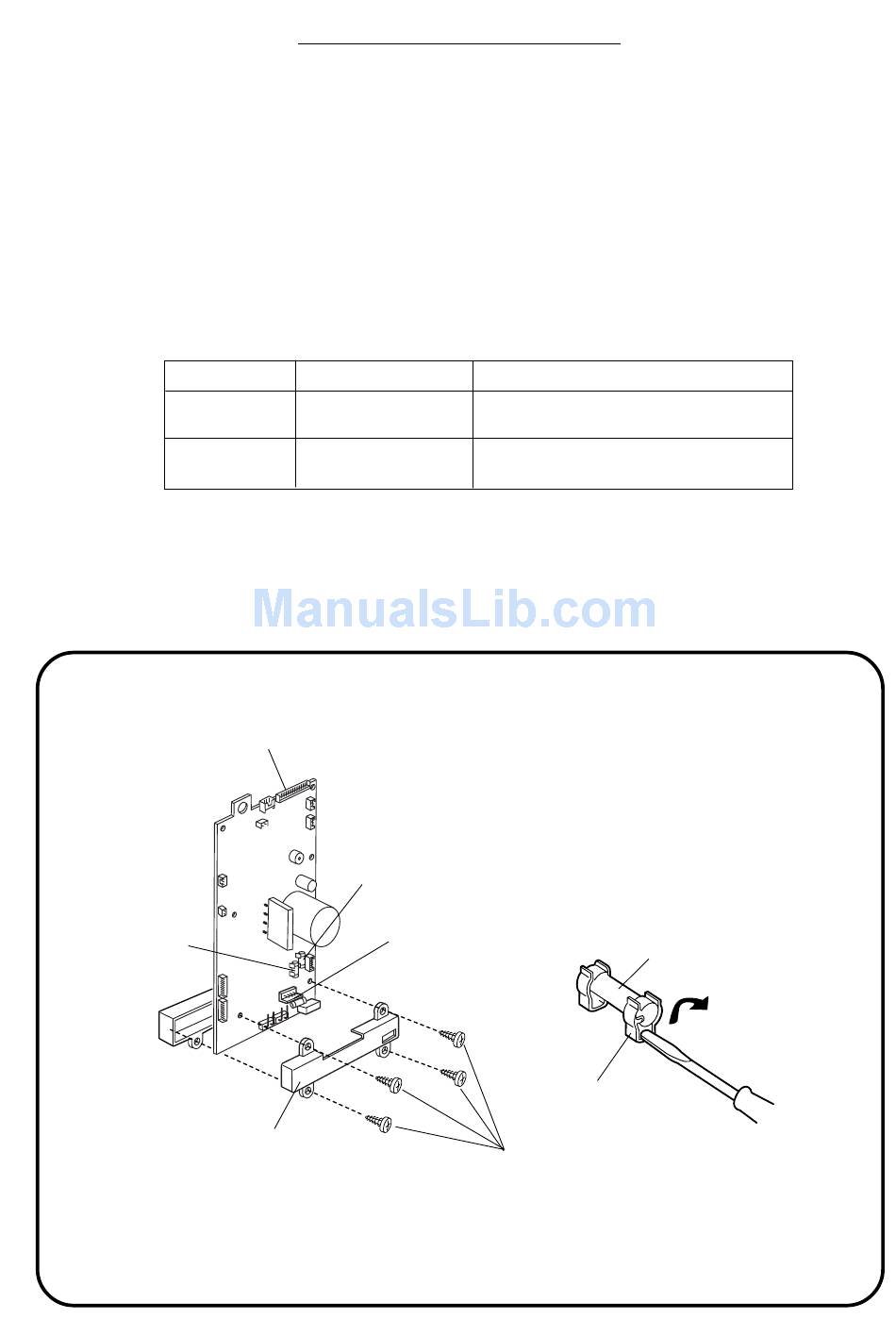

PRINTED CIRCUIT BOARD "A"
F2. AC250V 3.15A
PRINTED CIRCUIT BOARD
"A" CASE
REPLACING THE FUSES
PART NO.
000-144-605
000-182-904
F3. AC250V 2.5A
F1. AC250V 2.5A
24
TYPE/SPECIFICATION
TSD-2.5A-250V
5.2 X 20 MM 2.5 A TIME-LAG FUSE
3.15A-250V
5.2 X20 MM 3.15A TIME-RUG FUSE
FUSE HOLDER
SETSCREWS (4)
FUSE
