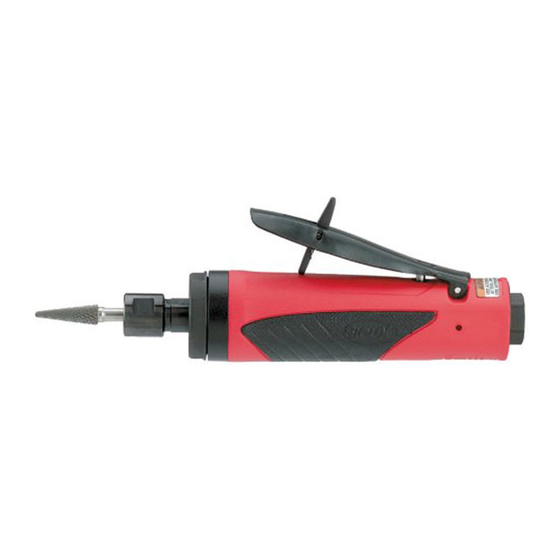

Sioux Tools SDG03S series Instruction Manual

INSTRUCTIONS & PARTS LIST FOR STRAIGHT & EXTENDED DIE GRINDERS
SDG03S, SDG05S, SDG7S, SDG10S, SDGS01S, SDGA1S, SXG05S, & STXG10S SERIES
Read and understand these instructions before operating this tool.
Everyone using, maintaining, changing accessories or working near this tool must read, understand and follow these Safety Instructions!
Sioux power tools may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Tools should be inspected regularly to verify that all original markings and labels are present and legible. Contact Sioux Tools to obtain
replacement labels when necessary.
Die grinders can cause flying particles.
Proper eye protection must be worn at all times by tool user and bystanders.
Flying particles can cause eye injury.
Power tools generate noise.
Ear protection must be worn when tool noise level exceeds 85 dBA. We also recommend that ear protection be worn when the
tool noise level is below 85 dBA. See the tool's information sheet for the noise level.
Appropriate controls to reduce the risk may include actions such as damping materials to prevent work pieces from "ringing" .
Always ensure that the muffler material is in the die grinder. Support the weight of the tool in a stand or balancer whenever
possible. Hold the tool with a light but secure grip. Always hold tightly enough to counteract reaction forces but know that the
risks due to vibration are greater when the grip force is higher.
Prolonged exposure to noise can cause hearing loss.
Power tools vibrate.
Excessive vibration can cause injury. If numbness, tingling, pain or whitening of the skin occurs, stop using tool and consult a
physician. See the tool's information sheet for the vibration level.
Prolonged exposure to vibration can cause injury.
Using this tool can cause the operator to experience discomfort in the hands, arms, shoulders, neck, and other place.
In order to help prevent this, the operator should find a comfortable working positions that maintains secure grip and footing.
If the operator experiences pain, throbbing, aching, tingling, numbness, burning, or stiffness they should contact both the
employer and a physician.
Rotating grinding wheels can cause cuts and abrasions.
Keep hands and other body parts away from grinding wheels to prevent cutting or pinching. Wear protective clothing and gloves to
protect hands. Operators and maintenance personnel should be physically able to handle the bulk, weight and power of the tool.
Contact with rotating grinding wheels can cause injury.
Die grinders present a risk of entanglement.
Keep loose hair away from power tools and accessories. Keep hands away from moving parts of the tool and accessories. Do
not wear jewelry, loose clothing, or neckwear around power tools. Keep work area clear of cleaning rags and all items that could
become entangled with the tool. When using the tool overhead, wear a helmet.
Entanglements can cause injuries.
Grinding operations creates dust.
Ensure that that sparks and debris do not create a hazard. Do not breathe grinding dust. Use approved mask. Risk assessment should
include the potential to disturb existing dust. Direct the exhaust so as to minimize disturbance of dust in a dust-filled environment.
Working with certain materials creates emission of dust and fumes which can cause a potentially explosive environment
Breathing grinding dust can cause injury.
Slips, trips, and falls are major causes of workplace injury.
Be aware that the exhaust from this tool can cause slippery surfaces and the air hose can present a trip hazards.
Proceed with care in unfamiliar surroundings as there can be hidden hazards.
This tool is not insulated for contact with electric power sources.
Do not use near live electric circuits. When drilling into walls, be aware that they may have hidden electric wires.
Electric shock can cause injury.
This tool is not intended for use in a flammable or explosive atmosphere.
Do not use this tool in a flammable or explosive atmosphere.
Explosions and fire can cause injury.
Grinding metals creates sparks that can ignite flammable materials and vapors.
Only grind metals if the area is free of combustible or explosive materials or vapors.
Explosions and fire can cause injury.
Grinding wheels that malfunction or spin off can cause injury.
Overspeeding wheels can explode.
Check the speed of the tool regularly with a tachometer. These checks should be done without any mounted accessories. If the
tachometer reads faster than the rated speed of the tool, discontinue use. Check the speed rating of the accessory or the speed
printed on the wheel. This speed must be greater than the nameplate speed of the grinder and the actual speed of the grinder as
measured with a tachometer. Do not exceed rated operating air pressure.
Exploding wheels can cause injury or death.
250 Snap-on Drive • PO Box 1596 • Murphy, NC 28906 • USA • Phone: 828-835-9765 •www.siouxtools.com
Form ZCE731B
SERIAL "C"
SAVE THESE INSTRUCTIONS!
WARNING
When used improperly power tools can create hazardous situations.
Improperly used power tools can cause injury or death.
DIE GRINDER SAFETY
