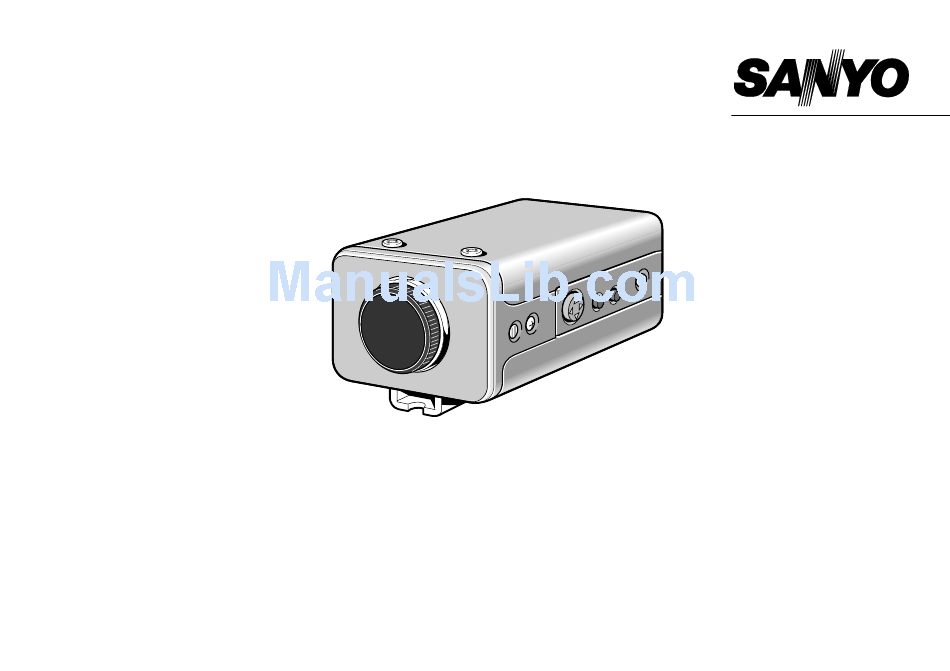

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
COLOUR CCD Camera
CCD-Farbkamera
Caméra CCD COULEUR
About this manual
Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
Über diese Bedienungsanleitung
Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der
Kamera zuerst diese Bedienungsanleitung sorgfältig durch und
bewahren Sie sie zum späteren Nachschlagen auf.
À propos de ce manuel
Avant d'installer et d'utiliser la caméra, veuillez lire ce manuel
attentivement. Gardez-le à portée de main pour toute
référence ultérieure.
VCC-5974P

Advertisement

Table of Contents
loading

Related Manuals for Sanyo VCC-5974P

Summary of Contents for Sanyo VCC-5974P

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL VCC-5974P BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS COLOUR CCD Camera CCD-Farbkamera Caméra CCD COULEUR About this manual À propos de ce manuel Before installing and using the camera, please read this manual Avant d’installer et d’utiliser la caméra, veuillez lire ce manuel carefully.

  • Page 2: Table Of Contents

    Depending on the conditions of use, installation and environment, ACCESSORIES please be sure to make the appropriate settings and adjustments. If you need help with installation and/or settings, please consult your dealer. C mount adaptor (5 mm)............1 pc. The C mount adaptor must be used to be able to install a C mount lens on the camera.

  • Page 3: Precautions

    Disconnect the power greasy smoke or steam, where the dampness may get too high, or cord immediately, and consult your dealer (or a Sanyo Authorized where there is a lot of dust.

  • Page 4: Parts Names

    PARTS NAMES Lens iris output connector (4 pin) This 4-pin connector is used to send the DC control signal and power supply to an auto-iris type lens. Auto white balance push lock button (AWB LOCK) Menu setting button (SET) Connect the camera to the monitor, then press the SET button for about 3 seconds to display the on-screen menu.
  • Page 5 Camera setup section (under the cover) This unit factory settings are as indicated below. These settings are for when using a 1/3 inch CS mount DC (without EE internal amplifier) type lens. However, if due to installation conditions or environment the settings may need to be modified for best results (see "SETTINGS").
  • Page 6 PARTS NAMES Video output connector (VIDEO OUT: BNC type) Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector. External sync composite video signal input connector (VBS IN: BNC type) Connect to this connector the synchronizing signal output from a synchronizing signal device or the composite signal of a video distributor.

  • Page 7: Mounting The Lens

    MOUNTING THE LENS Check the lens mount Do not use a lens if the length “ ” is more than mm. That may damage the camera and prevent proper installation. Installation of a DC type auto-iris lens (sold separately) A 1/3 inch CS mount type lens without EE amplifier circuit that only uses a DC power source. This camera can receive (the A.I.
  • Page 8 MOUNTING THE LENS Installation of a VIDEO type auto-iris lens (sold separately) A 1/2 or 2/3 inch C mount type lens with EE amplifier circuit that uses the video signal and a DC power 2 (A) source. Remove the lens mount cap. Attach the supplied C mount adaptor (A) to the auto-iris lens (B), then install the assembly on the camera.
  • Page 9 Compatible auto-iris lenses 1/3 inch Sanyo DC type lens 1/2 or 2/3 inch VIDEO type lens VCL-CS8LY: Standard angle, f= 8 mm Standard angle, f= 9 mm VCL-CS4LY: Wide angle, f= 4 mm Telephoto angle, f= 12 mm VCL-CS2LY: Ultra-wide angle, f= 2.8 mm...

  • Page 10: Connections

    CONNECTIONS Basic connection for monitoring or recording The peripheral devices (VCR, monitor, lens, etc.) and cables are sold separately. Make the video signal connection between the camera and the monitor or time lapse VCR. Connect the AC adaptor (sold separately) power cord to the 24 V AC input terminals, then plug the AC adaptor to a wall outlet.

  • Page 11: Settings

    SETTINGS The illustration shows the factory default settings for the switches in the camera setup section. Depending on Table A the camera installation location and conditions of use, it may be necessary to select other settings, without 1/50 sec. having to make adjustments. The selected settings can be confirmed using the on-screen menu. If adjustments are required, they can be entered using on-screen adjustment sub-menus (see ADJUSTMENTS, page 16).
  • Page 12 SETTINGS Synchronisation (SYNC) setting The internal synchronisation is set using the SYNC switch (4) in the camera setup section. INT: Initial setting. The initial value cannot be changed. L-L: If the synchronisation setting is necessary, it can be entered in the adjustment sub-menu (see page 16). VBS IN VIDEO OUT •...
  • Page 13 White balance (WB) setting Table B Under normal conditions, the white balance is set to ATW (Auto Tracing White-Balance). However, depending on the camera installation location and conditions of use, the white balance mode can be set using the two WB switches (7 and 8) in the camera setup section (see table B). •...
  • Page 14 SETTINGS • PRESET 2 (Basic setting, see Fig. 2) The windows are regrouped in 2 sections (W1 and 4; and W0, 2 and 3) and the lens iris is set automatically so that the backlight correction is optimum for the section composed of windows W 1 W0=0 and 2.

  • Page 15: Using The On-Screen Menus

    USING THE ON-SCREEN MENUS To display the menu Press the SET button for about 3 seconds. The “MENU FOR ADJUSTMENT” is displayed. (Menu 1) MENU FOR ADJUSTMENT To switch between menus and selection SYNC IRIS When the setting of a switch in the camera setup section is changed, the corresponding sub-menu is WHITE BALANCE displayed.

  • Page 16: Menu Display

    MENU DISPLAY b SYNC ADJUSTMENT ADJUSTMENT FOR VS ADJUSTMENT FOR L-L ADJUSTMENT FOR VBS SW4: LL/INT (PHASE) (H SYNC PHASE) (V SYNC PHASE) (insert VBS signal) H o------z------p 280 o------z------p 280 o------z------p 518 (insert VS signal) SC o------z------p 90 MENU FOR ADJUSTMENT b IRIS ADJUSTMENT SYNC IRIS...

  • Page 17: Adjustments

    ADJUSTMENTS To enter settings or adjustments for the camera it must be connected to a monitor. The settings and CURSOR adjustments are made by ways of on-screen displays. SYNC V sync phase adjustment MENU FOR ADJUSTMENT When using a camera switcher to connect 2 cameras or more to one monitor, there may be a vertical roll of SYNC IRIS the images when switched.
  • Page 18 ADJUSTMENTS VBS phase adjustment Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR CURSOR (d or c) button to select OFF, then press the SET button. Connect a VBS signal source to the VBS IN connector on the camera. The on-screen setting will automatically switch to VBS.
  • Page 19 IRIS Auto-iris level adjustment CURSOR Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR (d or c) button to select OFF, then press the SET button. Set the IRIS switch (10) to AI. The on-screen setting will automatically switch to AI.
  • Page 20 ADJUSTMENTS Setting the light measuring area characteristics (size, position and distribution) for the MANUAL 1 setting CURSOR Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR (d or c) button to select OFF, then press the SET button. Set the BLC switch (9) to ON.
  • Page 21 Press the CURSOR buttons to move (up, down, right, left) the area to the desired position, then press the (POSITION) SET button. The adjustment sub-menu “WINDOW WEIGHTING” will be displayed. Note: The WINDOW WEIGHTING default values are W0 : 1, W1 : 1, W2 : 3, W3 : 3, W4 : 15 (the value for W4 is fixed to 15 and cannot be modified).
  • Page 22 ADJUSTMENTS CURSOR BLC level adjustment for the PRESET 1 setting Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the MENU FOR ADJUSTMENT CURSOR (d or c) button to select OFF, then press the SET button. SYNC IRIS Set the BLC switch (9) to ON.

  • Page 23: White Balance

    WHITE BALANCE PRESET MODE 2 (indoors, fluorescent lighting) setting adjustment CURSOR Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR (d or c) button to select OFF, then press the SET button. MENU FOR ADJUSTMENT Set the WB switches to the PRESET mode (switch 7 to OFF and switch 8 to ON).
  • Page 24 ADJUSTMENTS MANUAL setting adjustment CURSOR Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR (d or c) button to select OFF, then press the SET button. Set the WB switches to the MANUAL mode (both switches 7 and 8 to OFF). MENU FOR ADJUSTMENT The on-screen setting for WHITE BALANCE will automatically switch to MANUAL.
  • Page 25 CURSOR Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR (d or c) button to select OFF, then press the SET button. Set the AGC switch (6) to ON. The on-screen setting for AGC will automatically switch to ON. Press the CURSOR (j or l) button to select the on-screen ON setting (get it flashing), then press the SET button.
  • Page 26 ADJUSTMENTS CAMERA ID CURSOR Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR (d or c) button to select OFF, then press the SET button. Press the CURSOR (j or l) button to select NEXT PAGE (get it flashing), then press the SET button. SHUTTER The second page of the “MENU FOR ADJUSTMENT”...
  • Page 27 When finished entering the camera ID. CAMERA ID SETTING Press the CURSOR (d or c) button to select MENU (get it flashing), then press the SET button to return ABCDEFGHIJKLM to the “MENU FOR ADJUSTMENT” display. NOPQRSTUVWXYZ 0123456789:-p To correct the entered camera ID, repeat steps 2 to 6. MENU When finished.
  • Page 28 ADJUSTMENTS APERTURE CURSOR Press the CURSOR (j or l) button to select the WRITE PROTECT function setting, then press the CURSOR (d or c) button to select OFF, then press the SET button. Press the CURSOR (j or l) button to select NEXT PAGE (get it flashing), then press the SET button. SHUTTER The second page of the “MENU FOR ADJUSTMENT”...

  • Page 29: Troubleshooting

    This camera is a precision instruments and if treated with care, will provide years of satisfactory performance. However, in the event of a problem, the owner is advised not to attempt to make repairs or open the cabinet. Servicing should always be referred to your dealer or Sanyo Authorized Service Centre.

  • Page 30: Specifications

    SPECIFICATIONS Camera: Scaning system : PAL colour TV system (625 TV lines, 50 Electronic shutter : 8 speeds, selectable by switches: field/sec.) (1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.) Interlace : 2:1 interlace : 12.5 mm ± 0.5 mm Flange-back Image device : 1/3 inch solid state image device CCD...
  • Page 31 Dimensions: mm 108.5 99.5 1/4”–20 UNC Features and specifications are subject to change without prior notice or obligations. English...
  • Page 32 SANYO Electric Co., Ltd. 1AC6P1P1698-- Printed in Japan L53P4/XE(0398NI)
