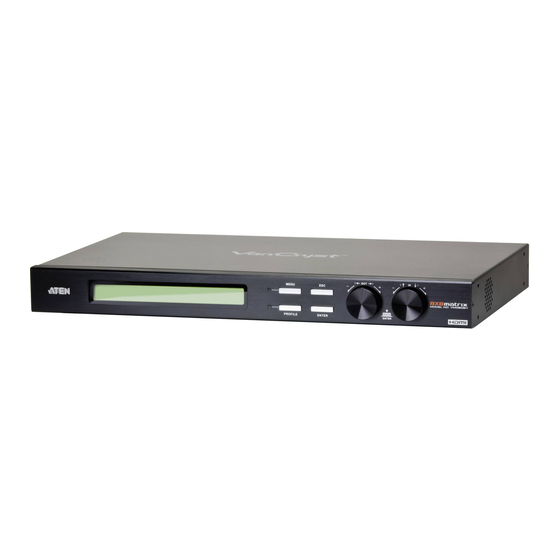

ATEN VM0808H User Manual

8x8 hdmi matrix switch
Hide thumbs Also See for VM0808H:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
8x8 HDMI Matrix Switch
VM0808H
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM0808H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN VM0808H

Summary of Contents for ATEN VM0808H

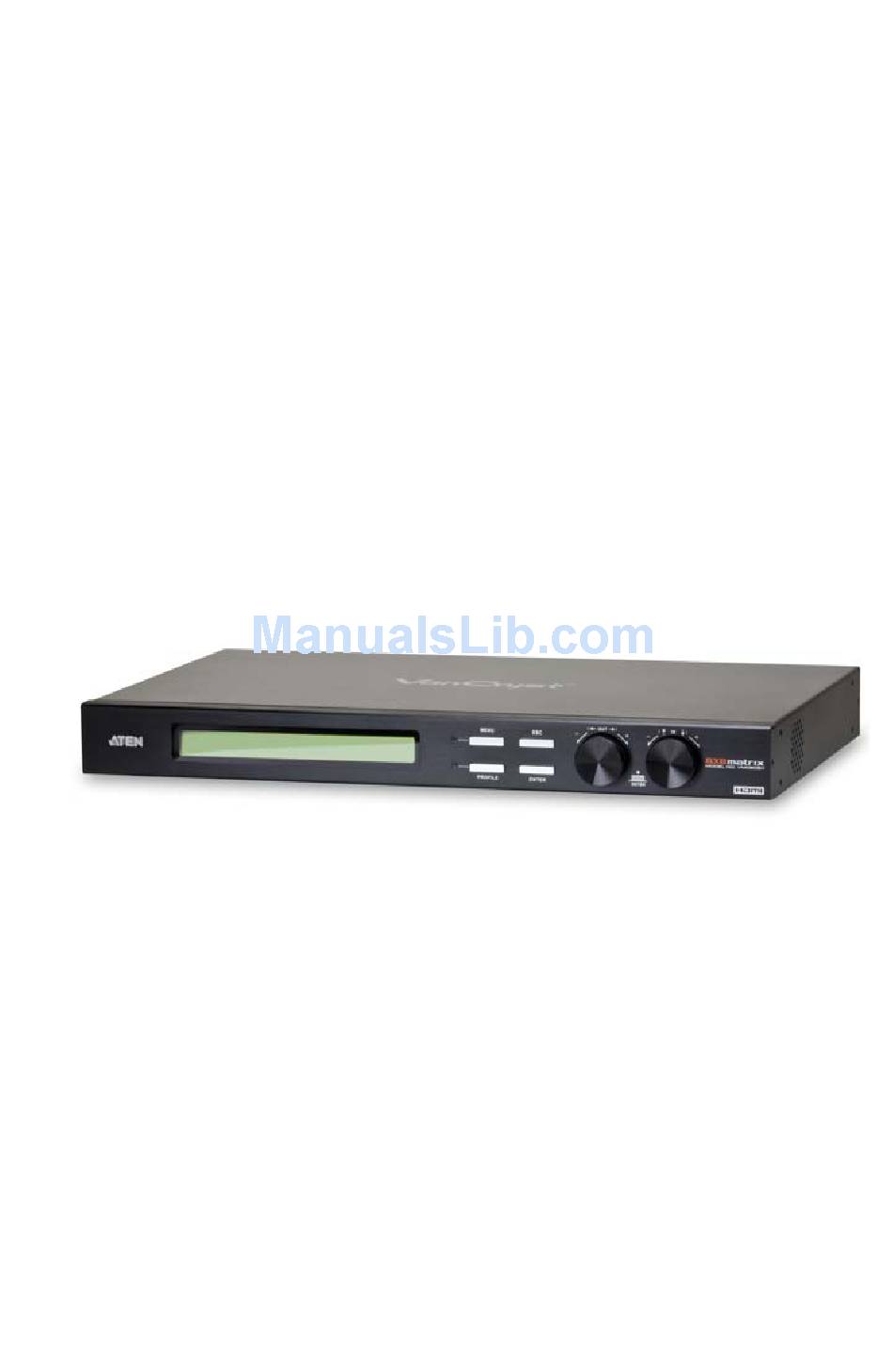

  • Page 1 8x8 HDMI Matrix Switch VM0808H User Manual www.aten.com...

  • Page 2: Fcc Information

    VM0808H User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: User Information

    VM0808H User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America...

  • Page 4: Package Contents

    © Copyright 2010–2012 ATEN® International Co., Ltd. Manual Part No. PAPE-0349-AT1G Manual Date: 2012-05-21 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 5: Table Of Contents

    VM0808H User Manual Contents FCC Information ..........ii RoHS.
  • Page 6 VM0808H User Manual IP Address......... . . 19 Subnet Mask .
  • Page 7 VM0808H User Manual Mute Commands: ........49 Save / Load Profile Commands: .

  • Page 8: About This Manual

    VM0808H User Manual About this Manual This User Manual is provided to help you get the most from your VM0808H system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 9: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 10 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 11: Introduction

    8 HDMI video sources to any of 8 HDMI displays, and view them in any arrangement. As a matrix switch the VM0808H allows eight HDMI source devices to cross connect to eight HDMI displays at the same time, while giving you independent input/output control of each in any array possible.

  • Page 12: Features

    Signaling rates up to 2.25 Gbits in support of 1080p display Feature EDID Expert technology to set up different configurations via different EDID modes Power on Detection - If an HDMI source is powered off, the VM0808H can automatically switch to the next powered-on source Firmware upgradeable...

  • Page 13: Requirements

    Chapter 1. Introduction Requirements The following equipment is required for a complete VM0808H installation: Source Devices HDMI Type A output connector(s) Note: A DVI/HDMI adapter is required when connecting a DVI source device. Display Devices Display devices or receivers with an HDMI Type A input connector Cables 1 HDMI cable for each source device you will be connecting.

  • Page 14: Source Device Operating Systems

    VM0808H User Manual Source Device Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 and higher Linux RedHat 6.0 and higher SuSE 8.2 and higher Mandriva (Mandrake) 9.0 and higher UNIX 4.3 and higher FreeBSD 3.51 and higher...

  • Page 15: Components

    Front Panel Tuner Use the tuner dials and pushbuttons to navigate the Dials & Pushbuttons LCD display to configure and operate the VM0808H. MENU – Press to invoke the Menu page/Main Screen PROFILE – Press to switch between the video source Profile Selection list ESC –...

  • Page 16: Rear View

    In order to access the VM0808H’s Browser Graphical User Interface (GUI), the VM0808H must be connected to your network. The cable that connects the VM0808H to your LAN plugs in here. See Cable Connection, page 12, for further details HDMI Input Ports The cables from your HDMI source devices plug into these ports.

  • Page 17: Ir Remote Control

    Chapter 1. Introduction IR Remote Control Component Description Power ON/OFF Use the ON and OFF pushbuttons to turn the Output displays on or off- by individual port, or all ports. (see IR Remote Control Operation, page 29) Output Pushbuttons Output display Pushbutton 1–8 to change an Input source of an Output display.
  • Page 18 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 19: Hardware Setup

    Keyboard Power On function. Rack Mounting The VM0808H can be mounted in a 19” (1U) system rack. For the most convenient front panel pushbutton configuration and operation at the local site, mount the unit at the front of the rack, as follows: 1.
  • Page 20 VM0808H User Manual 2. Position the unit in the front of the rack and align the holes in the mounting brackets with the holes in the rack. 3. Screw the mounting brackets to the rack.

  • Page 21: Grounding

    To prevent damage to your installation, it is important that all devices are properly grounded. 1. Use a grounding wire to ground the VM0808H by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object.

  • Page 22: Cable Connection

    5. Connect up to 8 HDMI display devices to the HDMI Output ports 6. Connect the IR Receiver into the External IR Receiver Input Port 7. Plug the power cord supplied with the package into the VM0808H’s 3- prong AC socket, and then into an AC power source.

  • Page 23: Installation Diagram

    Chapter 2. Hardware Setup Installation Diagram...
  • Page 24 VM0808H User Manual This Page Intentionally Left Blank...

  • Page 25: Local Operation

    Local Operation Overview The VM0808H can be configured and operated locally on the front panel LCD via tuner dials, pushbuttons and IR Remote Control; remotely over a standard TCP/IP connection via graphical user interface (GUI) using a web browser; or by a RS-232 serial controller.

  • Page 26: Menu Organization

    VM0808H User Manual Menu Organization Use the MENU pushbutton to switch between the Main Screen and Menu page. From the Main screen press the MENU pushbutton to access the Menu page and cycle through the menu options using the tuner dials, starting from Set IP...

  • Page 27: Enter Password

    If the VM0808H has been configured to require a password for local operation (see Security Mode, page 26), the password screen appears when the VM0808H is powered on, and the cursor flashes on the first digit. Enter a 4- digit password to continue to the Main Screen.

  • Page 28: Main Page

    VM0808H User Manual Main Page The Main screen displays Output Ports 1–8 in sequential order across the top. The Input source displaying on each Output port is shown directly beneath it. From the Main screen, you can set the Input to Output connections that route the signals from a selected Input port to the selected Output port.

  • Page 29: Set Ip Port

    Chapter 3. Local Operation Set IP Port To configure the VM0808H’s IP port settings, from the Menu page, turn the front panel OUT/IN dial to move the cursor to the Set IP Port position, and use the OUT, IN, or ENTER pushbutton to select Set IP Port.

  • Page 30: Subnet Mask

    VM0808H User Manual Subnet Mask To set the VM0808H’s Subnet Mask, do the following: 1. Select Subnet Mask from the Set IP Port submenu. The cursor flashes on the first number: MENU IP Address: 192.168.0.60 Subnet Mask: 255.255.255.0 PROFILE ENTER 2.

  • Page 31: Default Ip Settings

    5. Press ESC to return to the previous step without change. Note: The default Gateway is 192.168.0.1 Default IP Settings To use / not use the VM0808H’s Default IP Settings, do the following: 1. Select Default IP Settings from the Set IP Port submenu. The cursor flashes on the entry: MENU Gateway: 192.168.0.1...

  • Page 32: Set Serial Port

    The sub-menu provides two options: Default Serial Settings, and Baud Rate, as follows: Default Serial Settings To use / not use the VM0808H’s Default Serial Settings, do the following: 1. Select Default Serial Settings from the Set Serial Port submenu. The cursor flashes on the entry.

  • Page 33: Baud Rate

    Chapter 3. Local Operation Baud Rate To set the VM0808H’s baud rate, do the following: 1. Select Baud Rate from the Set Serial Port submenu. The cursor flashes on the first number: MENU Default Serial Setting: NO Baud Rate: 19200...

  • Page 34: Operation Mode

    VM0808H User Manual Operation Mode The Power On Detection and EDID features are adjusted from the Operation Mode menu. The Power on Detection mode automatically switches an Output port to the next powered-on source if its video source is powered off. EDID...

  • Page 35: Edid

    The EDID from port1 will be passed to all video sources. Remix Uses the EDID of each connected display according to its connection when the VM0808H is first powered on, or immediately after pressing ENTER to select the Remix option.

  • Page 36: Security Mode

    Security Mode PROFILE ENTER 2. To set the VM0808H to require a password for local operation, select [ENTER] Password Required, and turn the IN/OUT dial to select Yes or No and press the OUT, IN, or ENTER pushbutton to confirm.
  • Page 37 Chapter 3. Local Operation (Continued from previous page.) MENU Password Required: YES Change Password ENTER PROFILE 4. Enter the old password (see Enter Password, page 17). Then, press the OUT, IN, or ENTER pushbutton to create a New Password, and enter the new password in the same way.

  • Page 38: Save / Load Profile

    VM0808H User Manual Save / Load Profile The VM0808H allows you to store up to 32 (numbered 0–31) different connection profiles that can be saved and recalled later. When profiles are saved, they are saved according to the current connection configuration on the Main page.

  • Page 39: Ir Remote Control Operation

    Before using the remote control you must first plug the IR External Receiver into the rear of the VM0808H and place the receiver where the IR signal can be reached (see External IR Receiver Port, page 6). Change the Input source of an Output display...

  • Page 40: Power On/Off All Output Displays

    VM0808H User Manual Power on/off all Output displays To power on/off all Output displays simultaneously, with the remote control, do the following: 1. Press the ON or OFF pushbutton.* 2. Repeat step 1 to simultaneously change back the power status of all Output ports, to on or off, respectively.

  • Page 41: Remote Operation

    For full details, see the sections that follow. Logging In To access the Browser GUI, type the VM0808H’s IP address into the address bar of any browser. If a Security Alert dialog box appears, accept the certificate - it can be trusted. The welcome screen appears: The VM0808H’s default IP address is http://192.168.0.60.

  • Page 42: Connections Page

    VM0808H User Manual Connections Page The VM0808H’s GUI main page is the Connections page. This displays all active connections for control and configuration:...

  • Page 43: Toolbar

    Chapter 4. Remote Operation Toolbar Icon Description Connections This page displays the VM0808H’s active connections and enables you to control them. Setup This page enables you to configure the VM0808H’s IP settings, serial settings and port names. Firmware The page enables you to upgrade the VM0808H’s firmware.

  • Page 44: Configuring Connections

    Or, click the Clear button to revert to the stored configuration. Status Colors Connections display in colors to indicate their status, as follows: Gray – Connected White – Not Connected Note: The latest connections will load automatically when the VM0808H is reset.

  • Page 45: Save / Load Connection Profiles

    Chapter 4. Remote Operation Save / Load Connection Profiles The VM0808H allows you to store up to 32 (numbered 00–31) differently configured connection profiles that can be saved and recalled later by either connection method (locally via the unit’s front panel pushbuttons and over IP via the GUI).

  • Page 46: Setup

    VM0808H User Manual Setup Click the Setup icon to configure the VM0808H’s IP and serial settings, and to name all the ports in your installation. IP Setup The Web Setup settings enable you to configure the VM0808H’s Web interface connection. Changes take a few seconds and automatically redirect you to the IP address specified.

  • Page 47: Serial Setup

    Chapter 4. Remote Operation Serial Setup The Serial Setup settings enable you to configure the VM0808H’s serial connection. Use the drop-down menu to select the value and then click Save or Clear. Click Default Setting to use the following defaults:...

  • Page 48: Port Name

    VM0808H User Manual Port Name The Port Name page enables Administrators and Super Users to change the display name of the input and output ports. To change the display name, enter a value and click Save. Click Clear to revert to the previous stored name.

  • Page 49: Firmware

    1. Use the Browse button to locate the firmware upgrade file. 2. Click Upgrade Firmware to start the upgrade. Note: Check the box to enable the utility to compare the VM0808H’s current firmware version with that of the upgrade files. If it finds that the VM0808H’s firmware version is the same or higher than the...

  • Page 50: Profile Selection

    VM0808H User Manual Profile Selection The profile selection page allows you to set a series of connections profiles, that can be cycled through using the front panel PROFILE pushbutton. Once you have added connection profiles to the Profile Selection List, you can press the front panel PROFILE pushbutton to switch between the profiles which have been added to the Profile List.

  • Page 51: Profile Selection Name

    Chapter 4. Remote Operation Profile Selection Name The Name page enables Administrators and Super Users to change the name of the selection profiles in the profile list. To change the display name, enter a value and click Save. Click Clear to revert to the previous stored name.

  • Page 52: User Management

    Note: This is an Administrator only function. Operations are as follows: Add User – Click Add to add another user to the list. The VM0808H supports up to 32 users at one time. Edit User – Use the radio button to select a user and click Edit to change the information.

  • Page 53: Add User

    Edit User Use this page to rename a user, set/reset a user’s password, add a description of a user, and to set a user’s privileges for accessing the VM0808H’s GUI. Usernames and passwords are case sensitive, and must be 5–16 alphanumeric characters.

  • Page 54: Privileges

    Use the Edit User function to set a user’s privileges. The three available levels are as follows: Administrator – this level provides full access and control of the VM0808H functions in addition to full User Management privileges Super User – this level provides full access and control with no User Management privileges User –...

  • Page 55: Rs-232 Commands

    Chapter 5 RS-232 Commands Serial Control Protocol Commands This chapter provides a complete list of the serial control protocol commands used when utilizing the RS-232 Serial Port so that an extra source device can function further as transmitter and receiver. Configuring the Serial Port The controller’s serial port should be configured as follows: RS-232 Serial Control Protocol Settings...
  • Page 56 VM0808H User Manual Possible Values The following table shows the possible values for switch commands: Command Description Switch command Input Command Description Input command Input Port Number Description 01-08 port (default is 01) Output Command Description Output Command Output Port Number...
  • Page 57 Chapter 5. RS-232 Commands Switch Port Command Table: Enter Description Enter Switch Input Port xx to Output Port yy (xx:01~08; yy:01~08, Enter Turn on Output Port Turn off Output Port (yy:01~08, *) Enter Switch Next Input to Output Port yy Switch Previous Input to Output Port yy (yy:01~08, *)

  • Page 58: Edid Commands

    The EDID from port1 will be passed to all video sources. remix Uses the EDID of each connected display according to its connection when the VM0808H is first powered on, or immediately after pressing ENTER to select the Remix option. default The default EDID will be passed to all video sources.

  • Page 59: Mute Commands

    Chapter 5. RS-232 Commands Mute Commands: The formulas for Mute commands are as follows: 1. Mute Command + Output Command + Port Number + Control + [Enter] For example, to mute output port 05, type the following: mute o05 on [Enter] 2.

  • Page 60: Save / Load Profile Commands

    VM0808H User Manual Save / Load Profile Commands: The formulas for Save/Load Profile commands are as follows: 1. Command + Profile + Number + Control + [Enter] For example, to save the current connection configuration to profile 12, type the following: profile f 12 save [Enter] 2.

  • Page 61: Power On Detection Commands

    Chapter 5. RS-232 Commands Profile Command Table: Command Profile Num1 Control Enter Description profile save [Enter Key] Save current connection configuration to profile yy (yy:00~31) (Default: 00) profile load [Enter Key] Load saved profile yy (yy:00~31) Default: 00) Acknowledge: Description Command OK Command is correct and function executed...
  • Page 62 VM0808H User Manual Power on Detection Command Table: Command Control Enter Description [Enter] Turn on power on detection (default) [Enter] Turn on power off detection Acknowledge: Description Command OK Command is correct and function executed Command Incorrect Unavailable command or parameters...

  • Page 63: Appendix

    Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
  • Page 64 VM0808H User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

  • Page 65: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 66: Technical Support

    VM0808H User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support...

  • Page 67: Specifications

    Appendix Specifications Function VM0808H Connectors HDMI In 8 x HDMI Type A Female (Black) HDMI Out 8 x HDMI Type A Female (Black) Ethernet 1 x RJ-45 Female RS-232 1 x DB-9 Female (Black) IR Input Port 1 x Mini Stereo Jack Female (Black)

  • Page 68: Limited Warranty

    VM0808H User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
