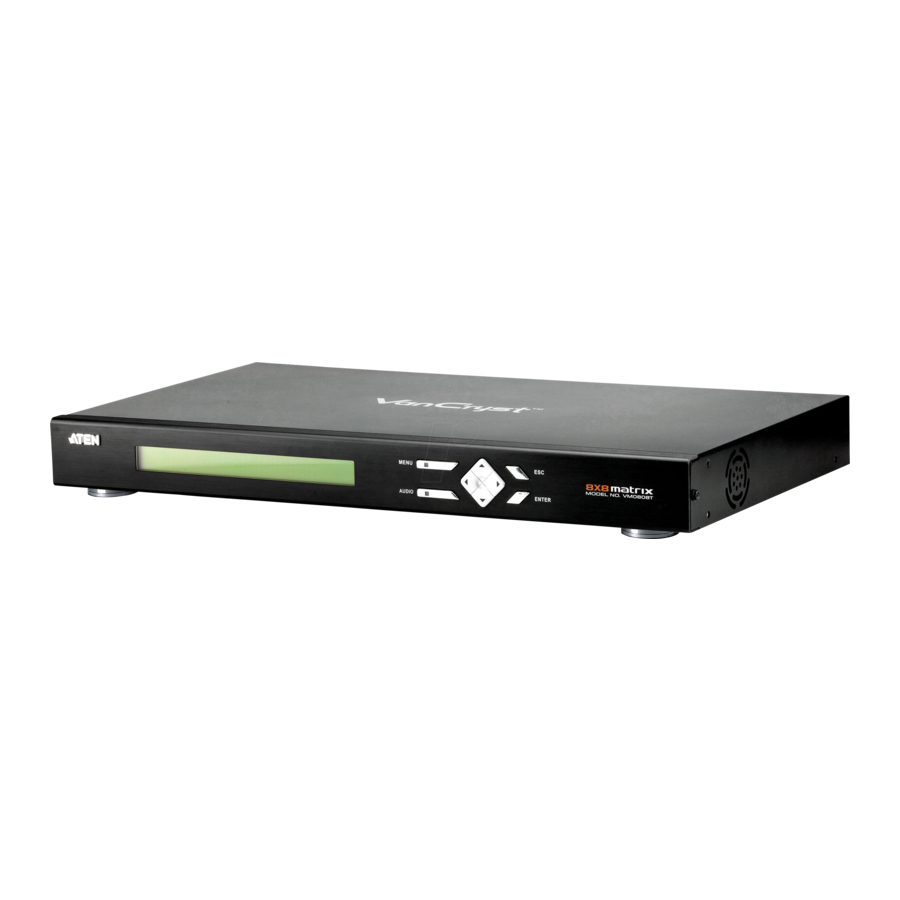

ATEN VM0808T - 8x8 Cat 5 A/V Matrix Switch Quick Start Guide

1. Use the M3 x 8 Phillips head hex screws supplied with the Rack Mount Kit to screw the rack mounting brackets onto the front of the unit.
2. Position the unit in the front of the rack and align the holes in the mounting brackets with the holes in the rack.
3. Screw the mounting brackets to the rack.

Installation of the VM0808T is simply a matter of connecting the appropriate cables. Refer to the installation diagrams (the numbers in the diagrams correspond to the steps, below), and do the following:

1. Use a VGA/Audio cable to connect the audio/video output ports of the local computer (or other audio/video source) to the VM0808T's Video In port and stereo / balanced Audio In ports.
2. Plug the local display's VGA cable into the VM0808T's Video Out port.
3. Plug the local stereo/balanced audio speakers into the appropriate Audio Out ports.
   Note: If both audio sources are connected, the stereo audio source has priority.
4. If you are using the serial control function, use an appropriate serial cable to connect the computer or serial controller to the VM0808T's female RS- 232 port or the RS-485 / RS-422 captive screw connector.
5. If you are using a serial device at the local site, connect it to the VM0808T's male RS-232 port.
6. Plug a Cat 5e cable from the LAN into the VM0808T's Ethernet port.
7. Use the grounding wire to ground the unit by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object.
   Note: Do not omit this step. Proper grounding helps to prevent damage to the unit from surges or static electricity.
8. Connect up to 8 audio/video sources to up to 8 Transmitter units.
9. Using Cat 5e cable, connect the VE500T / VE300T's Remote I/O ports to the RJ-45 Cat 5 Input ports on the VM0808T.
10. Connect up to 8 display devices and speakers to up to 8 Receiver units.
11. Using Cat 5e cable, connect the VE500R / VE500RQ / VE300R / VE300RQ's Remote I/O ports to the RJ-45 Cat 5 Output ports on the VM0808T.
12. Plug the power cord supplied with the package into the VM0808T's 3-prong AC socket, and then into an AC power source.
13. Power on the VM0808T and all devices in the installation

• Use the MENU pushbutton to cycle through the Main Menu options.
• Use the AUDIO pushbutton to go directly to the independent audio page.
• Use the ESC pushbutton to go back a level, return to the Main page, or exit.
• Use the ENTER pushbutton to select options and confirm operations.
• Use the Up / Down navigation pushbuttons to cycle forwards or backwards through numbered options.
• Use the Up / Down / Left / Right navigation pushbuttons to position the cursor on options for selection.

• The VM0808T's default IP address is http://192.168.0.60
• The default username and password are administrator / password.

1. On your computer, open a terminal (command line) session.
2. At the prompt, key in the VM0808T's IP address in the following way: telnet://192.168.168.23:23
3. Press Enter. The login screen appears. At the login prompt, provide your Username and Password.

1. Please download the software from www.aten.com.tw
2. Reference the Browser GUI above for operation.
