2. Technical Specification

Power supply
- AC 230V 50/60Hz
Lamp
- HTI 700W / D4-75 or HTI 575W / D4-75
Optical system
- High efficiency optical system
- High quality optical lens and dichroic colors
- Beam angle: 15°
Shutter/Dimmer
- Blackout, 0~100% smooth dimming and strobe speed variable(1~12 flashes per
second).
Color wheel
- Rainbow effect in both directions .
- Color module for easy assembly and maintenance .
- Magnetic Color wheels home positioning for easy calibration and easy maintenance .
Gobo wheel
- Independent 2 gobo wheels with 5 rotations each, replaceable gobos plus open.
- Magnetic Gobo wheels home positioning for easy calibration and easy maintenance.
- Gobo module for easy assembly and maintenance .
Effect Wheel
- Prism/Rotating Prism
Movement
- Pan: 540° in 2.8 second.
- Tilt: 270° in 1.6 second.
- Pan/Tilt resolution:8/16-bit.
- Automatic Pan/Tilt correction.
- Electronic sensor Pan/Tilt home positioning for easy calibration and easy maintenance.
- Pan/Tilt position lock for transporting protection.
Focus
- Automatic focus by DMX controls.
Iris
- Motorized iris for different beam diameters.
- Iris Speed control.
4B
DMX Channels
- Standard DMX512 signal addressing and can be controlled by any universal DMX
controller or DMX Tester.
22 Channels:
Channel 1 = Pan
Channel 2 = Tilt
Channel 3 = Pan/Tilt speed
Channel 4 = Dimmer
Channel 5 = Shutter/shaking
Channel 6 = Color 1
Channel 7 = Color 2
Channel 8 = Gobo 1
Channel 9 = Gobo 1 Rotation
Channel 10 = Gobo 2
Channel 11 = No function
16 Channels:
Channel 1 = Pan
Channel 2 = Tilt
Channel 3 = Pan/Tilt Speed
Channel 4 = Dimmer
Channel 5 = Shutter/shaking
Channel 6 = Color 1
Channel 7 = Color 2
Channel 8 = Gobo 1

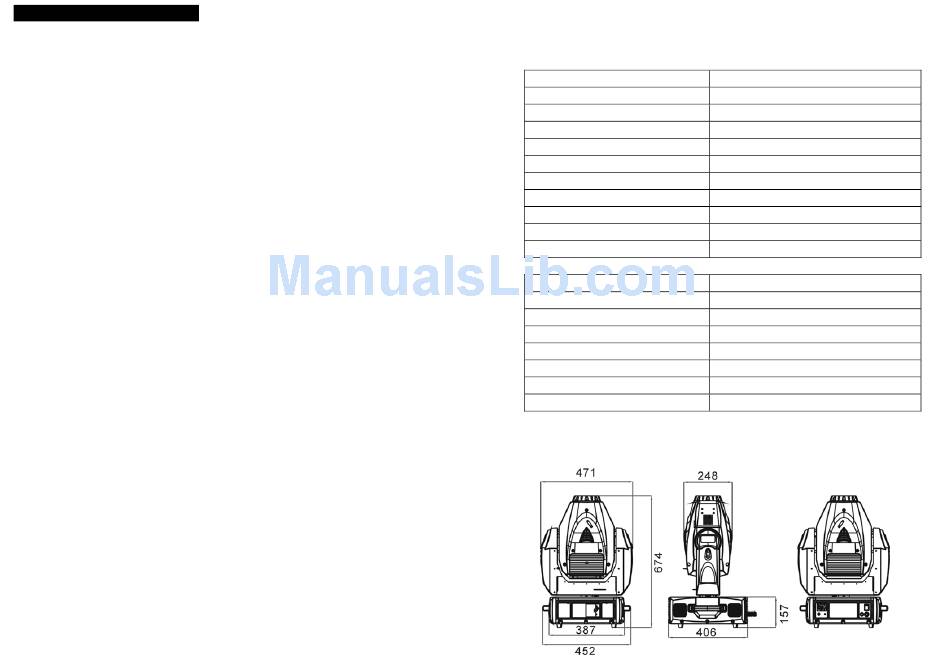

Dimension: 674 x 471 x 406 mm
Weight: 32.6 kg
Channel 12 = Prism
Channel 13 = Prism Rotation
Channel 14 = Focus
Channel 15 = Iris
Channel 16 = Lamp ON/OFF/Reset
Channel 17 = Pan movement fine
Channel 18 = Tilt movement fine
Channel 19 = Pan/Tilt movement macro
Channel 20 = Pan/Tilt movement size
Channel 21 = Iris effect
Channel 22 = Dimmer effect
Channel 9 = Gobo 1 Rotation
Channel 10 = Gobo 2
Channel 11 = No function
Channel 12 = Prism
Channel 13 = Prism Rotation
Channel 14 = Focus
Channel 15 = Iris
Channel 16 = Lamp ON/OFF/Reset
