4.2. Main Function

To select any of the pre-set functions, press the ENTER button and turn jog wheel up to
when the required one is shown on the monitor. Select the function by ENTER button. Use
the jog wheel to change the mode. Once the required mode has been selected, press the
ENTER button to setup or it will automatically return to the main functions without any
change after idling 10 seconds. To go back to the previous functions without any change

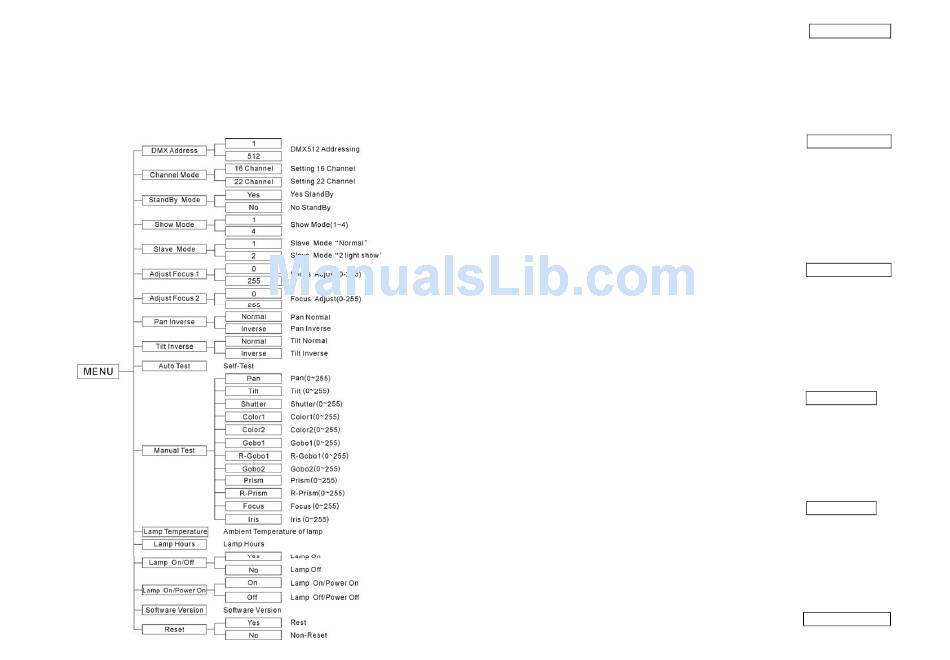

press the ESC button. The main functions are shown below:
10B
DMX 512 Address Setting
Press the ENTER button and turn jog wheel up to when the DMX Address
on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to change
the DMX 512 address. Once the address has been selected, press the ENTER button to
setup or automatically return to the main functions without any change after 10 seconds. To
go back to the previous functions without any change press the ESC button.
Channel Mode
Press the ENTER button and turn jog wheel up to when the Channel Mode
on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select
the (16 Channel) or (22 Channel) mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change
after 10 seconds. To go back to the previous functions without any change press the ESC
button.
StandBy Mode
Press the ENTER button and turn jog wheel up to when the StandBy Mode is shown
on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select
the (yes standby) or (no standby) Mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change
after 10 seconds. To go back to the previous functions without any change press the ESC
button.
Show Mode
Press the ENTER button and turn jog wheel up to when the Show Mode
the monitor. Pressing ENTER button and the display will blink. Use jog wheel to change the
Show Mode (1~4). Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back
to the previous functions without any change press the ESC button.
Slave Mode
Press the ENTER button and turn jog wheel up to when the Slave Mode is shown on
the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the
(Normal) or (2 light show) Mode. Once the mode has been selected, press the ENTER
button to setup or automatically return to the main functions without any change after 10
seconds. To go back to the previous functions without any change press the ESC button.
Adjust Focus 1
Press the ENTER button and turn jog wheel up to when the Adjust Focus 1
on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to change
is shown on
11B
is shown
is shown
is shown
