2. Technical Specification

Power supply
- AC 120V~60Hz or 230V/240V/250V 50/60Hz
Lamp
- Discharge lamp MSD 250/2 GY 9.5 (IM-8S)
- Discharge HTI 150W GY 9.5 (IM-7S)
Optical system
- Standard 13° focused beam angle.
- IM-8S : Focus adjustable by DMX control.
Shutter/Dimmer
- Blackout, 0~100 smooth dimming and strobe speed variable(1~10 flashes per second).
Gobo wheel
- Independent gobo wheel with 7 gobos plus open , gobos are interchangeable: 4 metal
gobos, 2 glass gobos, and 1 effect gobo.
- Gobo wheel rotates with variable speed, giving shaking effect.
Color wheel
- Independent color wheel with 9 dichroic mirrors plus white.
- Color wheel rotates with variable speed, giving rainbow effect.
Movement
- Pan: 540° in 2.8 second.
- Tilt: 270° in 1.6 second.
DMX Channels
- Standard DMX512 signal addressing and can be controlled by any universal DMX controller.
IM-8S
Channel 1 Pan motion
Channel 2 Tilt motion
Shutter/ Shaking
Channel 3
Channel 4 Gobo
Channel 5 Color
Channel 6 Gobo Rotation
Channel 7 Dimmer
Channel 8 Focus
Dimension: 360mm x 397mm x 503mm (IM-8S)
373mm x 295mm x 451mm (IM-7S)
Weight: 26 kg (IM-8S)
13 kg (IM-7S)
IM-7S
Pan motion
Tilt motion
Shutter/ Shaking
Gobo
Color
Gobo Rotation
Dimmer

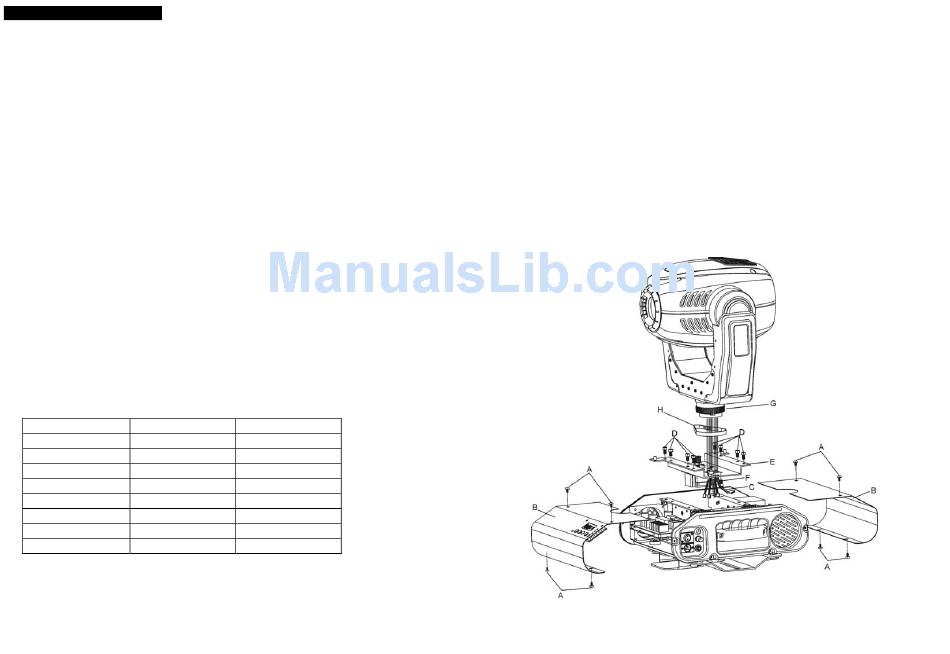

G. If The IM-8S pan belt is broken
1. Turn off the main power.
2. Unscrew all the screws (A) and open the base-housing cover (B).
3. Unplug all the connect wires (C) that from the arm to PC board and igniter.
4. Unscrew the screws (D) that fix the bridge (E).
5. Unscrew the screws (F) that fix the axis gear (G).
6. Change a new belt (H) by going through all connecting wires that from the arm to base,
and through the bridge for correct position.
7. Set up the gear axis to the bridge and screwed it. Note: do not press the belt.
8. Put the belt around the axis gear and motor gear.
9. Plug all the connect wires (C) that form the arm to PC board and igniter.
10. Adjust the pan home position.
11.Screw the base-housing cover (B).
