iSolution imove 700s User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

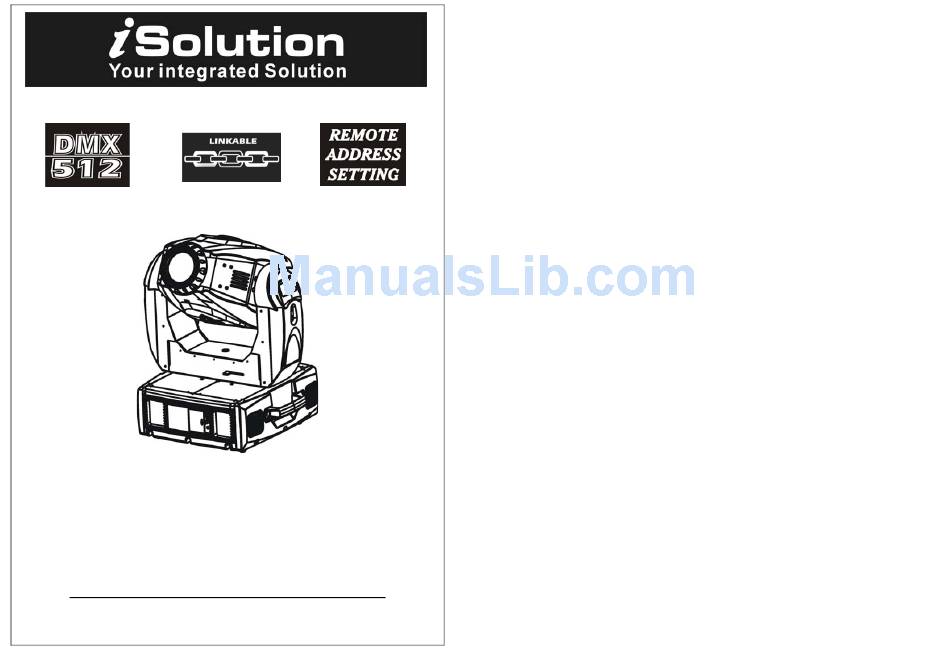

User Guide
Please read these instructions carefully before use

TABLE OF CONTENTS

Широкий ассортимент оборудования ACME
на www.maxlight.ru
1B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the imove 700s and is the answer not in the manual?

Questions and answers

Related Manuals for iSolution imove 700s

Summary of Contents for iSolution imove 700s

  • Page 1: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 2.1 Description of the fixture 2.2 Inserting/Exchanging rotating gobos 3. Lamp 4. How To Set The Unit 4.1 Control Panel 4.2 Main Function 4.3 Home Position Adjustment 4.4 Easy controller 5. How To Control The Unit 5.1 DMX Controller 5.2 DMX 512 Configuration 5.3 DMX 512 Connection...

  • Page 2: Safety Instruction

    1. Safety Instruction Warning To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Please read carefully the instruction, which includes important Never touch bulb with bare fingers, as it is very hot after using. information about the installation, usage and maintenance.

  • Page 3: Technical Specification

    2. Technical Specification DMX Channels - Standard DMX512 signal addressing and can be controlled by any universal DMX Power supply controller or DMX Tester. - AC 230V 50/60Hz 22 Channels: Lamp - HTI 700W / D4-75 or HTI 575W / D4-75 Channel 1 = Pan Channel 12 = Prism Channel 2 = Tilt...

  • Page 4: Description Of The Fixture

    Luminous intensity: CAUTION! Never unscrew the screws of the rotating gobo as the ball bearing 2.1. Description of the fixture will otherwise be opened! 1. Yoke 3. Lamp 2. Front panel 3. Moving head In case of replacement of the lamp or maintenance, do not open the 4.

  • Page 5: How To Set The Unit

    4. How To Set The Unit 6. If changing the lamp, remove old lamp from lamp socket. Hold the new lamp only by its ceramic base. Never touch the glass bulb. Insert the new lamp in the lamp socket. 7. Please turn the head in horizontal position. Hinge must be on the upper side of the head. 4.1.

  • Page 6: Main Function

    4.2. Main Function DMX 512 Address Setting To select any of the pre-set functions, press the ENTER button and turn jog wheel up to Press the ENTER button and turn jog wheel up to when the DMX Address is shown when the required one is shown on the monitor.
  • Page 7 Lamp Temperature the focus 1 (0-255). Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back Press the ENTER button and turn jog wheel up to when the Lamp Temperature to the previous functions without any change press the ESC button.

  • Page 8: Home Position Adjustment

    4.3. Home Position Adjustment Tilt offset Press ENTER button into main function, and then press ENTER button for at least 12 Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to seconds into offset mode to adjust the home position, when you want to adjust gobo and when the Tilt offset is shown on the monitor.

  • Page 9: Easy Controller

    R-Gobo 1 offset 4.4 Easy Controller Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the R-Gobo 1 offset is shown on the monitor. Pressing ENTER button and the The easy remote control is used only in master/slave mode. By display will blink.

  • Page 10: Dmx 512 Configuration

    5.2. DMX 512 Configuration...

  • Page 11: Dmx512 Connection

    5.3. DMX512 Connection The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you use a controller with 5 pins DMX connector, you need to use a 5 to 3 pin adapter. 2.

  • Page 12: Troubleshooting

    6. Troubleshooting F. If The pan belt is broken 1. Turn off the main power. Following are a few common problems that may occur during operation. Here are 2. Unscrew all the screws (A) and open the base-housing cover (B). some suggestions for easy troubleshooting: 3.

  • Page 13: Fixture Cleaning

    7. Fixture Cleaning G. If The tilt belt is broken 1. Turn off the main power. The cleaning of internal and external optical lenses and/or mirrors must be carried out 2. Unscrew all the screws (A) and open the right arm cover (B). periodically to optimize light output.
