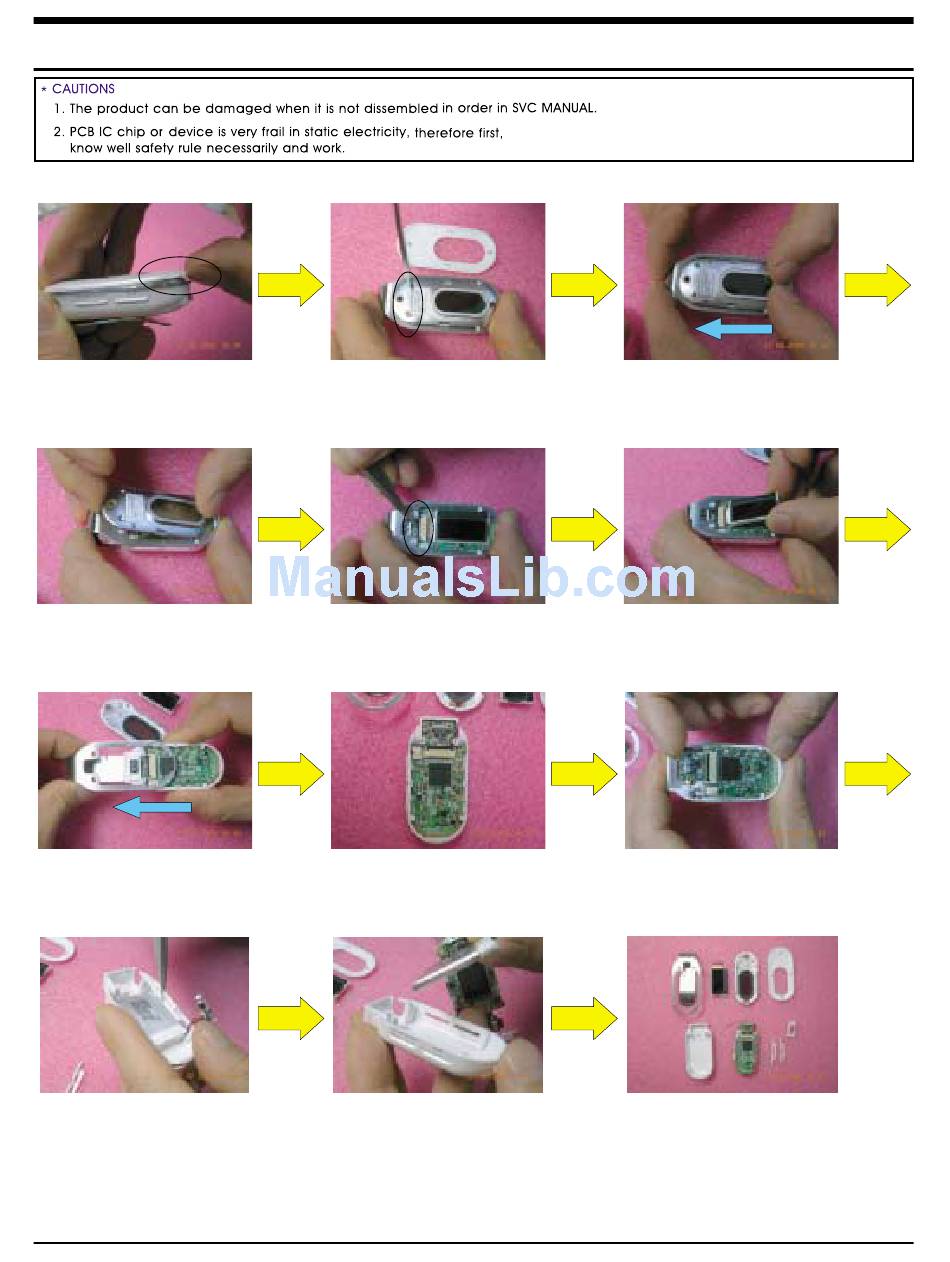

5. How to disassemble
1. Draw out the part of the
COVER-TOP.
4. Remove the ASSY TOP.
7. Draw out the FRAME-CLIP
to the arrow direction.
10. Draw out the KNOB switch.
Samsung Electronics
2. Unfasten 2 screw from the
Cabinet-bottom.
5. Lift up the LCD connector.
8. Unfasten 2 SCREW.
11. Remove the BATTERY
3. Push the ASSY TOP to the
arrow direction.
6. Remove the LCD part.
9. Remove PCB-ASS'Y.
12. Finish !
5-1
