Summary of Contents for Velleman K8048

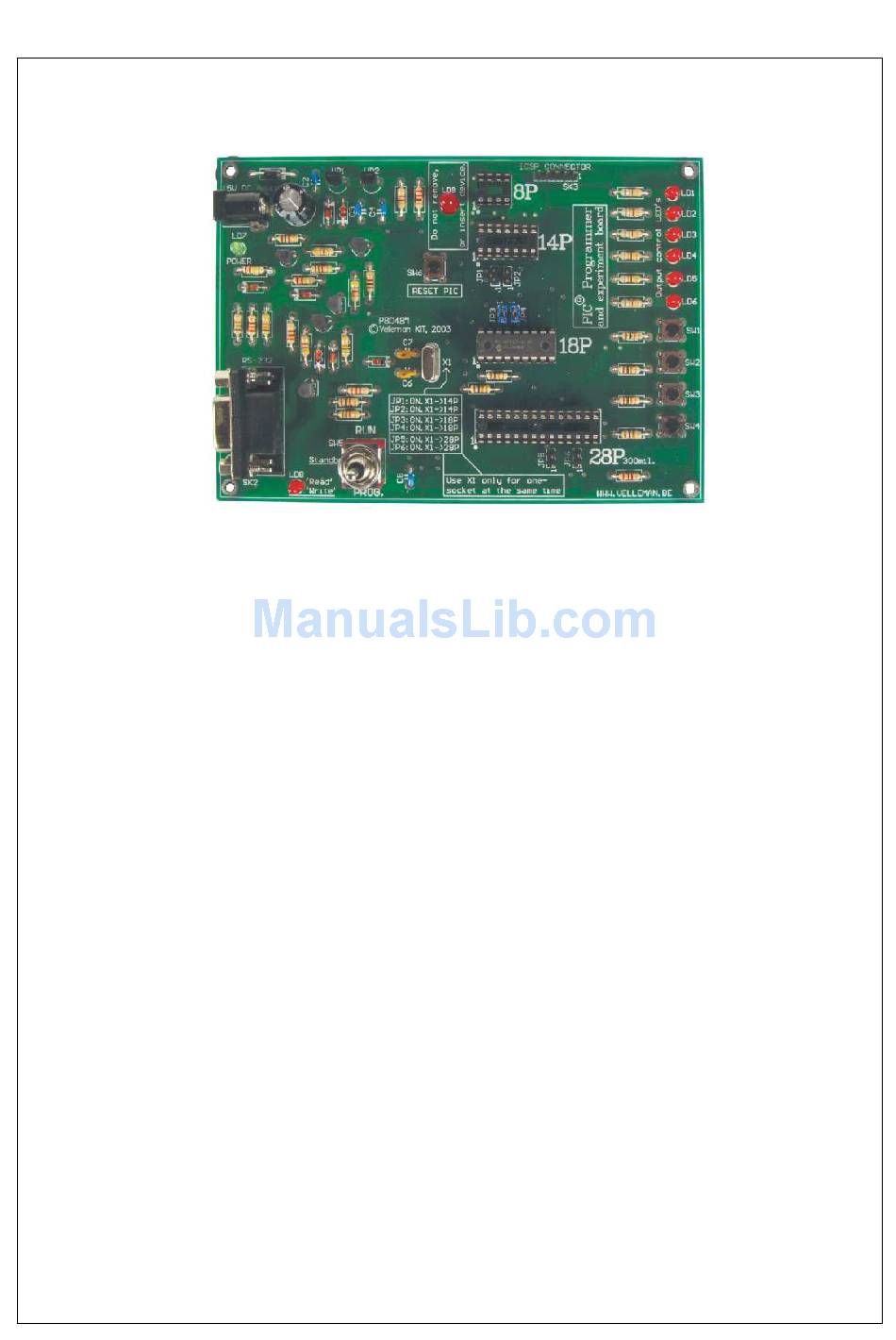

- Page 1 K8048 PIC PROGRAMMER BOARD K8048 © 2003 Velleman Components...
- Page 2 Velleman Kits Welcome to the exciting world of Velleman Kits. Velleman Kit is known all over the world for our High Quality electronic kits. Our range goes from easy to build Mini Kits to more advanced Kits such as High-End audio circuits, domotic systems and computer interface kits.
-
Page 3: Table Of Contents
Table of Contents general information Specifications Connection Hardware installation Programming Procedure Writing/changing a program ........................... 5 Compiling ........................... 5 Actual programming of the microcontroller ........................... 7 Programming ................................9 Erase pic device ........................... 10 Experiments ICSP K8048 © 2003 Velleman Components... -
Page 4: General
Upon conclusion of the compilation phase the program is programmed in the processor via the K8048 by means of the PICPROG2 software. The K8048 has room available for the direct mounting of 4 different 'footprints', 8 pins, 14 pins, 18 pins and 28 pins. Other 'footprint' types can also be used via the ICSP connector. -
Page 5: Specifications
· · PIC12F629, PIC12F675, PIC16F83, PIC16F84(A), PIC16F871, PIC16F872, · PIC16F873, PIC16F874, PIC16F876, PIC16F627(A),PIC16F628(A),PICF630, ….* Dimensions: 145 mm x 100 mm. · (*) Visit our website for the updated list and software updates : www.velleman.be Connection K8048 © 2003 Velleman Components... -
Page 6: Hardware Installation
K8048 e.g. executive programs for other programmers, measuring devices, PDA's, etc... Place selector (SW5) in the central position (standby). · Connect a non-regulated 12 to 15V DC adapter of min. 300mA with the K8048 via SK1 · (compatible Velleman adapters: PS1205... -
Page 7: Programming Procedure
Compiling: the code you have written in comprehensible language is converted into machine · language. In this instance the Microchip PIC assembler software, MPASMWIN.EXE, is used. Programming: the machine code is programmed in the processor via your PC and the K8048, · using the PROGPIC2.EXE software Erase pic device: erasing the contents of a controller ·... - Page 8 LIST-file (xxx.LST). 6. This is the word length of the bytes. Always select 'INHX8M' in the machine code file for the PROGPIC2 software that comes with the K8048. Other choices will result in illegible or non functioning machine code.
-
Page 9: Actual Programming Of The Microcontroller
K8048 software. Actual programming of the microcontroller · Connect your K8048 with your computer via a free serial port. · The IRQ line of this erial port (IRQ 3 or 4) must not be used by another device e.g. internal modem. - Page 10 ERASE before WRITE: (standard = ON). This indicates that the controller is erased prior to programming. LOW VOLTAGE Programming: does not apply to the K8048. All controllers are programmed with a programming voltage (VPP) of 13 and not 5V. Select the microcontroller you are using. The included microcontroller belongs to one of the two following types : PIC16F627 of PIC16F627A.
-
Page 11: Programming
NOT be code-protected; otherwise you will not be able to perform your check. During programming every byte is checked automatically to verify whether it's been saved correctly. Only then will the code protection be activated. K8048 © 2003 Velleman Components... -
Page 12: Erase Pic Device
3. Can be used to deactivate the code protection. However, you will no longer be able to read the contents or use the program. Read the C:\Velleman\K8048\Examples folder for examples of programs. Updates of the programming software and additional examples can be downloaded from our site... -
Page 13: Experiments
Experiments Use of the experiment push buttons and LEDs: The K8048 is equipped with a max. of 4 test inputs that can be operated manually with SW1,SW2,SW3 and SW4. The device also has 6 diagnostics LEDs that enable the user to simulate outputs. -
Page 14: Icsp
PIC programmer board ICSP IICSP allows you to program controllers "in-circuit". This process is also known as code downloading. This means quite simply that the chip in question is connected with a socket consisting of four or five wires, viz. the ICSP bus. Several members of the PIC family can be programmed or reprogrammed without having to remove them from the print or deactivating the power supply.
