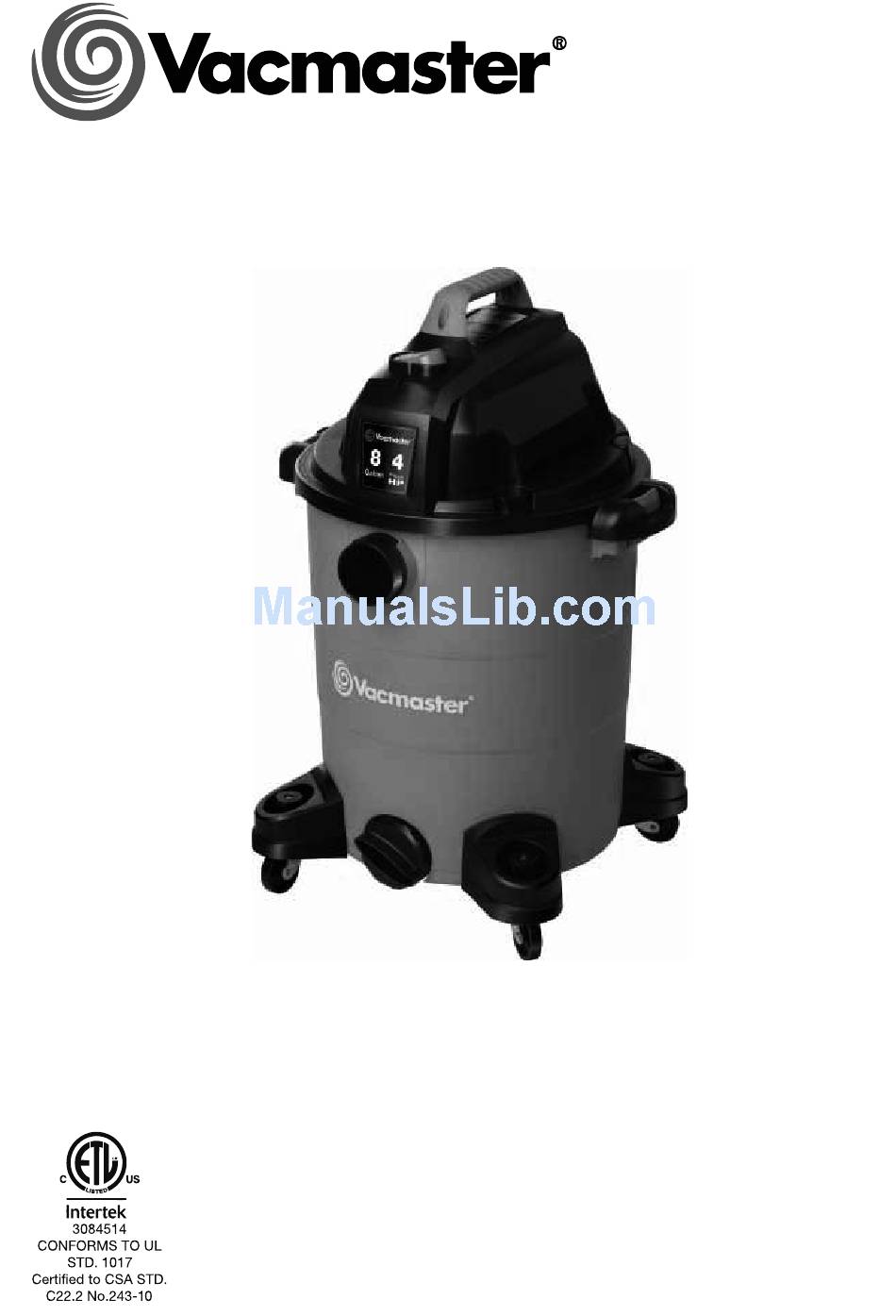

Wet/Dry Vacuums
Operator's Manual
Model No. VJC809PF
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Distributed By
Cleva North America, Inc.
601 Regent Park Court
Greenville, SC 29607

Advertisement

Table of Contents
loading

Related Manuals for Vacmaster VJC809PF

Summary of Contents for Vacmaster VJC809PF

  • Page 1 Wet/Dry Vacuums Operator’s Manual Model No. VJC809PF FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607...

  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY We take pride in producing a high quality, durable product. This Vacmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use.

  • Page 3: Safety Instructions And Warnings

    Safety is a combination of common sense, staying alert, and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use only Vacmaster® recommended accessories. Household Type SAVE THIS MANUAL FOR FUTURE REFERENCE.

  • Page 4: Double Insulation Instructions

    SAFETY INSTRUCTIONS & WARNINGS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

  • Page 5: Package Contents

    PACKAGE CONTENTS Remove entire contents of carton. Remove power head from collection tank and remove items inside. Check each item against the carton contents list. Carton Contents List Description ..…………………..Qty. Vac Assembly……………………….. 6 Screws (Bag)..………….…… Caster Foot Assembly...…..….…….. Crevice Nozzle......... 2-In-1 Utility Nozzle….………..

  • Page 6: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required. WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC. UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. Verify that the power cord is disconnected from the outlet. (fi g. 1) 2.

  • Page 7: Dry Vacuum Operation

    DRY-VACUUM OPERATION DRY VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 8: Liquid Vacuum Operation

    LIQUID VACUUM OPERATION LIQUID VACUUM CLEANING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 9: Blowing Operation

    BLOWING OPERATION This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER. CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS. WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

  • Page 10: Care And Maintenance

    CARE AND MAINTENANCE 1. Verify that the power cord is disconnected from the outlet. (fi g. 1) 2. Disconnect the hose from the vacuum. (fi g. 2) 3. Undo the latches and remove the power head from the collection tank. (fi g. 3) 4.

  • Page 11: Installing & Cleaning Cartridge Filter

    INSTALLING & CLEANING CARTRIDGE FILTERS Installing Cartridge Filter 1. Verify that the power cord is disconnected from the outlet. (fi g.1) 2. Remove power head and place in upside down position. 3. Install the cartridge fi lter over the fi lter cage with the fl at end of the fi lter towards the vacuum power head.

  • Page 12: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-UNPLUG BEFORE TROUBLESHOOTING Symptom Possible Causes Corrective Action 1) No power supply. 1) Check power supply – cord, Vacuum will not operate breakers, fuses. 2) Faulty power cord. 2) Unplug and check the power cord.

  • Page 13: Exploded View

    VIEW EXPLODED...

  • Page 14: Parts List

    PARTS LIST Description Part Number Included with Vac Handle VJ01PF.10.01.X1 Power Head Assembly VJB8PF.10.00 Float TVQTZS.06.YZ.W2.00 Filter Cage VI02SR.10.06.02 Cartridge Filter VCFS Filter Retainer FV9546.01.20.01 Collection Tank VOD1PF.20.01.X1 Drain Cap VB01PF.X0.03 Caster Foot Assembly TVQTJC.16.00.X1 Crevice Nozzle V1CT 2-in-1 Utility Nozzle V1UB Foam Sleeve Filter VFF51...
