VMCA10
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

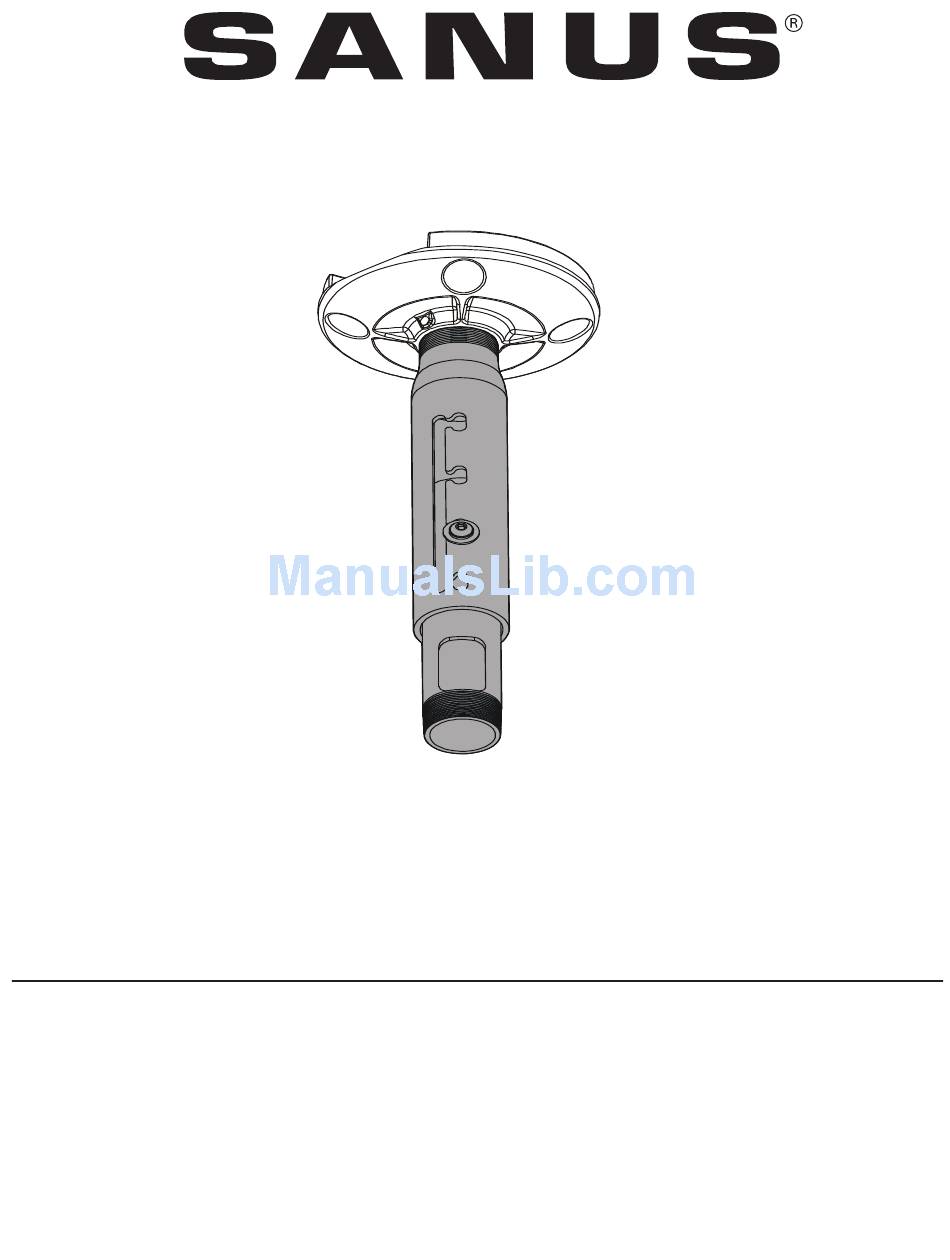

Thank you for choosing the VMCA10 extension column. The VMCA10 extension column is designed to suspend your A/V
equipment mount from a ceiling attachment. The VMCA10 accommodates an NPT 1-1/2 in. threaded pipe and supports a
maximum weight of 226.8 kg (500 lb).
Milestone
6436 City West Parkway
Eden Prairie, MN 55344 USA
Customer Service
Americas: 800-359-5520 • 952-225-6013 • info@sanus.com
Europe, Middle East, and Africa: + 31 40 2324700 • europe.sanus@milestone.com
Asia Pacific: 86 755 8996 9226 • sanus.ap@milestone.com
sanus.com
©2012 Milestone AV Technologies, a Duchossois Group Company.
All rights reserved. Sanus is a division of Milestone.
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sanus VMCA10
Summary of Contents for Sanus VMCA10
- Page 1 IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS Thank you for choosing the VMCA10 extension column. The VMCA10 extension column is designed to suspend your A/V equipment mount from a ceiling attachment. The VMCA10 accommodates an NPT 1-1/2 in. threaded pipe and supports a maximum weight of 226.8 kg (500 lb).
- Page 2 CAUTION Do not use this product for any purpose not explicitly specifi ed by Sanus. Improper assembly may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the assembly, contact Customer Service or call a qualifi ed contractor. Sanus is not responsible for damage or injury caused by incorrect assembly or use.
- Page 3 Dimensions 1-1/2" 11-1/2 NPT THREADS 1-1/2" 11-1/2 NPT THREADS 1.750 6X .340 6X 2.00 22.81 13.125 24.0 1.000 1.250 1.200 17.13 14.88 2X 1.00 6901-002184 00...
- Page 4 Step 1: Install Extension Columns NOTE The ceiling attachment shown in this manual is generic; it is intended to illustrate a procedure only. (Ceiling attachment not included.) CAUTION Avoid potential injuries and / or property damage! Always use a minimum of seven turns to thread the extension pipe [01], [02] into a mating surface.
- Page 5 3: Install and Tighten Screw and Washers [02] [09] [03] [04] [05] [01] 4: Adjust Column Length [09] 6901-002184 00...
- Page 6 5: Install and Tighten Set Screws [07] [07] [06] [06] [08] [08] Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind.
