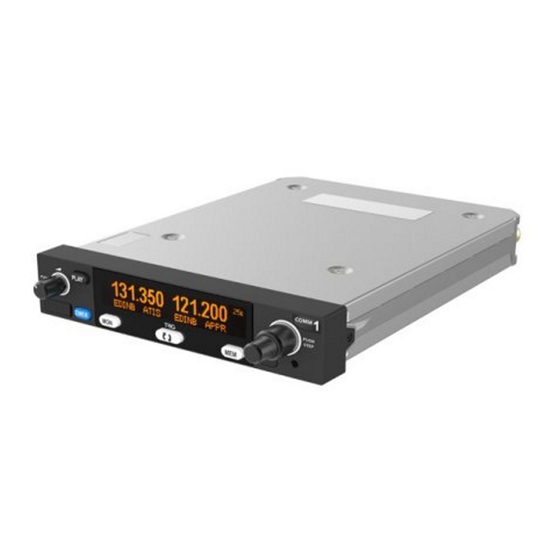

TY96/97 VHF Radio Installation Manual
01238-00-AD
29 July 2016
Trig Avionics Limited
Heriot Watt Research Park
Riccarton, Currie
EH14 4AP
Scotland, UK
Copyright Trig Avionics Limited, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY96 and is the answer not in the manual?

Questions and answers

Summary of Contents for trig TY96

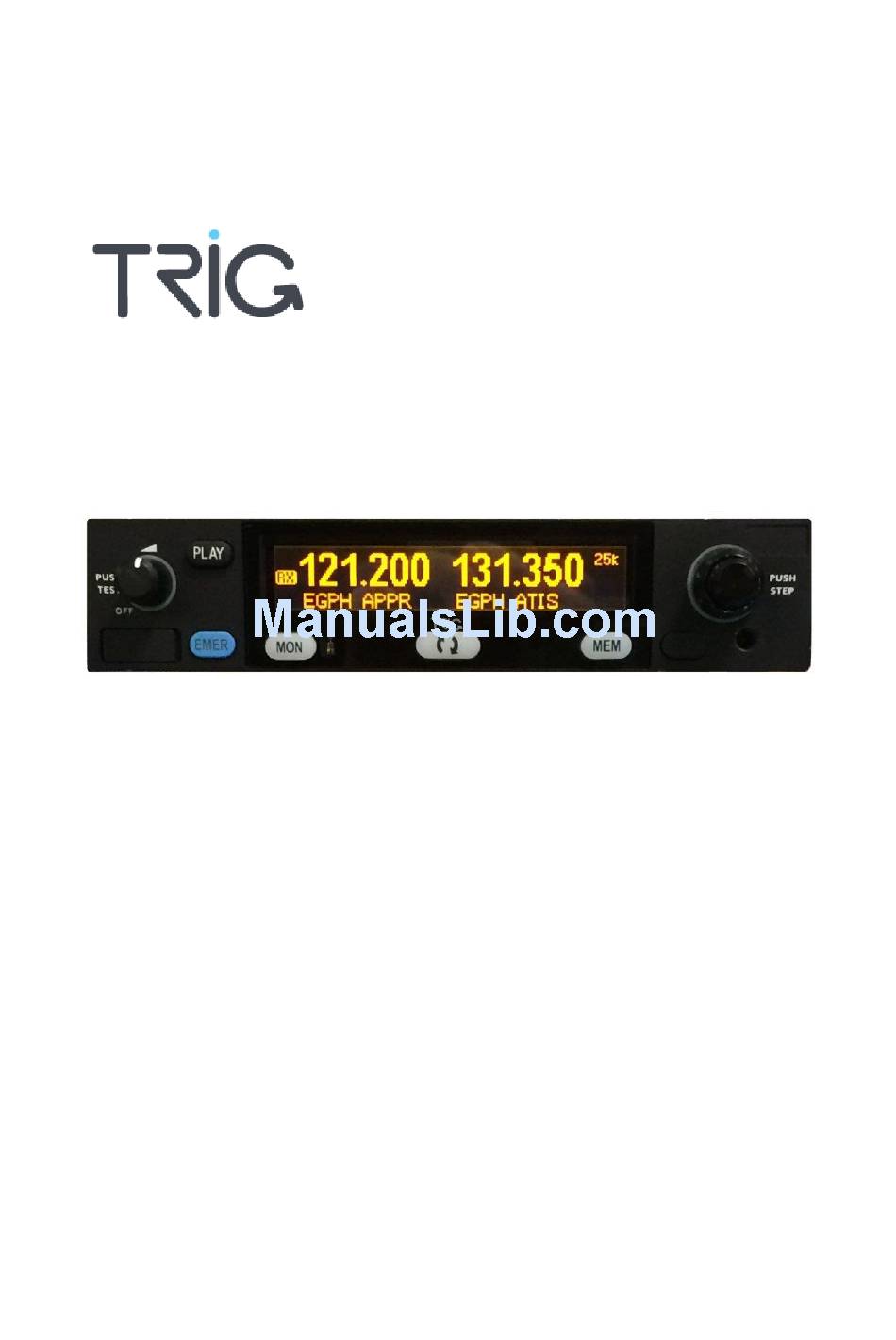

  • Page 1 TY96/97 VHF Radio Installation Manual 01238-00-AD 29 July 2016 Trig Avionics Limited Heriot Watt Research Park Riccarton, Currie EH14 4AP Scotland, UK Copyright Trig Avionics Limited, 2015...
  • Page 2 This page intentionally left blank...
  • Page 3: Table Of Contents

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD CONTENTS PREFACE ............................1 ............................ 1 URPOSE ............................1 COPE ....................1 HANGES FROM REVIOUS SSUE ....................1 OCUMENT ROSS EFERENCES INTRODUCTION .......................... 2 TY96 TY97 D ....................2 ESCRIPTION ..........................
  • Page 4 TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD 5.6.3 Audio Output ........................14 5.6.4 Transmit Interlock ......................14 5.6.5 Lighting Bus Input ......................14 5.6.6 PTT1/2 Key Input ......................14 5.6.7 Intercom Key Input ......................14 5.6.8 Auxiliary Audio Input .....................
  • Page 5 TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD EMER B ........................21 UTTON 8.10 ............... 21 AVING AND OADING THE REQUENCY ATABASE 8.11 ................21 ENERAL EMPERATURE PERATION 8.12 ......................21 ARNING ESSAGES 8.13 ......................21 AULT NNUNCIATION CONTINUED AIRWORTHINESS ....................
  • Page 7: Preface

    This Manual applies to the installation of the TY96 and TY97 VHF radio. At the publication date of this manual the software version identifier for the TY96/TY97 is 1.1 and the FPGA version identifier is 1.1. The software and FPGA versions are subject to change without notice.
  • Page 8: Introduction

    TY97 are certified to ETSO 2C169a, 2C128a, TSO C169a and TSO C128a. The TY96 can be powered from either a 14 volt nominal or 28 volt nominal DC power supply with no configuration changes required. The TY97 requires a 28 volt nominal DC power supply.
  • Page 9: Technical Specifications

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD 3. Technical Specifications 3.1 TY96 VHF Radio (Trig Part Number 01226-00-01) Specification Characteristics Compliance ETSO 2C169a Class C, E, H1, H2, 4, 6, ETSO 2C128, TSO C169a Class C, E, 4, 6, TSO C128a...
  • Page 10: Physical Specifications (In Tray)

    10 volts in a TY96, or 18 volts in a TY97. 3.5 Installation Approval The conditions and tests required for the TSO approval of the TY96 and TY97 VHF radios are minimum performance standards. It is the responsibility of those installing this VHF radio on or within a specific type or class of aircraft to determine that the aircraft operating conditions are within the TSO standards.
  • Page 11: Unit And Accessories Supplied

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD 4. Unit and Accessories supplied 4.1 TY96 VHF radio Items The TY96 VHF radio includes the following items: Unit Description Part Number TY96 VHF Radio 01226-00-01 TY96/TY97 Installation Kit...
  • Page 12: Required Items

    Additional items you will require, but which are not in the TY96/TY97 package, include:  Antenna and fixing hardware. The TY96 or TY97 are compatible with any standard 50 ohm vertically polarised antenna with a VSWR better than 2.5:1. ...
  • Page 13: Installation

    To justify your claim, save the original shipping container and all packaging materials. 5.2 Installation Overview The TY96/TY97 VHF Radio must be mounted rigidly in the aircraft panel. The following installation procedure should be followed, remembering to allow adequate space for installation of cables and connectors.
  • Page 14: Cooling Requirements

    5.4 Electrical Connections The TY96 has single 25 way D-type connector which is used for all the data and audio signals. A single coaxial BNC is used to connect the antenna.
  • Page 15: Orientation Diagram

    Antenna 5.4.2 D Connector Crimp Terminals The 25 way connector supplied with the TY96 installation kit are MIL standard versions of the popular sub miniature D type connector family, and use individual crimp terminals and a receptacle. The MIL specification for this family of connectors is MIL-C-24308. We supply crimp terminals because these are more reliable than soldered connections, and are easier to assemble in-situ in an aircraft, where soldering is impractical.
  • Page 16: Power And Ground Wiring

    5.4.5 Mono Wiring Considerations The TY96 audio wiring can be connected to suit a mono installation. To do this, you must short the left and right signal wires together at the TY96 end of the loom. This will have the effect of placing all audio in the centre of the connected headphones.
  • Page 17 The cable shield should be connected to ground at the TY96 end only. Do not connect the shield at both ends of the cable to avoid a ground loop which can increase interference effects.
  • Page 18: Example Wire Harness

    5.4.7 Example Wire Harness Below is a typical example of the TY96 wire connections, shown without the D-Sub backshell. Wire harness viewed from top Wire harness viewed from bottom Signal Signal...
  • Page 19: Antenna Ground Plane

     The antenna cable should be terminated with BNC type male connector 5.5.3 BNC Connection Feed the supplied blind mate BNC connector to the TY96 mounting tray back plate and attach the washer combination in the following order:  Wave washer (p/n 00317-00).
  • Page 20: Interface Details

    5.6.2 Headphone Outputs The TY96 can drive two sets of headphones. The output is stereo and is intended for headsets of 150 to 600 ohm impedance. The radio also works correctly when a mono headset is plugged into a stereo socket, or can be wired for mono headphones sockets.
  • Page 21: Auxiliary Audio Input

    4 volts. 5.6.13 Power Input The TY96 power supply can be 11-33 volts DC; no voltage adjustment is required. Use a 5 Amp circuit breaker for power supply protection to the TY96. The TY97 requires 22-33 volts DC; again use a 5 amp circuit breaker.
  • Page 22: Installation Setup And Test

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD 6. Installation Setup and Test 6.1 Initial Power On The TC90 will display a splash screen when the radio is first switched on. The splash screen shows the software versions currently loaded and what model of radio is connected.
  • Page 23: Frequency Step Size

    Issue AD 6.2.5 Frequency Step Size The TY96/TY97 is capable of operating in both an 8.33 kHz and 25 kHz environment. If 8.33 kHz operation is not required, the 8.33 kHz channels can be disabled to simplify the tuning operation.
  • Page 24: Lcd Brightness Curve

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD necessary to adjust the darkest setting of the backlight to best match other equipment and to improve the cockpit appearance at night. Note – it is only practical to do this in pitch darkness, since that is the in-flight environment that you are trying to reproduce.
  • Page 25: Post Installation Checks

    Interference check. Check the radio with other avionics and electrical equipment on the aircraft operating. Check at low, mid and high radio frequencies. There should be no significant interference on reception, and when the TY96/TY97 transmits there should be no adverse effect on any other equipment.
  • Page 26: Normal Operation

    The Flip-flop button swaps the frequency in the standby display at the right of the screen, into the active position, and moves the active frequency to the standby position. 8.6 MON Button The TY96/TY97 includes a dual-frequency listen feature; pressing the MON button toggles this feature on and off. ______________________...
  • Page 27: Mem Button

    8.11 General Low Temperature Operation The TY96/TY97 is certified to operate correctly down to -20°C, but at low temperatures the controller display may be impaired. On a cold day you may need to wait for the cockpit to warm up to ensure normal operation.
  • Page 28: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD Some FAULT indications can be recovered by switching the VHF radio off and back on again, although in all cases a FAULT code implies that there is a fault with the VHF radio or the installation.
  • Page 29: Continued Airworthiness

    Issue AD 9. Continued Airworthiness Other than for periodic functional checks required by the regulations, the TY96/TY97 VHF radio has been designed and manufactured to allow “on condition maintenance”. This means that there are no periodic service requirements necessary to maintain continued airworthiness, and no maintenance is required until the equipment does not properly perform its intended function.
  • Page 30: Limited Warranty

    Heriot Watt Research Park Riccarton, Edinburgh, EH14 4AP Trig Avionics will not accept or pay for any charges for warranty work performed outside our factory without prior written consent. This warranty applies only to products in normal use. It does not apply to units or circuit boards...
  • Page 31: Environmental Qualification Forms

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD 11. Environmental Qualification Forms Nomenclature: TY96 VHF Radio Part Number: 01226-00-xx ETSO: 2C169a, 2C128 Manufacturer: Trig Avionics Limited Address: Heriot Watt Research Park, Edinburgh, Scotland, EH14 4AP Conditions DO-160G...
  • Page 32: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD Nomenclature: TY97 VHF Radio Part Number: 01228-00-xx ETSO: 2C169a, 2C128 Manufacturer: Trig Avionics Limited Address: Heriot Watt Research Park, Edinburgh, Scotland, EH14 4AP Conditions DO-160G Description of Conducted Tests...
  • Page 33: Installation Drawings

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD 12. Installation Drawings 158.90 mm CUT OUT DIMENSIONS FOR BEHIND AIRCRAFT PANEL MOUNT 160.30 mm CUT OUT DIMENSIONS FOR FRONT AIRCRAFT PANEL MOUNT Dimensions in (--) are millimetres, dimensions in [--] are inches.
  • Page 34: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD ITEM DESCRIPTION TY96 VHF Radio TY96 Mounting Tray TY96 Mounting Tray Back Plate Screw M2.5 x 8mm, pan pozidrive ______________________ Page 28 Trig Avionics Limited...
  • Page 35: Wiring Diagrams

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD 13. Wiring Diagrams Diagram 1: System Interface..............................................30 Diagram 2: Typical standalone interconnect (no audio panel) ....................................31 Diagram 3: Audio panel interconnect ............................................. 32 ______________________ Trig Avionics Limited...
  • Page 36: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD TY96 VHF Radio [25 Way Connector] Audio Panel Auxiliary Mono Audio Out Aux Input (If installed) Audio Cabin Music In [L] MP3 Player Speaker Out Speaker Music In [R]...
  • Page 37: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD NOTES TRIG TY96 5A CIRCUIT BREAKER 20 AWG POWER AND GROUND WIRES SHOULD ALL BE 20 - 24 AWG 11 – 33V AIRCRAFT POWER AIRCRAFT POWER IN ALL OTHER WIRES SHOULD BE...
  • Page 38: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD Audio Panel Trig Garmin PS Engineering Bendix/King TRIG TY96 TMA44 TMA45 SL 10 Series GMA 340 GMA 347 PAC 24 PMA 8000 PMA 6000 PMA 6000B KMA 24 KMA 26...
  • Page 39: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD Garmin SL40 TRIG TY96 HEADPHONE 1 L OUT HEADPHONE HEADPHONE 2 R OUT RS232 OUT RS232 IN AIRCRAFT POWER IN POWER + AIRCRAFT POWER IN AIRCRAFT GROUND MIC GROUND...
  • Page 40: Trig Avionics Limited

    TY96/97 VHF Radio Installation Manual 29 July 2016 01238-00 Issue AD NOTES Bendix/King KY197A TRIG TY96 HIS DIAGRAM ILLUSTRATES HOW TO USE THE EXISTING WIRING FROM A KY197A ENDIX WHICH IS CONNECTED TO AN AUDIO PANEL MONO AUDIO OUT 500 OHM AUDIO OUT...
  • Page 41: Usb File Format

    Issue AD 14. USB File Format The TY96/TY97 radio internal database that can store up to 250 airfield frequencies. These are stored as an identifier (up to 6 characters), a standard facility designator, such as TWR or GND, and the station frequency.
  • Page 42: Usb Compatibility

    3 digits, although trailing zeroes can be omitted. 14.1 USB Compatibility Although intended as a generic USB interface, not all memory sticks will work in the TY96/TY97. A Trig branded USB stick is supplied with each radio; the Trig USB stick will work correctly.
