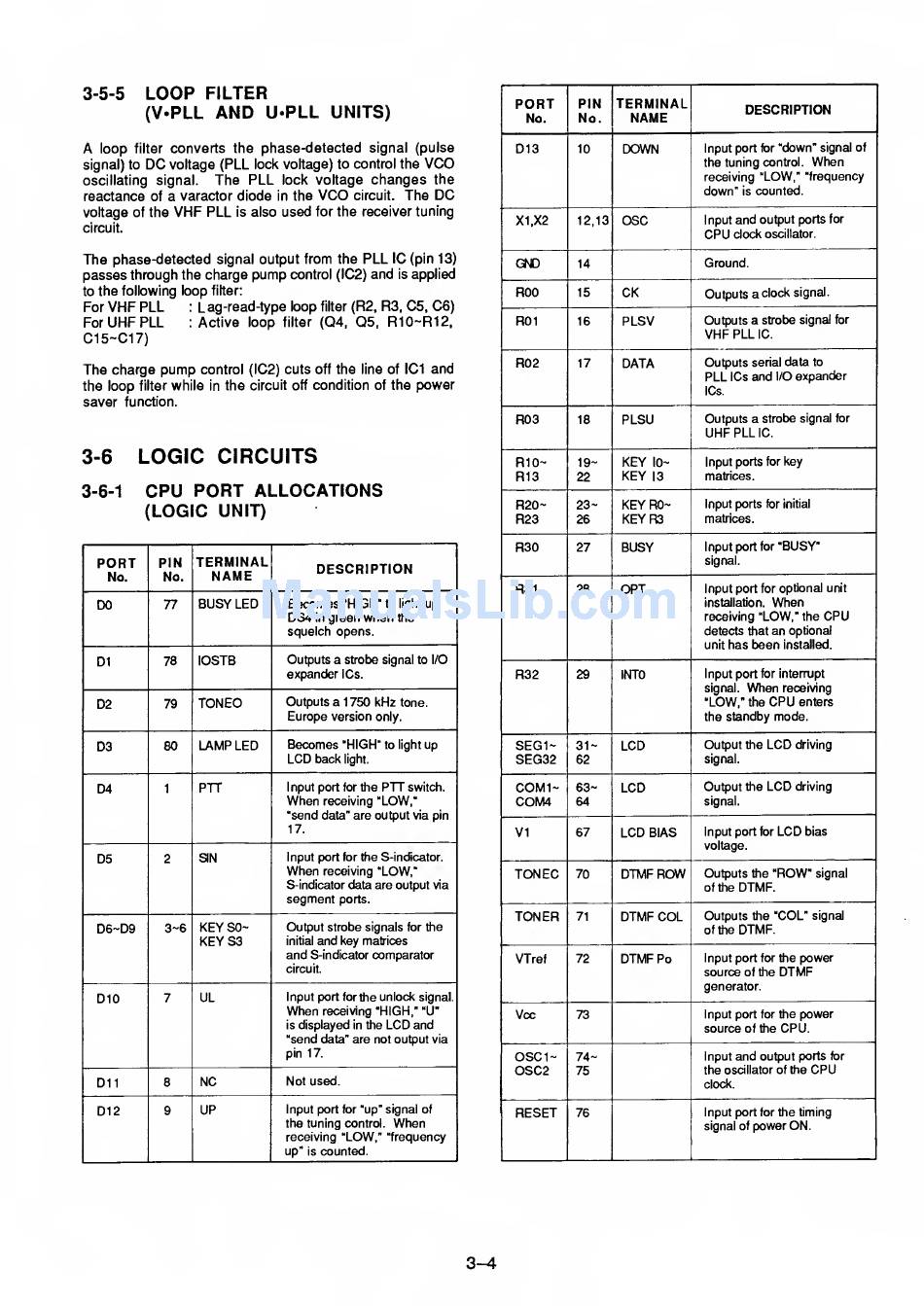

3-5-5
LOOP
FILTER
(V«PLL
AND
U*PLL
UNITS)
A
loop
filter
converts the phase-detected signal (pulse
signal) to
DC
voltage
(PLL
lock voltage) to control
the
VCO
oscillating signal.
The PLL
lock
voltage
changes
the
reactance
of
a varactor diode
in
the
VCO
circuit.
The
DC
voltage
of
the
VHP
PLL
is
also
used
for
the receiver tuning
circuit.
The
phase-detected signal
output from the
PLL
1C (pin 13)
passes
through the charge
pump
control (IC2)
and
is
applied
to
the following
loop
filter:
For
VHF
PLL
:
Lag-read-type
loop
filter
(R2,
R3. C5, C6)
ForUHFPLL
:
Active loop
filter
(Q4.
Q5.
R10~R12.
C15~C17)
The
charge
pump
control (IC2)
cuts
off
the
line of
IC1
and
the loop
filter
while
In
the
circuit off
condition of the
power
saver
function.
3-6
LOGIC
CIRCUITS
3-6-1
CPU PORT ALLOCATIONS
(LOGIC
UNIT)
PORT
No.
PIN
No.
TERMINAL
NAME
DESCRIPTION
DO
77
BUSY
LED
Becomes
"HIGH"
to light
up
DS4
in
green
when
the
squelch opens.
D1
78
lOSTB Outputs
a
strobe
signal to I/O
expander
ICs.
D2 79
TONEO
Outputs a
1
750 kHz
tone.
Europe
version
oniy.
D3 80
LAMP
LED
Becomes
"HiGH"
to iight
up
LCD
back
iight.
D4
1
PTT
input port
for the
PTT
switch.
When
receiving
"LOW."
"send data" are output
via pin
17.
D5
2
SIN
input port
for
the
S-indicator.
When
receiving
"LOW,"
S-indicator
data are output
via
segment
ports.
D6-D9
3-6
KEY
SO-
KEY
S3
Output
strobe signals
for
the
initial
and
key matrices
and
S-indicator
comparator
circuit.
D10 7
UL
input port for
the uniock
signal.
When
receiving "HIGH," "U"
is
displayed
in
the
LCD
and
"send data" are not output
via
pin 17.
Dll 8
NC Not
used.
D12
9
UP
Input port
for
"up" signal
of
the tuning
controi.
When
receiving
"LOW,"
"frequency
up"
is
counted.
PORT
No.
PIN
No.
TERMINAL
NAME
DESCRIPTION
D13
10
DOWN
Input port for
"down"
signal of
the tuning control.
When
receiving
"LOW," "frequency
down"
is
counted.
XI,
X2
12,13
OSC
Input
and output
ports for
CPU
clock oscillator.
GND
14
Ground.
ROO
15
CK
Outputs
a clock signal.
R01
16
PLSV
Outputs
a
strobe signal for
VHF
PLL
1C.
R02
17
DATA
Outputs
serial
data
to
PLL
ICs
and
I/O
expander
ICs.
R03
18
PLSU
Outputs
a
strobe signal
for
UHFPLLIC.
RIO-
R13
19-
22
KEY
10-
KEY
13
Input ports for
key
matrices.
R20-
R23
23-
26
KEYRO-
KEYR3
Input ports
for
initial
matrices.
R30
27
BUSY
Input port for
"BUSY"
signal.
R31
28
OPT
Input port for
optional
unit
installation.
When
receiving
"LOW,"
the
CPU
detects
that
an
optional
unit
has been
installed.
R32
29
INTO
Input port for interrupt
signal.
When
receiving
"LOW,"
the
CPU
enters
the
standby mode.
SEG1-
SEG32
31-
62
LCD Output
the
LCD
driving
signal.
COM1-
COM4
63-
64
LCD Output
the
LCD
driving
signal.
VI
67 LCD
BIAS Input port
for
LCD
bias
voltage.
TON
EC
70
DTMF
ROW
Outputs
the
"ROW"
signal
of the
DTMF.
TONER
71
DTMF COL
Outputs the
"COL"
signal
of the
DTMF.
VTref
72
DTMF
Po
Input port
for
the
power
source of the
DTMF
generator.
Vcc 73
Input port for
the
power
source of the
CPU.
OSC1-
OSC2
74-
75
Input
and
output ports for
the oscillator of the
CPU
clock.
RESET
76 Input port
for
the timing
signal of
power
ON.
3-4
