- Page 1 24-BIT DIGITAL MIXER QUICKSTART GUIDE ENGLISH ( 3 – 8 ) GUÍA DE INICIO RÁPIDO ESPAÑOL ( 10 – 15 ) GUIDE D’UTILISATION SIMPLIFIÉ FRANÇAIS ( 17 – 22 ) GUIDA RAPIDA ITALIANO ( 24 – 29 ) KURZANLEITUNG DEUTSCH ( 31 – 36 )
-
Page 3: Box Contents
Safety & Warranty Information Booklet REGISTRATION Please go to http://www.numark.com to register your X1USB. Registering your product ensures that we can keep you up-to-date with any last-minute product developments and provide you with world-class technical support, should you run into any problems. -
Page 4: Connection Diagram
CONNECTION DIAGRAM TURNTABLES COMPUTER MICROPHONE HEADPHONES HOUSE AMP CD BURNER TAPE DECK CD PLAYERS... -

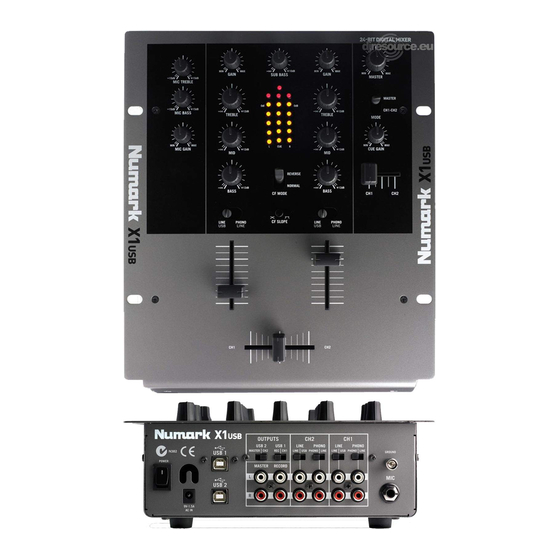

Page 5: Rear Panel Features
REAR PANEL FEATURES MIC INPUT – Connect a ¼” microphone to this input. Microphone controls are located on the top panel. LINE | PHONO INPUTS (RCA) – Connect your audio sources to these inputs. These inputs can accept both line and phono-level signals. (See #3.) LINE | PHONO SWITCH –... -
Page 6: Top Panel Features
Note: The crossfader is user-replaceable if it should ever wear out. Simply remove the facepanel, then remove the screws holding it in position. Replace the fader with a quality authorized replacement from your local Numark retailer only. CROSSFADER (CF) MODE – Reverses the assignment of Channels 1 and 2 on the crossfader. -
Page 7: Usb Operation
USB OPERATION The X1USB is equipped with two USB ports which allow you to play content from your computer through the mixer, or record audio from the mixer directly into your favorite software application. The USB interface on your mixer works with your computer just like a standard USB sound card. In addition, the USB interface is class-compliant, so there are no special drivers or software to install;... -
Page 8: Mac Configuration
MAC CONFIGURATION Turn on your computer and the X1USB. Use a USB cable to connect one (or both) ports of the X1USB to your computer. Windows will immediately recognize the mixer as a “USB Audio Device” or “USB Audio CODEC”. To change system audio preferences on a Mac, you will need to access the Audio MIDI Setup preferences located in Applications... -
Page 10: Specifications
SPECIFICATIONS ANALOG I/O: Signal-to-Noise Ratio (unweighted): > 95dB @ 1kHz (full path) Frequency Response: 20Hz – 20kHz (±0.1dB) Total Harmonic Distortion: < 0.01% USB I/O: Signal-to-Noise Ratio (JIS-A weighted): > 85dB Frequency Response: 20Hz – 20kHz (±0.1dB) Total Harmonic Distortion: <... - Page 12 www.numark.com...
