Numark M101USB - All-Purpose Mixer with USB Manual

BOX CONTENTS

• M101USB
• AC Power Adapter
• Quickstart Guide
• Safety & Warranty Information Booklet

REGISTRATION

Please go to http://www.numark.com to register your M101USB. Registering your product ensures that we can keep you up-todate with any last-minute product developments and provide you with world-class technical support, should you run into any problems.

GROUND RULES

1. Make sure all items listed in the BOX CONTENTS section are included in the box.
2. READ SAFETY & WARRANTY INFORMATION BOOKLET BEFORE USING THE PRODUCT.
3. Study the connection diagram in this guide.
4. Place mixer in an appropriate position for operation.
5. Make sure all devices are turned off and all faders and gain knobs are set to "zero."
6. Connect all stereo input sources as indicated in the diagram.
7. Connect the stereo outputs to power amplifier(s), tape decks, and/or other audio sources.
8. Plug all devices into AC power.
9. Switch everything on in the following order:
   • Audio input sources (i.e. turntables, CD players, etc.)
   • Mixer
   • Last, any amplifiers or output devices
10. When turning off, always reverse this operation by:
    • Turning off amplifiers
    • Mixer
    • Last, any input devices

CONNECTION DIAGRAM

AUDIO SETUP

The M101USB is a class-compliant device that can be used with any digital audio workstation or recording software that supports USB audio. To enable your M101USB to send and receive audio to and from your computer, follow the instructions below for your computer's operating system:

Be sure your audio software program is set up to receive audio via the M101USB. This can usually be done in your software's "Preferences" or "Device Setup." Please consult your software manual for more information.
* If you have other USB audio devices connected to your computer, which may have identical names, you may need to try selecting each one until the M101USB is recognized.
By default, Windows 7 and Vista users will not hear their computers' system sounds when playing or recording audio with M101USB because Windows' "Exclusive Mode" is already activated. However, if you want to use M101USB as your sound card with several different software programs, we recommend disabling "Exclusive Mode." To do this, follow Steps 1-6 of the setup instructions, then uncheck both boxes under "Exclusive Mode."

WINDOWS 7:

1. Use the included cable to connect the M101USB to your computer.
2. Go to Start Menu Control Panel Hardware and Sound Sound.
3. Click the Playback tab and select USB Audio Codec* as the default device.
4. Click the Recording tab and select USB Audio Codec* as the default device.
5. Click Properties in the lower right-hand corner.
6. In the new window, click the Advanced tab and select 2-channel, 16-bit, 44100 Hz (CD Quality) as the default format.
7. Click OK to close the Properties window.
8. Click OK to close the Sound control panel.

WINDOWS VISTA:

1. Use the included cable to connect the M101USB to your computer.
2. Go to Start Menu Control Panel Sound. (If you don't see Sound, select Switch to Classic View, and the Sound Control Panel should become available.)
3. Click the Playback tab and select USB Audio Codec* as the default device.

4. Click the Recording tab and select USB Audio Codec* as the default device.
5. Click Properties in the lower right-hand corner.
6. In the new window, click the Advanced tab and select 2-channel, 16-bit, 44100 Hz (CD Quality) as the default format.
7. Click OK to close the Properties window.
8. Click OK to close the Sound control panel.

WINDOWS XP:

1. Use the included cable to connect the M101USB to your computer.
2. Go to Start Menu Control Panel Sounds and Audio Devices.
3. Click theAudio tab.
4. Under Sound Playback and Sound Recording, select USB Audio Codec* as the default device.
5. Click OK.

MAC:

1. Use the included cable to connect the M101USB to your computer.
2. Go to Applications Utilities Audio MIDI Setup.
3. In the Audio Devices tab under System Settings, select USB Audio Codec* as your Default Input and Default Output.
4. Close the window.

REAR PANEL FEATURES

1. POWER SWITCH – Turns the mixer on and off.
   Turn on the mixer after all input devices have been connected and before you turn on amplifiers. Turn off amplifiers before you turn off the mixer.
2. AC IN – Use the included power adapter to connect the mixer to a power outlet. While the power is switched off, plug the power supply into the mixer first, then plug the power supply into a power outlet.
   Note: The mixer is designed to work with the included power supply only. Using an incompatible power supply could result in damage to the unit.
3. MASTER OUTPUT (RCA) – Use standard RCA cables to connect this output to a speaker or amplifier system. The level of this output is controlled by the MASTER knob on the top panel.
4. LINE INPUTS (RCA) – Connect line-level devices, such as CD players, samplers or audio interfaces, to these inputs.
5. PHONO INPUTS (RCA) – Connect phono-level devices, such as turntables, to these inputs.
6. USB – Connect this USB port to to a free USB port on your computer using a standard USB cable (sold separately). When Channel 2's INPUT SELECTOR is set to "USB," any audio playing on your computer will be sent over Channel 2. When Channel' 2's INPUT SELECTOR is set to "LINE" or "PHONO," M101USB's Program mix will be sent to your computer (for recording, monitoring, etc.). Please see USB OPERATION for more information.
7. GROUNDING TERMINAL – If you are using phono-level turntables with a grounding wire, connect the grounding wire to these terminals. If you experience a low "hum" or "buzz", this could mean that your turntables are not grounded.
   Note: Some turntables have a grounding wire built into the RCA connection and, therefore, nothing needs to be connected to the grounding terminal.

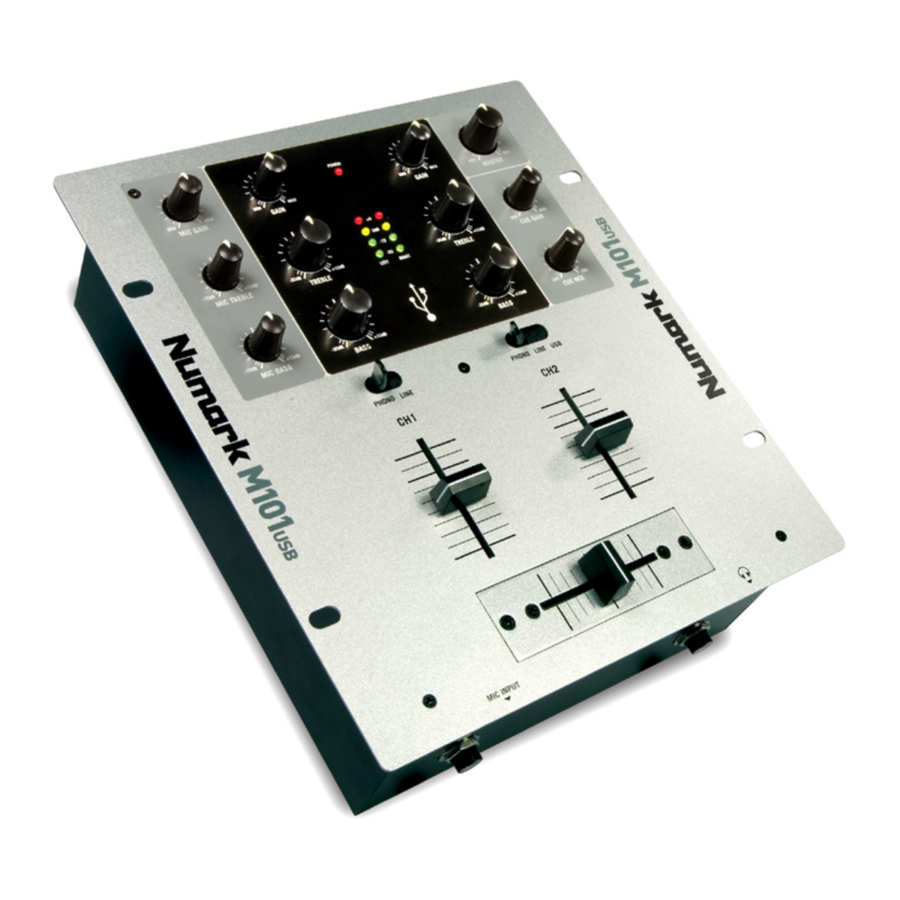

TOP PANEL FEATURES

1. POWER LED – Illuminates when the mixer is on.
2. STEREO LEVEL INDICATOR – Displays the audio level of the Program mix.
3. MASTER – This control adjusts the output volume of the Program mix.
4. MIC GAIN – Adjusts the audio level of the microphone signal.
5. MIC TREBLE – Adjusts the high (treble) frequencies of the microphone channel.
   Tip: If you experience feedback when using a microphone at loud levels, try turning down the high frequencies.
6. MIC BASS – Adjusts the low (bass) frequencies of the microphone channel.
7. CUE GAIN – Adjusts the level of the headphone audio.
8. CUE MIX – Turn to mix between Channels 1 and 2 in the headphones. When all the way to the left, only Channel 1 will be heard. When all the way right, only Channel 2 will be heard.
9. CHANNEL GAIN – Adjusts the corresponding channel's pre-fader and pre-EQ gain level.
10. CHANNEL TREBLE – Adjusts the high (treble) frequencies of the audio on the corresponding channel.
11. CHANNEL BASS – Adjusts the low (bass) frequencies of the audio on the corresponding channel.
12. INPUT SELECTOR – Selects the input source to be routed to the corresponding channel. Input jacks are located on the rear panel.
13. CHANNEL FADER – Adjusts the audio level on the corresponding channel.
14. CROSSFADER – Blends audio playing between Channels 1 and 2. Sliding this to the left plays channel 1 and sliding to the right plays Channel 2.
    Note: The crossfader is user-replaceable if it should ever wear out. Simply remove the facepanel, then remove the screws holding it in position. Replace the fader with a quality authorized replacement from your local Numark retailer only.
15. MIC INPUT – Connect ¼" microphones to this input. The microphone controls are located on the top panel.
16. HEADPHONES – Connect your ¼" headphones to this output for cueing and mix monitoring.
