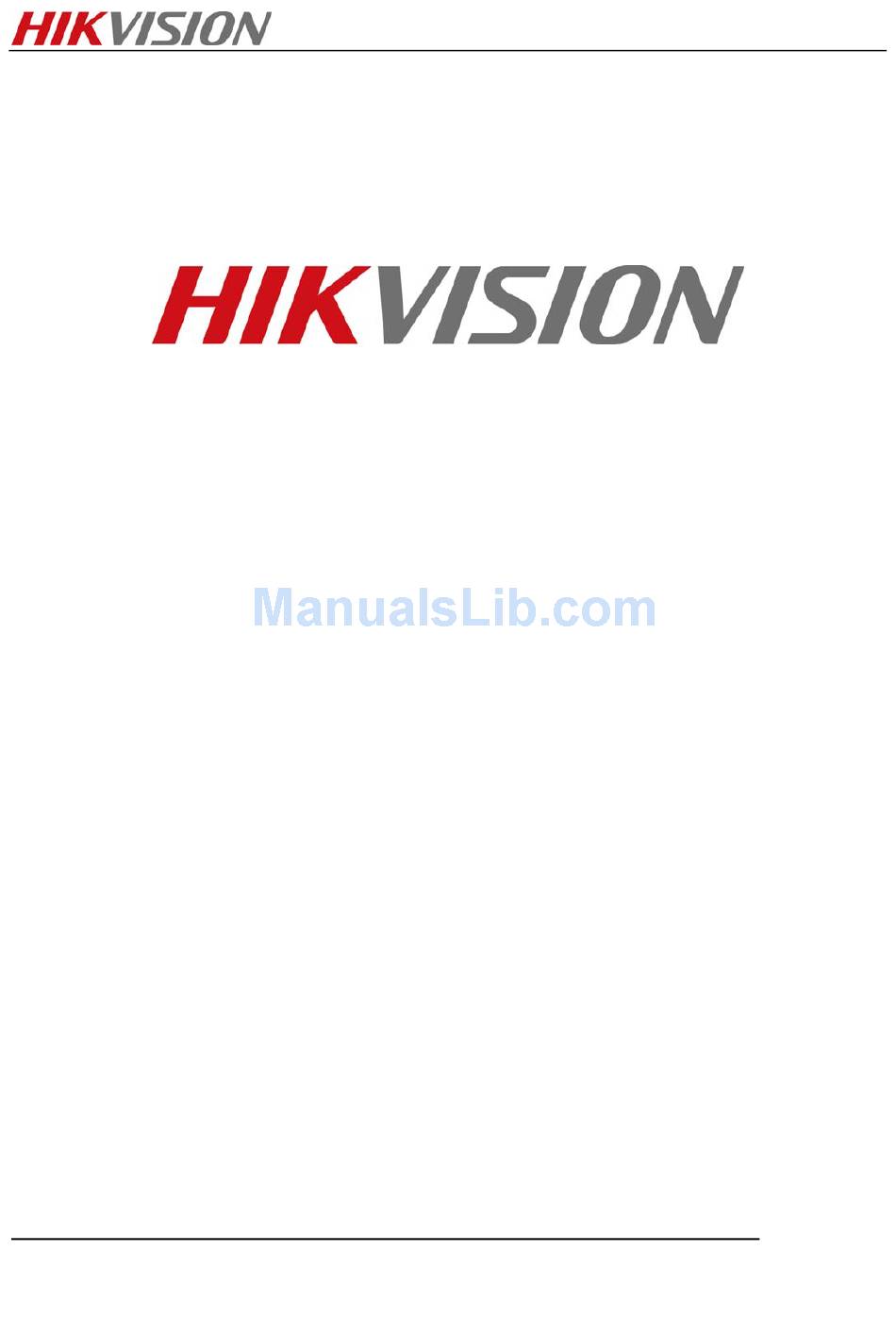

Page 1: Network Camera
Hikvision Technical Manual Network Camera Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved. - Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...
-
Page 3: Key Features
200 Presets 20°/s Pan and Tilt Preset Speed 0.3‐20°/s Pan and Tilt Manual Speed Embedded Linux OS H.264 video compression 1 channel Audio Compression Support 4CIF / DCIF / 2CIF / CIF / QCIF Real Time Compression Support SD Card for Local Recording Support Dual Stream Compression Support Motion Detection, and Notification on PC Client Support both Variable Bit Rate and Variable Frame Rate Support TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, PPPoE, etc. Support IE for Network Preview Support Sensor Alarm Input and Relay Output Support Network Voice Talk Function Compatible with Current HIKVISION DVR/DVS SDK and Client Software ©2006 – 2010 by HIKVISION. All rights reserved. -
Page 4: Specification
25fps (704 × 576) Image Settings Saturation, Brightness, Contrast, Hue adjustable through client software or web browser Network Protocols TCP / IP, HTTP, DHCP, DNS, RTP / RTCP, PPPoE (FTP, SMTP, NTP, SNMP addible) Security Password Protection Privacy Protection Prevent Previewing through Network, just Preview on the Monitor. Scan Mode Cameras controlled by the client software or remote control can scan ≤170°range Pan and Tilt Pan: 0‐170°; Range Tilt: 0‐90° Horizontal Speed 0.3 ‐ 20°/s(adjustable) Vertical Speed 0.3 ‐ 20°/s(adjustable) Pan and Tilt 20°/s Preset Speed RS‐485 Protocols HIKVISION, PELCO‐P/D (addible) Number of Preset 200 Menu Language Chinese and English, 10 characters ©2006 – 2010 by HIKVISION. All rights reserved. -
Page 5: Order Model
1 channel 3.5mm audio interface (Line level, 600Ω) 1 RJ45 10M / 100M self‐adaptive Ethernet port , 1 RS‐485 interface (802.11g WLAN Communication optional, IR Remoter optional) Alarm Input 2 channels signal input Alarm Output 1 channel relay output Video Output Test Monitor OUT 1Vp‐p Composite Output (75Ω/BNC) General Operating ‐10℃‐60℃ (14°F‐140°F),Humidity 90% or less(non‐condensing) Conditions Power Supply 12V DC, ±10% Power 9W MAX Consumption Dimension φ125 × 136.5 mm() Weight 450g() Order Model DS‐2CD726F‐PT DS‐2CD726F‐PTW DS‐2CD727PF‐PT DS‐2CD727PF‐PTW DS‐2CD728PF‐PT DS‐2CD728PF‐PTW ©2006 – 2010 by HIKVISION. All rights reserved. - Page 6 Hikvision Technical Manual Dimension ©2006 – 2010 by HIKVISION. All rights reserved.
