Hikvision Technical Manual
DS-2CD733F-E(I) Network Camera
Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-2CD733F-E(I) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-2CD733F-E(I)

Summary of Contents for HIKVISION DS-2CD733F-E(I)

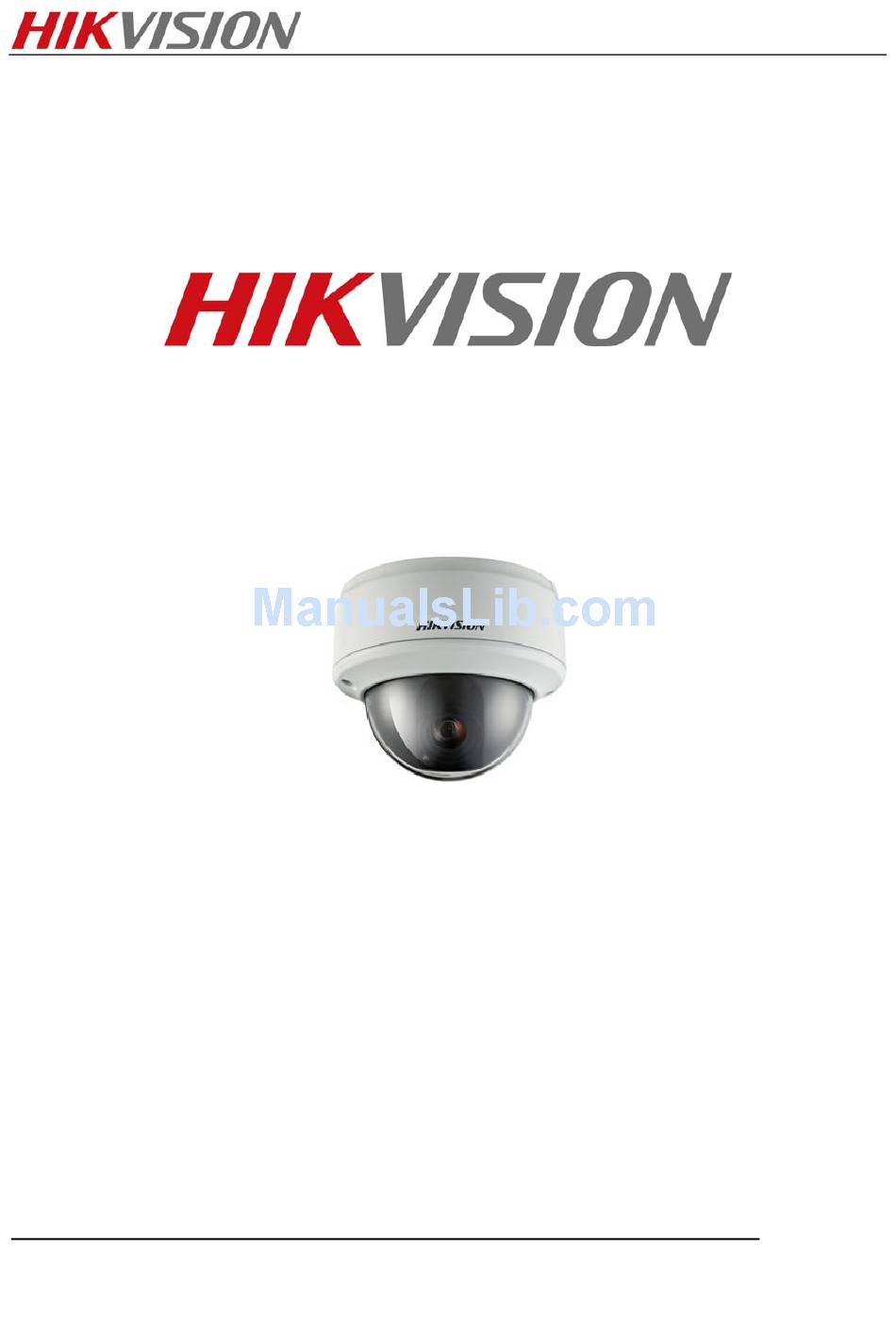

  • Page 1 Hikvision Technical Manual DS-2CD733F-E(I) Network Camera Technical Manual ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...
  • Page 3 Hikvision Technical Manual Contents 1. Key Features 2. Specifications 3. Dimension ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 4 Hikvision Technical Manual 1. Key Features Real time video at VGA (640 × 480)  Standard H.264 video compression with high compression ratio  Support dual streams, and the sub stream used for the mobile phone surveillance  Up to 32 GB SD/SDHC card local storage  Two‐way audio  PoE (Power over Ethernet)  Auto iris, electronic shutter for different environment  Complete function: heartbeat, PTZ control, alarm, reset button and so on  Local analog video output, convenient for adjustment and installation  3‐axis (pan/tilt/rotation) positioning allows adjustment for optimum camera rotation and placement  Impact Protection: IEC60068‐2‐75 test, Eh, 50J; EN50102, up to IK10  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 5 Video Compression    H.264/MJPEG  Bit Rate  32 Kbps – 8 Mbps  Audio Compression  G.711 (G.722.1 optional)  Dual Stream  Yes  Image  Max. Image  640 × 480  Resolution  50 Hz: 25 fps (640 × 480)  Frame Rate  60 Hz: 30 fps (640 × 480)  Saturation, Brightness, Contrast adjustable through client software or web  Image Setting  browser  Network  Network Storage  NAS (iSCSI optional)  Motion detection, Network disconnect , IP address conflict, Storage  Alarm Trigger  exception  TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP  Protocols  (SNMP, HTTPS, SIP, FTP, SRTP, 802.1x, IPv6 optional)  Security  Password protection, Watermark  System  ONVIF, PSIA, CGI  Compatibility  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 6 Alarm Input  2    Alarm Output  2  Video Output  1Vp‐p composite output (75 Ω/RCA)  Local Storage  Built‐in SD/SDHC slot, up to 32 GB  Reset Button  Yes  General  Operating  ‐10 °C – 60 °C (14 °F – 140 °F)  Conditions  Humidity 90% or less (non‐condensing)  12 V DC ± 10%    Power Supply  PoE (802.3af)  Power  Max. 4.5 W  Consumption  ‐I: Max. 6 W (Max. 6.5 W with IR cut filter on)  Impact Protection  IEC60068‐275Eh, 50J; EN50102, up to IK10  IR Range  ‐I: approx 10 to 20 meters  Dimension  Φ 140 × 114 mm (Φ 5.51” × 4.49”)  Weight  1400 g (3.09 lbs)  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 7                                               Indoor in‐ceiling mount                              Vandal‐proof wall mount    DS‐1227ZJ                                                      DS‐1229ZJ    ©2006 – 2011 by HIKVISION. All rights reserved.
