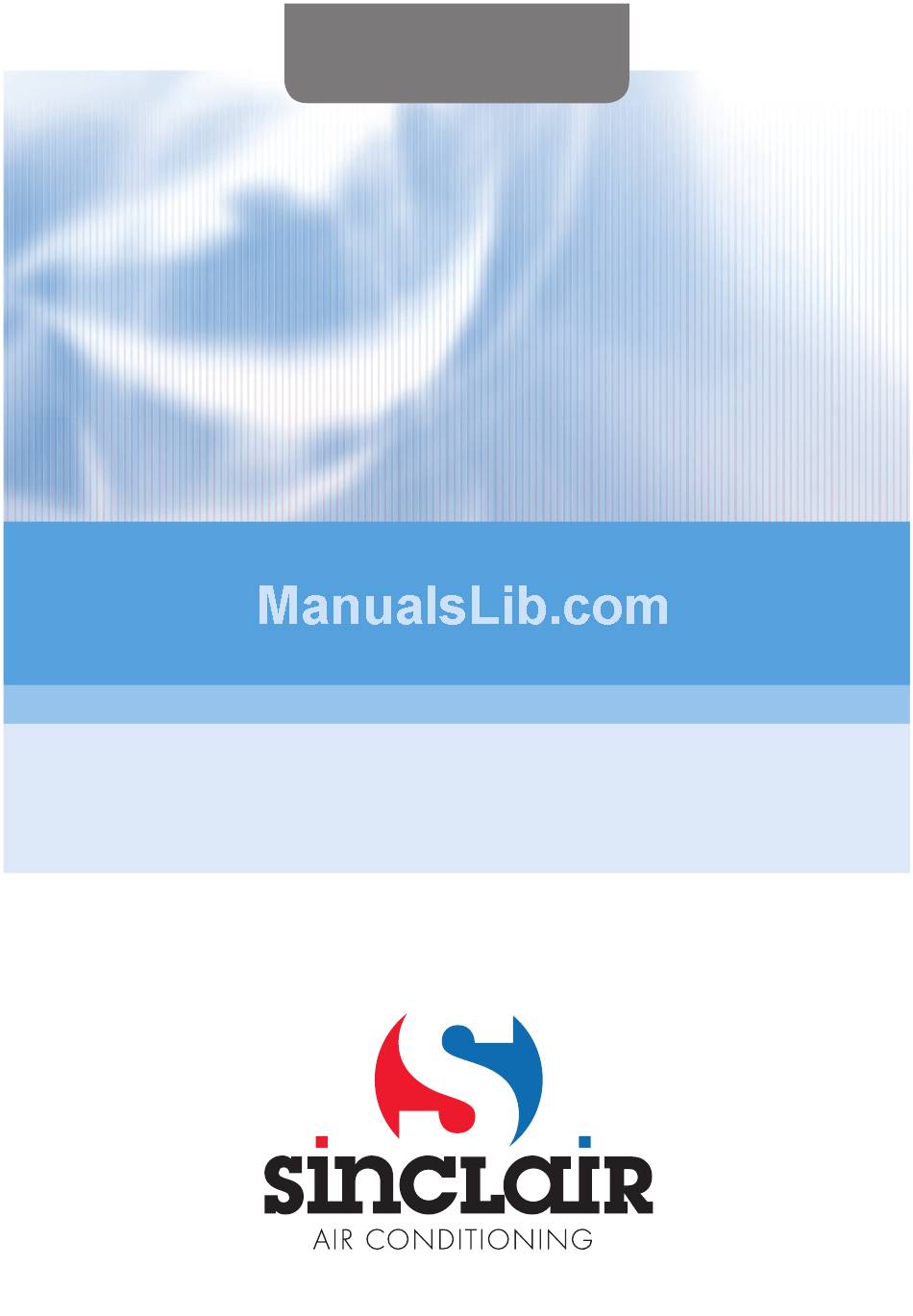

- Page 1 USER'S MANUAL FREE COMBI SERIES FC-H07AIF, FC-H09AIF, FC-H12AIF...
- Page 2 ............................................................................................................. ..
-
Page 3: Table Of Contents
The selection of installation location Install the indoor unit Test operation and check after installation Installation and Maintenance of Healthy Filter Thank you for choosing SINCLAIR air conditioner, please read this owner's manual carefully before operating the unit and keep it carefully for consultation. -
Page 4: The Instructions Before Use
(Please read the following carefully before operating the unit.) WARNING Don't insert your hands or ★ Never damage the wires Earth: It must be reli- stick into the air intake or use the inapplicable wires. ably earthed. The earth Otherwise, it may cause elec- or outlet vents. - Page 5 ★ Don't use fuse excluding ★ Keep chemical spray away from the outdoor un- the fuse of correct capacity. it for more than 1 meter. Improper wire could cause the It is likely to ignite and ex- break down or fire. plore.
-
Page 6: Models And Specifications
Models and specifications Model FC-H07AIF FC-H09AIF FC-H12AIF Cooling capacity(W) 2100 3500 2900 Heating capacity(W) 2600 2800 3800 Rated power supply 220-240V~ 50Hz Noise dB(A) Climate Type IP24 Waterproof level Isolation Weight(kg) Indoor unit boundary 1000×290×150 dimensions(WxHxD)(mm) ＊ If there is any change, please see the nameplate for actual data. Working temperature range Indoor side DB/WB( ) Maximum cooling... -
Page 7: Names And Functions Of Each Part
Names and functions of each part Air in Displayer Front panel Guide louver Air out Wrapping tape Wireless remote control ４... -
Page 8: Wireless Remote Control Opreation Procedure
Wireless remote control operation procedure The remote control sends signals to the appliance. 1. Liquid crystal display 2. MODE button Used to select the operating mode. 3. FAN button Used to set the fan speed, in sequence, to automatic, low, medium, high. 4. -
Page 9: Change Batteries For The Wireless Remote Control
HOW TO FIT THE BATTERIES . Remove the cover of the battery compartment in the direction of d the arrow. . Fit the new batteries, making sure the (+) and (-) signs on the battery match correctly. . Put the cover back on by sliding it into position. - Page 10 OPERATING MODES 1. Selecting the operating mode Each time that the MODE button is pressed the operating mode is changed, in the following sequence: AUTO COOLING FAN ONLY HEATING 2. FAN mode Each time that the FAN button is pressed, the speed is speed is changed, in the following sequence: AUTO...
- Page 11 4. Starting the appliance Press the button When the unit is switched on it will start operating in the mode selected prior to being switched off. 5. Adjusting the air flow Pressing the "SWING" button starts moving the air flow louvers start automatically;...
- Page 12 AUTOMATIC START After having switched the appliance off, press the T-ON button to set the time you want the air-conditioner to switch back on; pressing the T-ON button again increases the time by 30 minutes, until a maximum of 24 hours from when the TIMER is set.
- Page 13 DEHUMIDIFICATION MODE Press the MODE button until displaying the DRY ( ) mode. The appliance will start according to the room temperature and the set temperature: • If the room temperature is lower than the set temperature, the compressor, the outdoor unit will stop.
-
Page 14: The Best Operating Methods
The best operating methods It aims at saving the energy and operating the unit conveniently and safely. Adjust to the suitable temperature. Too cool will do harm to the health. Clean the air filter seriously and maintaining it carefully . Please take out the batteries from the wireless remote... -
Page 15: User Notices
User notices ● Select the most appropriate temperature. The airflow direction can be adjusted app- ropriately. It can preclude the electricity wasted. When the unit is running, adjust up and down adjusting plate by wireless remote control can adjust vertical direction of air, hold the adjust plate that control left and rignt direction Keep room coo- ler than outside... -
Page 16: Care And Maintenance
◆ Care and Maintenance Warning Stop the unit and pull out the plug before cleaning the unit,or electic shock will be happened. Don't get wet the unit,for it will cause the electric shock,make sure don't wash the unit by water. The volatile liquid,such as thinner or gas will damage the face of unit. -
Page 17: Trouble Shooting
Check before use 1. Be sure that nothing obstructs the air outlet and intake vents. 2. Check that whether ground wire is properly connected or not. 3. Check that whether the batteries of air connectioner are changed or not Maintenance after use 1. - Page 18 Trouble Shooting Phenomenon There's unusual smell blowing from the This is caused by the odors in the outlet after operation is started. room which have been breathed into the air conditioner. Sound of water flow can be heard This is caused by the refrigerant flowing inside the unit.
- Page 19 Phenomenon Trouble Shooting ・ Wireless remote control is not available. Remote control can't be used occasionally w h e n t h e a i r c o n d i t i o n e r i s d i s t u r b e d o r changing its functions frequently.
-
Page 20: Installation Dimension Diagram
The installation must be done by trained and qualified service personnel with reliability according to this manual. Contact service center of SINCLAIR before installation to avoid the malfunction due to unprofessional installation. When picking up and moving the units, you must be guided by trained and qualified person. -
Page 21: The Selection Of Installation Location
◆ Installation location Indoor unit The appliance shall not be installed in the laundry. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room. Install in a location from which the condensation water can be drained out conveniently and that is permitting easy connection with the outdoor unit. -
Page 22: Install The Indoor Unit
◆ Install the indoor unit Install the rear panel 1.Always mount the rear panel horizon- tally.As the water drainage pipe at the left,this side should not be too high when adjusting the rear panel.it had better to adjust this side a little lower. 2.Fix the rear panel on the selected location. -
Page 23: Install Indoor Unit
4.Connect blue wire in power connect wire onto "N(1)" terminal, black wire onto "2" terminal, brown wire onto "3"terminal, yellow-green wire (i.e. earth wire) onto " " terminal (as shown in fig.3); and press the power connect wire by wire groove that in front of line bank that installed in electric box. - Page 24 ① Right pipe ② Rear right pipe （ａ） ④ Left pipe ③ Rear left pipe （ｂ） Tailings 2 Tailings 1 Fig.4 （ｃ） Wrapping strap Coonection pipe Power connect wire Drainage hose Signal control wire Fig.5 Fig.6 ２１...
-
Page 25: Test Operation And Check After Installation
Test operation and check after installation Test operation 1. Preparation for trial run （１） Don't turn on power supply if entire installations are not completed. （２） Connect of control circuit should be correct Heating indicator ON/OFF button Cooling indicator all wire connect should be firm. Running indicator （３） ... -
Page 26: Installation And Maintenance Of Healthy Filter
Installation and Maintenance of Healthy Filter Installation Instructions 1. Forcibly pull the panel for a specific angle from the two ends of the front panel according to the arrow direction. Then pull the air filter downwards to remove it. (See Fig.a) Fig.
