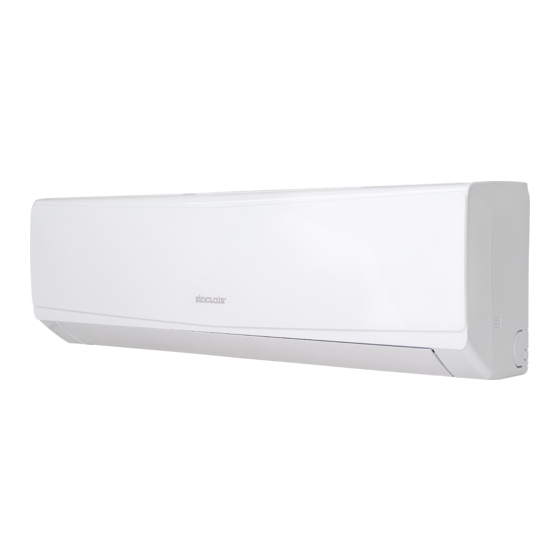

Sinclair SIH-09BIK Installation Manual
Hide thumbs Also See for SIH-09BIK:

Advertisement

Installation Manual
EN
| - -
Ver.
01
06 03 2021
KEYON SERIES
INDOOR UNITS
SIH-09BIK
SIH-12BIK
SIH-18BIK
SIH-24BIK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIH-09BIK and is the answer not in the manual?

Questions and answers

Summary of Contents for Sinclair SIH-09BIK

  • Page 1 Installation Manual | - - Ver. 06 03 2021 KEYON SERIES INDOOR UNITS SIH-09BIK SIH-12BIK SIH-18BIK SIH-24BIK...
  • Page 2 I M P O R T A N T N O T E : Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
  • Page 3: Explanation Of Symbols

    Explanation of Symbols WARNING This symbol indicates the possibility of death or serious injury. This symbol indicates the possibility of injury or damage to CAUTION property. Indicates important but not hazard-related information, used NOTICE to indicate risk of property damage. Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons.
  • Page 4 The refrigerant This appliance is not intended for use by persons Before install the Appliance filled (including children) with reduced physical, sensory appliance, read with flammable t i l i rience an d the installation gas R32. knowledge, unless they have been given superv- manual first.
  • Page 5: Maintenance Notes

    Safety operation of flammable refrigerant Installation notes Check whether there is fire source or potential fire source in the maintenance area. The air conditioner must be installed in a room - The naked flame is prohibited in the mainte- that is larger than the minimum room area. The nance area;...
  • Page 6: Safety Precautions

    Safety precautions WARNING Installation Installation or maintenance The grounding resistance must be performed by qua- should comply with nation- lified professionals. al electric safety regula- The appliance shall be in- tions. stalled in accordance with Air Conditioner should be national wiring regulations. properly grounded.
  • Page 7 Safety precautions CAUTION Installation Instructions for installation For the air conditioner with- and use of this product are out plug, a circuit breaker provided by the manufac- must be installed in the turer. line. Select a location which is The yellow-green wire in out of reach for children air conditioner is ground- and far away from animals...
  • Page 8: Operation And Maintenance

    Safety precautions WARNING Operation and Maintenance tioner to multi-purpose soc- This appliance can be used ket. Otherwise, it may cau- by children aged from 8 se fire hazard. years and above and per- Do disconnect power supp- sons with reduced physi- ly when cleaning air condi- cal, sensory or mental ca- tioner.
  • Page 9 Safety precautions CAUTION Operation and Maintenance frequently. Do not spill water on the re- Air conditioner gives off mote controller, otherwise burning smell. the remote controller may Indoor unit is leaking. be broken. Do not use fire or hair dry- er to dry the filter to avoid deformation or fire hazard.
  • Page 10: Parts Name

    Parts name Indoor Unit air inlet panel filter aux.button horizontal louver air outlet ■ If remote controller is lost or damaged, please use aux. button to turn on or turn off the air conditioner. The operation in details is as below: As shown in the figure, open panel and press aux.button to turn off the air conditioner.
  • Page 11: Buttons On Remote Controller

    Operation and introduction of remote controller Introduction for icons on display Buttons on remote controller screen I feel Set fan speed Turbo mode Send signal Auto mode Cool mode Dry mode Fan mode Heat mode Sleep mode 8℃ heating function Health mode Scavenging function X-FAN function...
  • Page 12: Introduction For Buttons On Remote Controller

    Introduction for buttons on After energization, Auto mode is defaulted. In Auto remote controller mode, the set temperature will not be displayed on NOTE the LCD, and the unit will automatically select the ● This is a general use remote controller. It could be suitable operation mode in accordance with the room used for the air conditioner with multifunction.
  • Page 13 NOTE I FEEL button ● Outdoor temperature display is not available for some Press this button to turn on I FEEL function. The models. At that time, indoor unit receives " " unit automatically adjust temperature according to signal, while it displays indoor set temperature. the sensed temperature.
  • Page 14: Replacement Of Batteries In Remote Controller

    WiFi button Replacement of batteries in remote controller Press "WiFi" button to turn on WiFi function, "WiFi" icon will be displayed on the remote controller; Hold "WiFi" button for 5s to turn off WiFi function reinstall battery and "WiFi" icon will disappear. Under off status, press "MODE"...
  • Page 15: Clean And Maintenance

    Clean and maintenance WARNING ■ The filter should be cleaned every three months . If there is much dust in the operation environme- WARNING nt, clean frequency can be increased. ■ Turn off the air conditioner and disconnect the ■ After removing the filter, do not touch fins to power before cleaning the air conditioner to av- avoid injury.
  • Page 16 Checked items before maintenance Phenomenon Solution Check items Whether there’s od- General phenomenon analysis Eliminate the odour Odours are our source, such as source. Clean the Please check below ite ms before asking for furniture and cigare- emitted filter. maintenance. If the malfunction still can’t be tte, etc.
  • Page 17: Installation Notice

    Installation notice WARNING sure that the unit is running in cooling mode. Then, fully close the valve at high pressure side (liquid valve). About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power.
  • Page 18: Requirements For Electric Connection

    Selection of installation location Requirements for electric connection Basic requirement 7.If the supply cord is damaged, it must be repla- Installing the unit in the following places may cau- ced by the manufacturer, its service agent or se malfunction. If it is unavoidable, please consu- similarly qualified persons in order to avoid a lt the local dealer: hazard .
  • Page 19: Installation Of Indoor Unit

    Installation of indoor unit NOTE Indoor outdoor ● Pay attention to dust prevention Step 1: sures when opening the hole. Choose installation location Φ55 5-10 Φ70 Recommend the installation location to the client and then confirm it with the client. Step 2: Step 4: Install wall-mounting frame...
  • Page 20 Tightening torque (N . m) drain hose Hex nut diameter 1/4'' 15~20 3/8'' 30~40 1/2'' 45~55 insulating pipe 5/8'' 60~65 NOTE 3/4'' 70~75 ● Add insulating pipe in the indoor drain hose in order to prevent condensation. ● The plastic expansion particles are not provided. Wrap the indoor pipe and joint of connection pipe with insulating pipe, and then wrap it Step 7:...
  • Page 21 Remove the wire clip; connect the power conn- band ection wire to the wiring terminal according to the color; tighten the screw and then fix the po- wer connection wire with wire clip. SIH-09BIK indoor power cord N(1) Bind them evenly. yellow-...
  • Page 22: Test And Operation

    Test and operation Check after installation ● Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been The unit may drop, shake or installed firmly? emit noise. It may cause insufficient Have you done the refri- cooling(heating) capacity.
  • Page 23: Configuration Of Connection Pipe

    Configuration of connection pipe Additional refrigerant charging amount for R32 Standard length of connection pipe: 5m, 7.5m, Min. length of connection pipe. For the unit with standard connection pipe of 5m, there is no limitation for the min length of con- nection pipe.
  • Page 24 B: Remove the burrs smooth surface Remove the burrs with shaper and prevent the ● burrs from getting into the pipe. improper expanding pipe shaper leaning damaged crack uneven surface thickness downwards the length is equal Working temperature range For models: C: Put on suitable insulating pipe SIH-**BIK + SOH-**BIK cooling -15 ~ 43°C, heating -15 ~ 24°C...
  • Page 25 Specialist’s Manual The following checks shall be applied to instal- fire extinguishing equipment shall be available to ● lations using flammable refrigerants: hand. Have a dry powder or CO fire extinguisher adjacent to the charging area. – the charge size is in accordance with the room size within which the refrigerant containing parts are in- Ventilated area ●...
  • Page 26 Specialist’s Manual Repair to intrinsically safe components – recovery equipment and cylinders conform to ● the appropriate standards. Do not apply any permanent inductive or capaci- d) Pump down refrigerant system, if possible. tance loads to the circuit without ensuring that this e) If a vacuum is not possible, make a manifold so will not exceed the permissible voltage and current that refrigerant can be removed from various parts...
  • Page 27 Specialist’s Manual dition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery mac- hine, check that it is in satisfactory working order, has been properly maintained and that any associ- ated electrical components are sealed to prevent ignition in the event of a refrigerant release.
  • Page 28 London W1F 7LD www.sinclair-world.com This product was manufactured in China (Made in China). R E P R E S E N T A T I V E SINCLAIR Global Group s.r.o. Purkynova 45 612 00 Brno Czech Republic T E C H N I C A L S U P P O R T SINCLAIR Global Group s.r.o.
  • Page 29 N O T E S...
  • Page 30 N O T E S...
  • Page 31 N O T E S...
