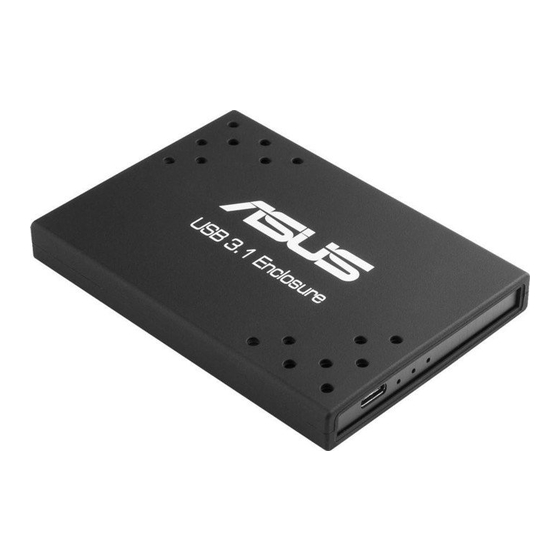

Asus USB 3.1 ENCLOSURE Quick Start Manual

Usb 3.1 gen2 type c external enclosure
Hide thumbs

Advertisement

Quick Links

USB 3.1 Enclosure
Innovatively enjoy a whole new digital experience
E10399
Copyright © ASUSTeK Computer Inc.
First Edition
All Rights Reserved
July 2015
Welcome!
Thank you for buying an ASUS® USB 3.1 Enclosure!
Before you start using the USB 3.1 Enclosure, check the items in your
package with the images below.
Package contents
NOTE: If any of the following items is damaged or missing, contact your
retailer. The illustrated items below are for reference only. Actual product
specifications may vary per country or model.
USB 3.1 Enclosure
USB Type-C to dual Type-A cable
IMPORTANT! Do not use damaged cable and other peripherals.
Parts and Features
USB 3.1 Type-C port
LED indicators
Color
Description
Blinking white
Data access (read/write)
Red
Error
White
Connected to USB 3.1 port
Specifications summary
Interface
USB 3.1 Type C port
Capacity
512 GB (with 2 x 256GB SSD in RAID 0)
Input
5V, 3A
Dimensions
101.4 x 50.5 x 9.5 mm
Up to 10Gb/s with USB 3.1
Data transfer rate*
Up to 5Gb/s with USB 3.0
Up to 480Mb/s with USB 2.0
Operating Temperature
0°C to 40°C
Non-op. temperature
-40°C to 60°C
System compatibility
Windows® 10/8.1/8/7
1 x USB Type C to dual Type A cable
Accessory
1 x Users' manual
* A certified USB 3.1/3.0 cable and interface is required to achieve optimal USB speed.
NOTE: Specifications subject to change without notice.
Getting Started
1.
Connect the USB Type-C to dual Type-A cable to the USB 3.1 Enclosure.
2.
Connect the data transfer connector (blue) of the USB Type-C to dual Type-A cable to a
USB 3.1 port on your computer.
NOTE:
We suggest to always connect the power supply connector (black) of
the cable to any USB port on your computer for stable power supply
and data transmission.
Connect the enclosure to a USB 3.1 port to achieve optimal USB
speed. Other connections will result in lower data transmission
speed..
Federal Communications Commission Interference Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits
are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to
WARNING!
the graphics card is required to assure compliance with FCC regulations.
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards
for protecting our environment. We believe in providing solutions for you to be able to
responsibly recycle our products, batteries, other components as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling
information in different regions.
