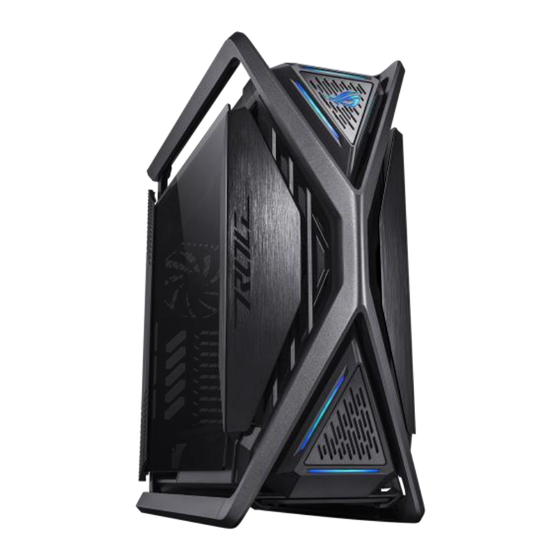

Asus GR701 Service Manual
  1. Manuals
  2. Brands
  3. Asus Manuals
  4. Enclosure
  5. GR701
  6. Service manual
Asus GR701 Service Manual

Asus GR701 Service Manual

Chassis
Hide thumbs Also See for GR701:

Advertisement

Quick Links

Download this manual
Doc. No:
Date: 2023/12
Rev.:
Chassis Service Manual
Model: GR701
Authorize by
Review by
Originator by
Form No :

Advertisement

loading
Need help?

Need help?

Do you have a question about the GR701 and is the answer not in the manual?

Questions and answers

Related Manuals for Asus GR701

Summary of Contents for Asus GR701

  • Page 1 Doc. No: Date: 2023/12 Rev.: Chassis Service Manual Model: GR701 Authorize by Review by Originator by Form No :...

  • Page 2: Copyright Information

    Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.
  • Page 3 Contents 90DC00F0-B0000C Left side door  90DC00F0-B0001C Right side door  90DC00F0-B0014C FIO module  90DC00F0-B0005C Front panel  90DC00F0-B0015C X-type aluminum component  90DC00F0-B0025C Upper right aluminum handle  90DC00F0-B0035C Upper left aluminum handle  90DC00F0-B0045C Lower right aluminum footstand ...
  • Page 4 90DC00F0-B0000C GR701 LEFT SIDE DOOR/CSC｜Left side door Contents: Left side glass*1, Warning sticker*1, Front rubber gaskets*2, Rear rubber gaskets*2 90DC00F0-B0001C GR701 RIGHT SIDE DOOR/CSC｜Right side door Contents: Right side glass*1, Warning sticker*1, Front rubber gaskets*2, Rear rubber gaskets*2...
  • Page 5 90DC00F0-B0014C GR701 FIO MODULE WW/CSC｜FIO module Fully-assembled. (Consists of FIO module*1, FIO panel*1, Flat round head M3 chassis screws*2) Disassembly method: Remove the top filter, then unscrew the screws. FAQ: FIO buttons and ports not working, Case lighting not working 90DC00F0-B0005C GR701 FRONT PANEL/CSC｜Front panel...
  • Page 6 90DC00F0-B0015C GR701 AL X/CSC｜X-type aluminum component Disassembly method: Unscrew the screws. 90DC00F0-B0025C GR701 AL RIGHT UP/CSC｜Upper right aluminum handle Disassembly method: Unscrew the screws.
  • Page 7 90DC00F0-B0035C GR701 AL LEFT UP/CSC｜Upper left aluminum handle Disassembly method: Unscrew the screws. 90DC00F0-B0045C GR701 AL RIGHT LOW/CSC｜Lower right aluminum footstand Disassembly method: Unscrew the screws.
  • Page 8 90DC00F0-B0055C GR701 AL LEFT LOW/CSC｜Lower left aluminum footstand Disassembly method: Unscrew the screws. 90DC00F0-B000EC GR701 TOP FILTER/CSC｜Top filter Fully-assembled. (Consists of Upper cover base*1, Upper cover latch*1, Upper cover mesh*2, Top cover decorative panel*1, Aluminum rivets for top cover decorative panel*6, Upper...
  • Page 9 90DC00F0-B001EC GR701 FRONT LOW FILTER/CSC｜Front and bottom filters Contents: ①Front side filters left*1, right*1 ②Bottom filter*1 Disassembly method: Simply pull them out. They have a specific orientation, so make sure not to install them upside down.
  • Page 10 90DC00F0-B0003C GR701 PWM FAN/CSC｜140mm PWM fan Disassembly method: Unscrew the four corner screws to remove it. FAQ: Case fan not spinning, Fan noise...
  • Page 11 90DC00F0-B002LC GR701 MISC FAN BRACKET/CSC｜Fan bracket Contents: ①Top water-cooling radiator bracket ②Front window water-cooling radiator bracket ③Rear fan bracket ④Motherboard water-cooling radiator bracket...
  • Page 13 90DC00F0-B0006C GR701 FAN HUB/CSC｜Fan hub Contents: Fan hub, FIO-USB ARGB cable, Power supply cable + signal input cable Disassembly method: Unscrew the three screws to remove it. FAQ: Case fan not spinning...
  • Page 14 90DC00F0-B000JC GR701 HIDE/CSC｜Cable cover panel Contents: Plastic panel*1, Suspension screws*2...
  • Page 15 90DC00F0-B0017C GR701 ACCY LIGHT PANEL/CSC｜Light panel Fully-assembled. (Consists of Light panel*1, Light panel base*1, M3 screws*5, Light panel footstand*2, Rubber foot pads*2, Glass light guide panel*1, Control board*1, ARGB cable*1, Light strip*1, Flat round head M3 chassis screws*5, Insulation sheet *1)
  • Page 16 90DC00F0-B0027C GR701 ACCY HOUSING/CSC｜Hidden drawer Fully-assembled. (Consists of Drawer base*1, Sliding cover*1, Screw cover*1, Cushion pad*1)
  • Page 17 90DC00F0-B001JC GR701 PSU COVER/CSC｜PSU cover Fully-assembled. (Consists of Cover plate*1, Rubber pad*1, Transparent side cover*1, Cable outlet*1)
  • Page 18 90DC00F0-B000LC GR701 MISC A/CSC｜Repair kits Contents: ①PCI slot cover ②2.5" HDD bracket ③Side door hinge ④Transparent side cover for power supply Left chassis foot pad*1, Right chassis foot pad*1, Back cover*4 (upper left, lower left, upper right, lower right), M5 countersunk head hexagon socket screw*2, Nylok screws*8, HDD...
  • Page 20 90DC00F0-B001LC GR701 MISC 3.5 HDD/CSC｜HDD tray Contents: Tray*2, Tray bracket*1...
  • Page 21 90DC00F0-B0007C GR701 ACCY BOX/CSC｜Accessory box Contents: HDD screws*20, Flat round head M3 chassis screws*40, Hex socket*1, Motherboard standoffs*6, Cable ties*10, USB Type-A dust covers*4, USB Type-C dust covers*2, Phillips screwdriver*1, Vertical graphics card mount*1, CPU 8-pin extension cable*2, Q-connector*1 90DC00F0-B000CC...
  • Page 22 FAQ: 1. Fan not spinning - Related components: fan, Fan hub ①Dust and debris can accumulate on the fan blades over time, causing it to stop spinning. Check for any physical obstructions that may be blocking the fan's movement and remove them.
  • Page 23 ③Two types of lighting control of GR701 (1) Self-control (2) Sync up with MB Lighting If the LED button on the FIO panel is unable to switch the lighting control, please replace the FIO module.
