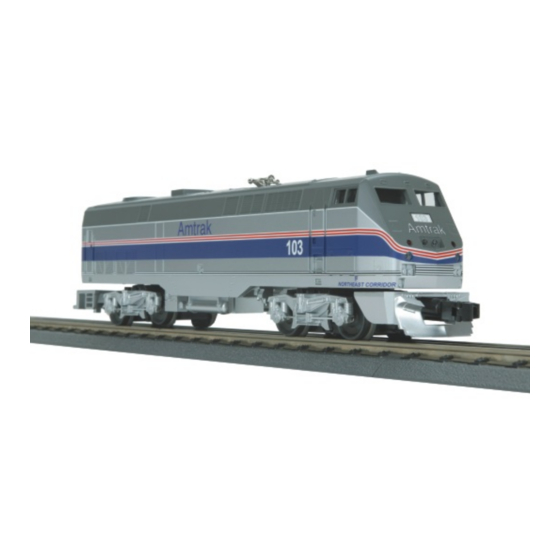

Genesis Diesel
Locomotive
(3V PS2)
Operation Manual
Operation Manual
Compatibility
This engine will operate on any traditional
O-31 Gauge track system, including
M.T.H.'s RealTrax® or ScaleTrax™ or
traditional tubular track. It is also
compatible with most standard AC
transformers. (See page 19 for a complete
list of compatible transformers and wiring
instructions.)
Thank you for purchasing this RailKing product.
PLEASE READ BEFORE USE AND SAVE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Genesis and is the answer not in the manual?

Questions and answers

Related Manuals for Rail King Genesis

Summary of Contents for Rail King Genesis

  • Page 1 Genesis Diesel Locomotive (3V PS2) Operation Manual Operation Manual Compatibility This engine will operate on any traditional O-31 Gauge track system, including M.T.H.’s RealTrax® or ScaleTrax™ or traditional tubular track. It is also compatible with most standard AC transformers. (See page 19 for a complete list of compatible transformers and wiring instructions.)

  • Page 2: Table Of Contents

    14VAC, 80 W or 18V AC 100W This product may be protected by one or more of the following patents: 6,019,289; 6,280,278; 6,281,606; 6,291,263; 6,457,681; 6,491,263; 6,604,641; 6,619,594; 6,624,537; 6,655,640. ©2004, M.T.H. Electric Trains, Columbia, MD 21046 RailKing Genesis Diesel Locomotive with Proto-Sound® 2.0...

  • Page 3: Set Up Checklist

    Cotton Swab or Rag Light Household Oil and Bearing Grease You can obtain replacement parts and replacement instructions from the M.T.H. Parts Department e-mail: parts@mth-railking.com phone: 410-381-2580 mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532 RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 4 Make sure the metal STEP STEP STEP Align Quick contacts line up. Connect Plugs Gently push together RealTrax Also functions as a binding post. Red Harness Wire/Plug Black Harness Red Harness Black Harness Wire/Plug Wire/Plug Wire/Plug RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 5 (Do Not Lube the Flat Part of Pick-Up Rollers) STEP STEP STEP Incorrect Push cars together Place the engine and cars Position to couple. on the track. Open couplers by pressing down on plunger. Position armiture for proper operation RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 6 1 Bell, 4 Horns Speed Control On/Off 1 Horn, 2 Bells (from Neutral only) Lock into a Direction 1 Horn, 3 Bells Reset to Factory Defaults 1 Horn, 5 Bells (from Neutral only) RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 7 Operator Direction Direction Direction Direction Bell Horn Horn Controls When Bell Turns Off Sound System Cued to Play Passenger Sequence Sequence Sequence Sequence Station Announcements (PSA) RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 8: Lubrication

    To complete the connection between the track and the transformer, simply plug in the color-coded wire harness that was included in your set and plug the transformer into your wall outlet. RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 9: Checking The Battery

    Basic Operation Manual Volume Control To adjust the volume of all sounds made by this engine, turn the master volume control knob located under the engine clockwise to increase the volume and counter-clockwise to RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 10: Proto-Sound 2.0 Operating Instructions

    Remove the six Phillips screws from the chassis then lift the body away from the chassis. Motor Motor Mount Mount Screw Screw STEP Remove the truck blocks from the chassis by unscrewing the large Phillips motor mount screw on the bottom of each truck block. RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 11: Passenger Station Announcements (Psa)

    ! Make sure the tire is fully seated inside the groove. Use a razor blade to trim away any excess tire that doesn't seat itself inside the groove properly. ! Reassemble the truck sides to the truck blocks. RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 12: Tips On Using Psa

    Horn buttons and can ring the bell or blow the Horn as usual. Tips on Using PSA ! You can terminate PSA at any time by turning off power to the track for 15 seconds. RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 13 Horn button, allowing approximately ½ second to lapse between each quick button press. The sound of the liftbar and air line depletion will play, and the knuckle will be released. Front Coupler: RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 14: Railware Interactive Cd Rom

    *If you are running Windows 95, 98 or NT choose the folder 32 BIT. Run the file AR32E301.EXE and follow the directions it provides. If you have problems you cannot resolve by using these directions, contact custserv@mth-railking.com or call 410-381-2580 for further help. RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 15: Self Charging Battery Back-Up

    Control Switch. Switch Should be in the “OFF” position for the rear coupler to fire. Cab Chatter Remedy Sometimes the Cab Chatter sounds don't Cab Chatter plays only in neutral at random play. intervals. RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 16 PSA after step in the PSA cycle. Wait at least 30 fourth press of the direction button. seconds in each PSA sound clip before pressing the direction button. RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 17: Transformer Compatibility And Wiring Chart

    110-Watt Standard Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 18 Programming Digital Command Operations for up to 250 Accessories and 250 Individual Switches User Can Script, Record and Playback Train Routes Operating instructions for all DCS Command features will accompany the DCS remote control equipment. RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 19 28.) Bulb ( clear ) CG-0000002 ( 12v )( small globe )( bayonet base ) 29.) Screw IA-0000022 ( M2.5x3.0mm )( roundhead ) 30.) Socket ( nickel ) CH-0000005 ( for bayonet base bulbs ) RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 20 55.) Screw IA-0000016 ( M3x6.0mm )( roundhead ) 56.) Pilot ( silver )( rear ) DG-2240001 57.) Screw IA-0000003 ( 4/40x6.0mm )( roundhead 58.) Screw ( nickel ) IA-0000015 ( M3x6.0mm )( roundhead ) RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 21 41.) Screw IA-0000021 ( 4/40x4.0mm )( roundhead ) 65.) Coupler ( black ) DD-4000006 ( mechanical )( T-Bar mounting )( 51.5mm long ) 66.) Armature ( black ) DD-4000007 ( 45.0mm long ) RailKing Genesis Passenger Set with Proto-Sound® 2.0...
  • Page 22 Genesis Genesis Engine Parts Engine Parts 57 58 (Horn Only) 1 61 (Horn Only) RailKing Genesis Passenger Set with Proto-Sound® 2.0 RailKing Genesis Passenger Set with Proto-Sound® 2.0...

  • Page 23: Service & Warranty Information
