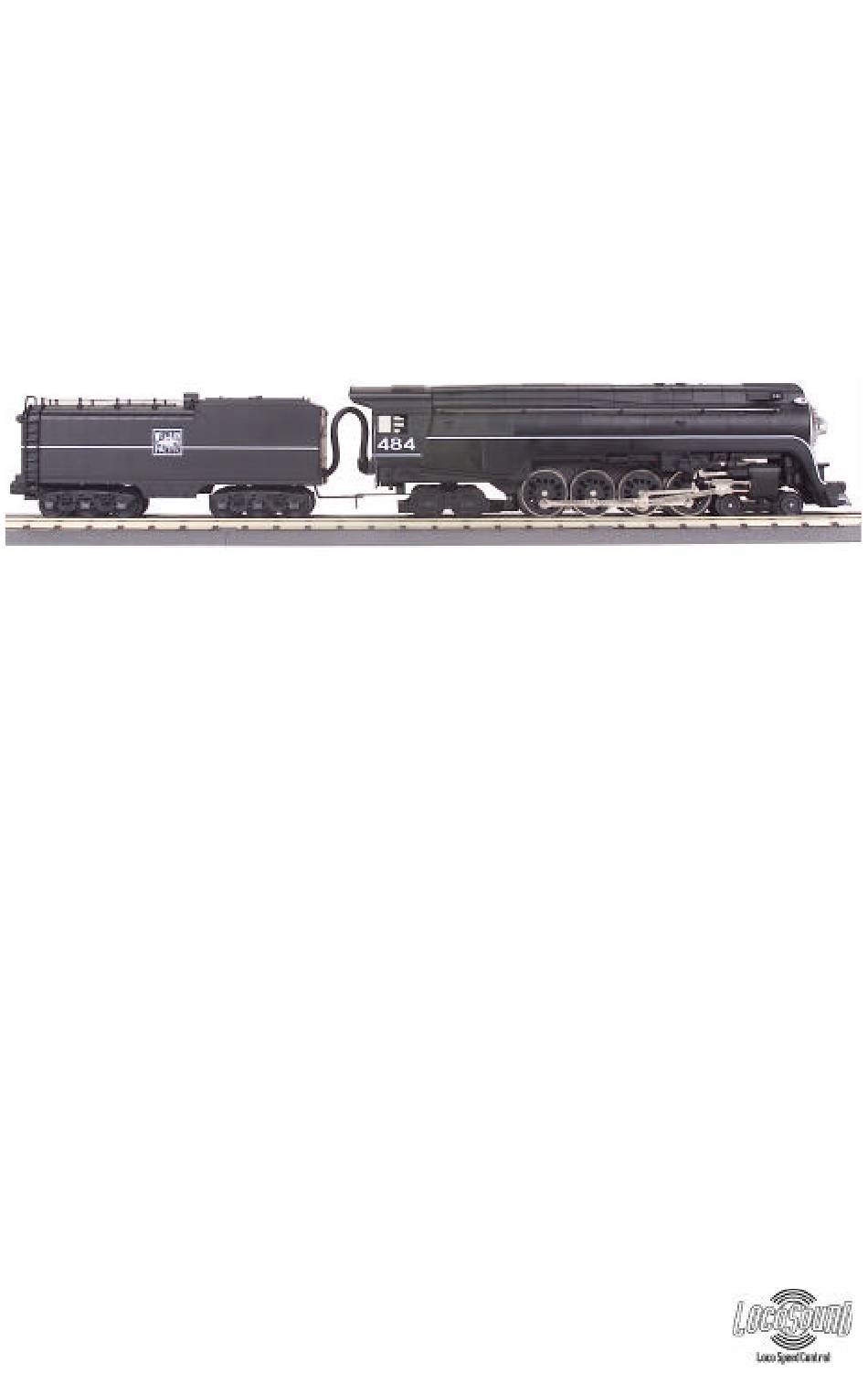

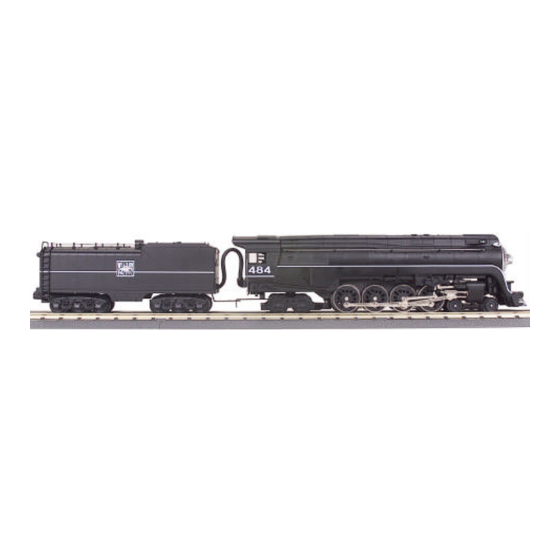

RAILKING GS-2
STEAM ENGINE
OPERATING INSTRUCTIONS
This RailKing Gs-2 Steam Engine is produced in detailed Die-Cast Metal and operates
on O-31 track. This RailKing Steam Engine contains M.T.H.'s Loco-Sound™ sound and
train control system. The locomotive is easy to operate with any compatible standard AC
transformer (see the compatibility chart on page 14), and is completely compatible with
most other 3-rail locomotives, rolling stock, and accessories.
M.T.H. takes pride in manufacturing high quality products like your RailKing steam
engine, and we hope that you will enjoy it for a long time. Please read all the
accompanying instructions carefully before setting up and operating your locomotive.
With proper care, this engine should yield years of trouble-free performance.
Advertisement
Table of Contents
Related Manuals for Rail King GS-2 STEAM ENGINE
Summary of Contents for Rail King GS-2 STEAM ENGINE
- Page 1 STEAM ENGINE OPERATING INSTRUCTIONS This RailKing Gs-2 Steam Engine is produced in detailed Die-Cast Metal and operates on O-31 track. This RailKing Steam Engine contains M.T.H.’s Loco-Sound™ sound and train control system. The locomotive is easy to operate with any compatible standard AC transformer (see the compatibility chart on page 14), and is completely compatible with most other 3-rail locomotives, rolling stock, and accessories.
-
Page 2: Table Of Contents
Proto-Cast and Proto-Dispatch Volume Control Maintenance Lubrication and Greasing Instructions Cleaning the Wheels, Tires and Track Locomotive Traction Tire Replacement Smoke Unit Maintenance Locomotive Light Bulb Replacement Troubleshooting Compatibility Transformer Compatibility Chart Safety Precautions Service and Warranty Information RailKing Gs-2 Steam Engine... -
Page 3: Set Up
5. Connect the draw bar between the engine and tender. Hole farthest from tender is for operation on O-31 curves. Second hole is for operation on larger curves. At this point, you are ready to begin running your engine. RailKing Gs-2 Steam Engine... -
Page 4: Basic Operation
To prevent accidental high-speed start-ups, this engine is programmed to restart in neutral each time the track voltage is turned off for 25 seconds or more. RailKing Gs-2 Steam Engine... -
Page 5: Speed Control
Bell button. The engine will not change direction (including going into neutral) until you repeat the 1 whistle, 3 bells code to return the engine to its normal condition. RailKing Gs-2 Steam Engine... -
Page 6: Proto-Cast And Proto-Dispatch
If you experience popping and interference, try cleaning the track with denatured alcohol as described in the “Cleaning the Wheels, Tires and Track” section of this booklet. Note: M.T.H. does not recommend using Proto-Cast and Proto-Dispatch at the same time. RailKing Gs-2 Steam Engine... -
Page 7: Volume Control
(see Fig. 1 ). Loco-Sound Volume Adjustment Knob Figure 1. Loco-Sound Volume Adjustment Knob RailKing Gs-2 Steam Engine... -
Page 8: Maintenance
You should also grease the leading and trailing locomotive truck tongues to enhance their ability to slide on the chassis. Follow the grease points shown on Fig. 3. Figure 3. Greasing Points on the Engine and Body Mounting Screws RailKing Gs-2 Steam Engine... -
Page 9: Cleaning The Wheels, Tires And Track
One set of replacement tires is included with the model. Additional tires are available directly from the M.T.H. Parts Department (phone: 410-381-2580; fax: 410-423-0009; e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532). RailKing Gs-2 Steam Engine... -
Page 10: Smoke Unit Maintenance
If you experience poor or no smoke output when the smoke unit is on and has fluid, check the wick Figure 6. Smoke Unit to see if it has become hard, blackened, and Inspection Cover unabsorbent around the heating element. Remove RailKing Gs-2 Steam Engine... -
Page 11: Locomotive Light Bulb Replacement
Unplug the wires from its harness and replace the bulb, reassemble. You can obtain replacement bulbs directly from the M.T.H. Parts Department. HeadLight Fire Box Light Figure 8. Replacing the Headlight and the Fire Box RailKing Gs-2 Steam Engine... -
Page 12: Troubleshooting
The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580; fax: 410-423-0009; service@mth-railking.com, 7020 Columbia Gateway Drive, Columbia MD 21046-1532). RailKing Gs-2 Steam Engine... -
Page 13: Compatibility
This engine will operate on any traditional O-31 or larger O Gauge track ® ™ system, including M.T.H.’s RealTrax or ScaleTrax or traditional tubular track. It is also compatible with most standard AC transformers. (See page 14 for a complete list of compatible transformers and wiring instructions.) RailKing Gs-2 Steam Engine... -
Page 14: Transformer Compatibility Chart
Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. RailKing Gs-2 Steam Engine... -
Page 15: Safety Precautions
In the event such conditions exist, the transformer should not be used until properly repaired. As with all electrical appliances, this product should not be left in operation when unattended. RailKing Gs-2 Steam Engine... -
Page 16: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
