SERVICE MANUAL
DT9904S

Advertisement

Table of Contents
loading

Related Manuals for Onkyo DT9904S

Summary of Contents for Onkyo DT9904S

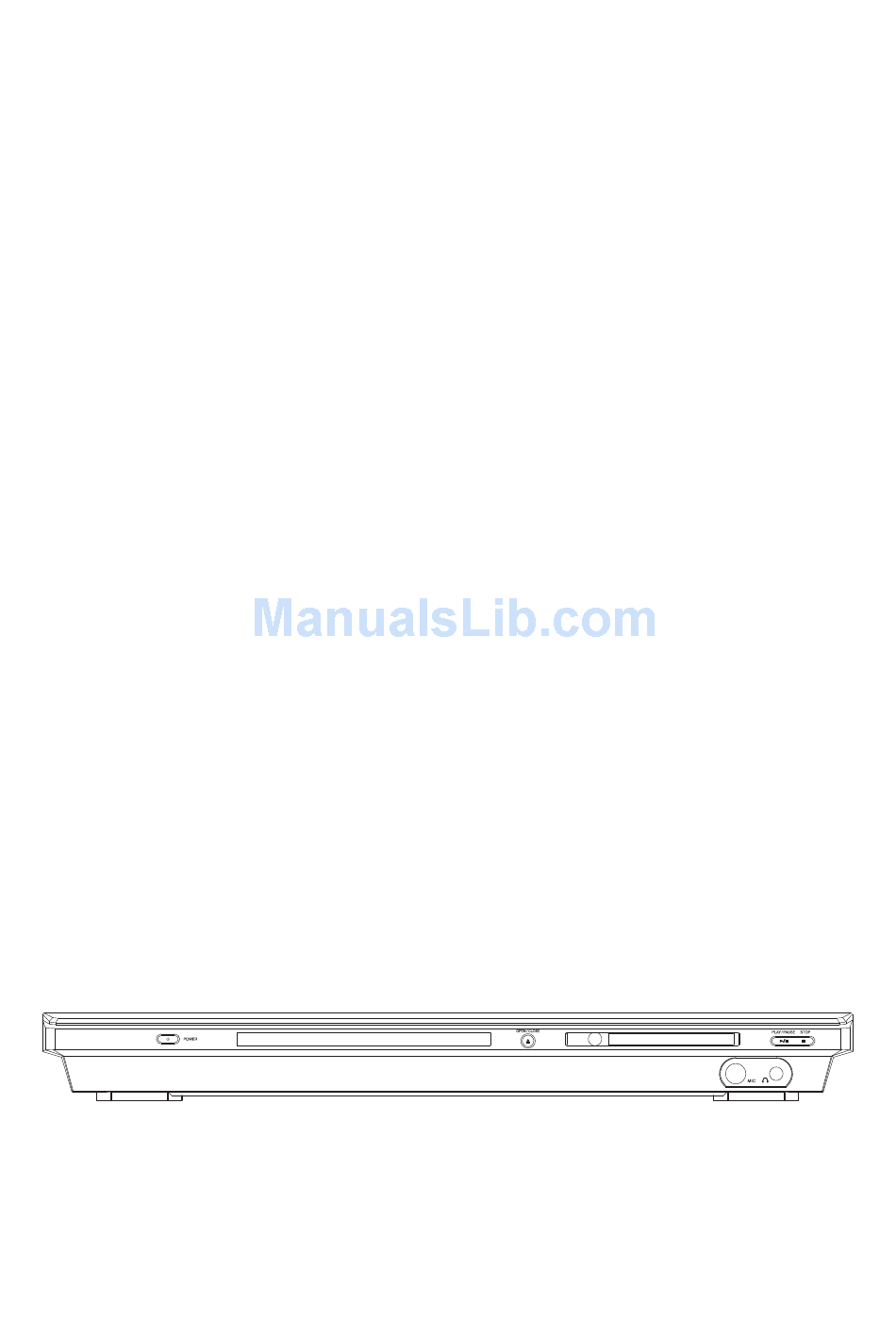

  • Page 1 SERVICE MANUAL DT9904S...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS PREVENTION OF ELECTRO STATIC DISCHARGE(ESD)TO ELECTROSTATICALLY SENSITIVE(ES)DEVICES CONTROL BUTTON LOCATIONS AND EXPLANATIONS PREVERTION OF STATIC ELECTRICITY DISCHARGE ASSEMBLING AND DISASSEMBLING THE MECHANISM UNIT OPTICAL PICKUP UNIT EXPLOSED VIEW AND PART LIST BRACKET EXPLOSED VIEW AND PART LIST MISCELLANEOUS ELECTRICAL CONFIRMATION VIDEO OUTPUT (LUMINANCE SIGNAL) CONFIRMATION...

  • Page 3: Safety Precautions

    1. SAFETY PREAUTIONS 1.1 GENERAL GUIDELINES 1. When servicing, observe the original lead dress. if a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barrier, insulation papers shields are properly installed.

  • Page 5: Prevention Of Static Electricity Discharge

    4.PREVENTION OF STATIC ELECTRICITY DISCHARGE The laser diode in the traverse unit (optical pickup)may brake down due to static electricity of clothes or human body. Use due caution to electrostatic breakdown when servicing and handling the laser diode. 4.1.Grounding for electrostatic breakdown prevention Some devices such as the DVD player use the optical pickup(laser diode)and the optical pickup will be damaged by static electricity in the working environment.Proceed servicing works under the working environment where grounding works is completed.

  • Page 6: Assembling And Disassembling The Mechanism Unit

    5. Assembling and disassembling the mechanism unit 5.1 Optical pickup Unit Explosed View and Part List Pic (1)
  • Page 7 Materials to Pic (1) PARTS CODE PARTS NAME Q ty 14692200 SF-HD60 1EA0311A06300 ASSY, CHASSIS, COMPLETE 1EA0M10A15500 ASSY, MOTOR, SLED 1EA0M10A15501 ASSY, MOTOR, SLED 1EA2451A24700 HOLDER, SHAFT 1EA2511A29100 GEAR, RACK 1EA2511A29200 GEAR, DRIVE 1EA2511A29300 GEAR, MIDDLE, A 1EA2511A29400 GEAR, MIDDLE, B 1EA2744A03000 SHAFT, SLIDE 1EA2744A03100...

  • Page 8: Bracket Explosed View And Part List

    5.2 Bracket Explosed View and Part List Pic (2) Materials to Pic(2) 1.bracket 14. front silicon rubber 2.belt 15. Back silicon rubber 3.screw 16. Pick-up 4.belt wheel 17. Pick-up 5.gearwheel 18. switch 6.iron chip 19. Five-pin flat plug 7. Immobility mechanism equipment 20.

  • Page 9: Miscellaneous

    5.3 MISCELLANEOUS 5.3.1 Protection of the LD(Laser diode) Short the parts of LD circuit pattern by soldering. 5.3.2 Cautions on assembly and adjustment Make sure that the workbenches,jigs,tips,tips of soldering irons and measuring instruments are grounded,and that personnel wear wrist straps for ground. Open the LD short lands quickly with a soldering iron after a circuit is connected.

  • Page 10: Electrical Confirmation

    6.Electrical Confirmation 6.1. Video Output (Luminance Signal) Confirmation DO this confirmation after replacing a P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value 200mV/dir,10 sec/dir 1000mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.

  • Page 11: Video Output(Chrominance Signal) Confirmation

    6.2 Video Output(Chrominance Signal) Confirmation Do the confirmation after replacing P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value Screwdriver,Oscilloscope 200mV/dir,10 sec/dir 621mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.

  • Page 12: Mpeg Board Check Waveform

    7.MPEG BOARD CHECK WAVEFORM 7.1 27MHz WAVEFORM DIAGRAM 7.2 IC5L0380R PIN.2 WAVEFORM DIAGRAM...

  • Page 13: Am29Lv160D

    8. Am29LV160D 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory DISTINCTIVE CHARACTERISTICS Single power supply operation Embedded Algorithms — Full voltage range: 2.7 to 3.6 volt read and write — Embedded Erase algorithm automatically operations for battery-powered applications preprograms and erases the entire chip or any combination of designated sectors...

  • Page 14: Block Diagram

    PRODUCT SELECTOR GUIDE Family Part Number Am29LV160D Speed Option Voltage Range: V = 2.7–3.6 V -120 Max access time, ns (t Max CE# access time, ns (t Max OE# access time, ns (t Note: See “AC Characteristics” for full specifications. BLOCK DIAGRAM –...
  • Page 15 CONNECTION DIAGRAMS BYTE# DQ15/A-1 DQ14 DQ13 DQ12 Standard TSOP RESET# DQ11 RY/BY# DQ10 BYTE# DQ15/A-1 DQ14 DQ13 DQ12 RESET# Reverse TSOP DQ11 RY/BY# DQ10...
  • Page 16 CONNECTION DIAGRAMS RESET# BYTE# DQ15/A-1 DQ14 DQ13 DQ10 DQ12 DQ11 FBGA Top View, Balls Facing Down BYTE# DQ15/A-1 DQ14 DQ13 RESET# DQ12 RY/BY# DQ10 DQ11 Special Handling Instructions Flash memory devices in FBGA packages may be damaged if exposed to ultrasonic cleaning methods. Special handling is required for Flash Memory products The package and/or data integrity may be compromised in FBGA packages.
  • Page 17 PIN CONFIGURATION LOGIC SYMBOL A0–A19 = 20 addresses DQ0–DQ14 = 15 data inputs/outputs A0–A19 16 or 8 DQ15/A-1 = DQ15 (data input/output, word mode), DQ0–DQ15 A-1 (LSB address input, byte mode) (A-1) BYTE# = Selects 8-bit or 16-bit mode = Chip enable = Output enable = Write enable RESET#...

  • Page 18: Hy57V641620Hg

    HY57V641620HG 4 Banks x 1M x 16Bit Synchronous DRAM 8.1 HY57V641620HG DESCRIPTION The Hyundai HY57V641620HG is a 67,108,864-bit CMOS Synchronous DRAM, ideally suited for the main memory applications which require large memory density and high bandwidth. HY57V641620HG is organized as 4banks of 1,048,576x16. HY57V641620HG is offering fully synchronous operation referenced to a positive edge of the clock.
  • Page 19 HY57V641620HG PIN CONFIGURATION DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 54pin TSOP II 400mil x 875mil 0.8mm pin pitch LDQM UDQM /CAS /RAS A10/AP PIN DESCRIPTION PIN NAME DESCRIPTION The system clock input. All other inputs are registered to the SDRAM on the Clock rising edge of CLK Controls internal clock signal and when deactivated, the SDRAM will be one...

  • Page 20: Functional Block Diagram

    HY57V641620HG FUNCTIONAL BLOCK DIAGRAM 1Mbit x 4banks x 16 I/O Synchronous DRAM Self refresh logic Internal Row & timer counter 1Mx16 Bank 3 1Mx16 Bank 2 Row active Decoders 1Mx16 Bank 1 1Mx16 Bank 0 Memory refresh Cell Array Column Column Active UDQM...

  • Page 21: Mt1389

    8.2 MT1389 MT1389 Progressive-Scan DVD Player SOC Specifications are subject to change without notice MediaTek MT1389 is a DVD player system-on-chip (SOC) which incorporates advanced features like high quality TV encoder and state-of-art de-interlace processing. The MT1389 enables consumer electronics manufacturers to build high quality, cost-effective DVD players, portable DVD players or any other home entertainment audio/video devices.
  • Page 22 MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE General Feature List 1024-bytes on-chip RAM Super Integration DVD player single chip Up to 4M bytes FLASH-programming interface High performance analog RF amplifier Supports 5/3.3-Volt. FLASH interface Servo controller and data channel processing Supports power-down mode MPEG-1/MPEG-2/JPEG video Supports additional serial port...
  • Page 23 MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Audio Effect Processing TV Encoder Dolby Digital (AC-3)/EX decoding Six 108MHz/12bit DACs DTS/DTS-ES decoding Support NTSC, PAL-BDGHINM, PAL-60 MLP decoding for DVD-Audio Support 525p, 625p progressive TV format MPEG-1 layer 1/layer 2 audio decoding Automatically turn off unconnected channels MPEG-2 layer1/layer2 2-channel audio Support PC monitor (VGA)

  • Page 24: Cd4052B

    CD4051B, CD4052B, CD4053B 8.3 CD4052B Data sheet acquired from Harris Semiconductor August 1998 - Revised March 2000 SCHS047D CMOS Analog Multiplexers/Demultiplexers Features with Logic Level Conversion • Wide Range of Digital and Analog Signal Levels - Digital ......3V to 20V The CD4051B, CD4052B, and CD4053B analog multiplexers - Analog.
  • Page 25 CD4051B, CD4052B, CD4053B Pinouts CD4051B (PDIP, CDIP, SOIC, TSSOP) CD4052B (PDIP, CDIP, TSSOP) TOP VIEW TOP VIEW Y CHANNELS CHANNELS IN/OUT IN/OUT X CHANNELS IN/OUT COM OUT/IN COMMON “Y” OUT/IN CHANNELS IN/OUT COMMON “X” OUT/IN Y CHANNELS CHANNELS IN/OUT IN/OUT X CHANNELS IN/OUT CD4053B (PDIP, CDIP, TSSOP)
  • Page 26 CD4051B, CD4052B, CD4053B Functional Block Diagrams (Continued) CD4052B X CHANNELS IN/OUT COMMON X OUT/IN † BINARY LOGIC 1 OF 4 † COMMON Y LEVEL DECODER OUT/IN CONVERSION WITH † INHIBIT Y CHANNELS IN/OUT CD4053B BINARY TO 1 OF 2 IN/OUT LOGIC DECODERS 16 V...
  • Page 27 CD4051B, CD4052B, CD4053B TRUTH TABLES INPUT STATES INHIBIT “ON” CHANNEL(S) CD4051B None CD4052B INHIBIT 0x, 0y 1x, 1y 2x, 2y 3x, 3y None CD4053B INHIBIT A OR B OR C ax or bx or cx ay or by or cy None X = Don’t Care...

  • Page 28: Schematic & Pcb Wiring Diagram

    9. SCHEMATIC & PCB WIRING DIAGRAM FRONT SCHEMATIC DIAGRAM...
  • Page 29 FRONT SCHEMATIC DIAGRAM...
  • Page 30 POWER BOARD SCHEMATIC DIAGRAM...
  • Page 31 POWER BOARD SCHEMATIC DIAGRAM...
  • Page 32 OK SCHEMATIC DIAGRAM...
  • Page 33 OK SCHEMATIC DIAGRAM...
  • Page 34 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 35 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 36 MIAN SCHEMATIC DIAGRAM...
  • Page 37 MIAN SCHEMATIC DIAGRAM...
  • Page 38 MIAN SCHEMATIC DIAGRAM...
  • Page 39 MIAN SCHEMATIC DIAGRAM...
  • Page 40 MIAN SCHEMATIC DIAGRAM...

  • Page 41: Spare Parts List

    10. SPARE PARTS LIST DT9904S MATERIAL LIST 1. Power board MATERIAL SPECIFICATIONS/PART NUMBER QUANTITY CARBON FILM RESISTOR 1/4W33Ω±5%SHAPED10 CARBON FILM RESISTOR 1/4W330Ω±5%SHAPED10 CARBON FILM RESISTOR 1/4W10K±5%SHAPED10 CARBON FILM RESISTOR 1/4W4.7K±5%SHAPED10 CARBON FILM RESISTOR 1/4W1MΩ±5%SHAPED10 METAL FILM RESISTOR 1/4W 3.9K ±1% SHAPED10 METAL FILM RESISTOR 1/4W12K±1% SHAPED10...
  • Page 42 SOCKET 10-CORE2.5mm SOCKET 2-CORE 8.0mm 2# CONNECTION CORDS Φ0.6 SHAPED10mm CONNECTION CORDS Φ0.6 SHAPED12.5mm FUSE T1.6AL 250V WITH CONDUCTION PIN HEAT RADIATOR BOARD 11×15×25 AB009K 48.1 HEAT RADIATOR BOARD 11×15×25 WHITE AB905 59904S-1 POWER BOARD GROUND PIECE AB903 TAPPING SCREW BT 3×8 BLACK 2.
  • Page 43 SMD CAPACITOR 50V 20P ±5% NPO 0603 PORCELAIN CAPACITOR 50V 20P ±10% NPO 5mm DYNATRON S8050D SMD RESISTOR 1/16W 4.7K ±5% 0603 CARBON FILM RESISTOR 1/4W330Ω±5% CARBON FILM RESISTOR 1/4W33Ω±5% SMD RESISTOR 1/16W 1K ±5% 0603 SMD RESISTOR 1/16W 2.2K ±5% 0603 SMD RESISTOR 1/16W 75Ω...
  • Page 44 PORCELAIN CAPACITOR 50V 104 ±20% 5mm TDA1308 SOP EARPHONE SOCKET 2SJ-05231N23 34.1 EARPHONE SOCKET 2SJ-05232N23 SMD RESISTOR 1/16W 56K ±5% 0603 5. DECODE BOARD SPECIFICATIONS/PART NUMBER QUANTITY SMD RESISTOR 1/16W 0Ω ±5% 0603 SMD RESISTOR 1/16W 75Ω ±5% 0603 CARBON FILM RESISTOR 1/4W2.2Ω±5% SMD RESISTOR 1/16W1Ω±5% 0603...
  • Page 45 SMD RESISTOR 50V 20P ±5% NPO 0603 SMD RESISTOR 50V 27P ±5% NPO 0603 SMD RESISTOR 50V 47P ±5% NPO 0603 SMD RESISTOR 50V 101 ±5% NPO 0603 SMD RESISTOR 50V 331 ±5% NPO 0603 SMD RESISTOR 50V 151 ±5% NPO 0603 SMD RESISTOR 50V 104 +80%-20% 0603 39.1 SMD RESISTOR...
  • Page 46 SMD DYNATRON 3904 SMD DYNATRON 2SK3018 SMD DYNATRON 2SB1132 NJM4558M SOP 68.1 IC 4580 SOP 68.2 IC 4558 SOP MM74HCU04M SOP 69.1 IC HCU04 SOP HY57V641620HGT-7 TSOP 70.1 IC KSV464P4JA-70 TSOP LM1117MP-ADJ SOT-223 CS4360 SSOP CS5333 SSOP 24C02N SOP MT1389EE QFP 75.1 IC MT1389FE QFP BA5954FP HSOP...

  • Page 47: Appendix-Am/Fm Tuner Specificadtion

    11. APPENDIX-AM/FM Tuner Specificadtion...
  • Page 70 最新カスタムIC搭載により容積30%減（当社従来品比）の小形化を実現。 30 % less volume than our traditional models thanks to state-of-the-art customized IC. ■特長 ■Features 独自開発のICを搭載し、当社従来品容積比約30%減 Uniquely developed IC has achieved a small ● ● の小形化（60ml）を達成。 volume of 60 ml, 30 % less than our traditional ANTコネクタ部を直出構造とし、内部をフルシー models. ● ルド化することにより、優れたノイズ除去能力を...
  • Page 71 TFCF Series FM/AM Combination Tuner with Noise Immunizing Structure ■外形図 Dimensions Unit : mm 20max. 12.5 60max. 0.85 AM ANT (9.9) (9.4) Terminal Terminal name FM DET Rch OUT Lch OUT 40.25 (27) ■回路ブロックダイヤグラム Circuit Block Diagram FM/AM/PLL Combination IC...
