Elumen8 ELUM054A Plasma 3K RGB User Manual

Hide thumbs

Advertisement

Quick Links

ELUM054A
User Manual
Please read the user manual before use

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELUM054A Plasma 3K RGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elumen8 ELUM054A Plasma 3K RGB

Summary of Contents for Elumen8 ELUM054A Plasma 3K RGB

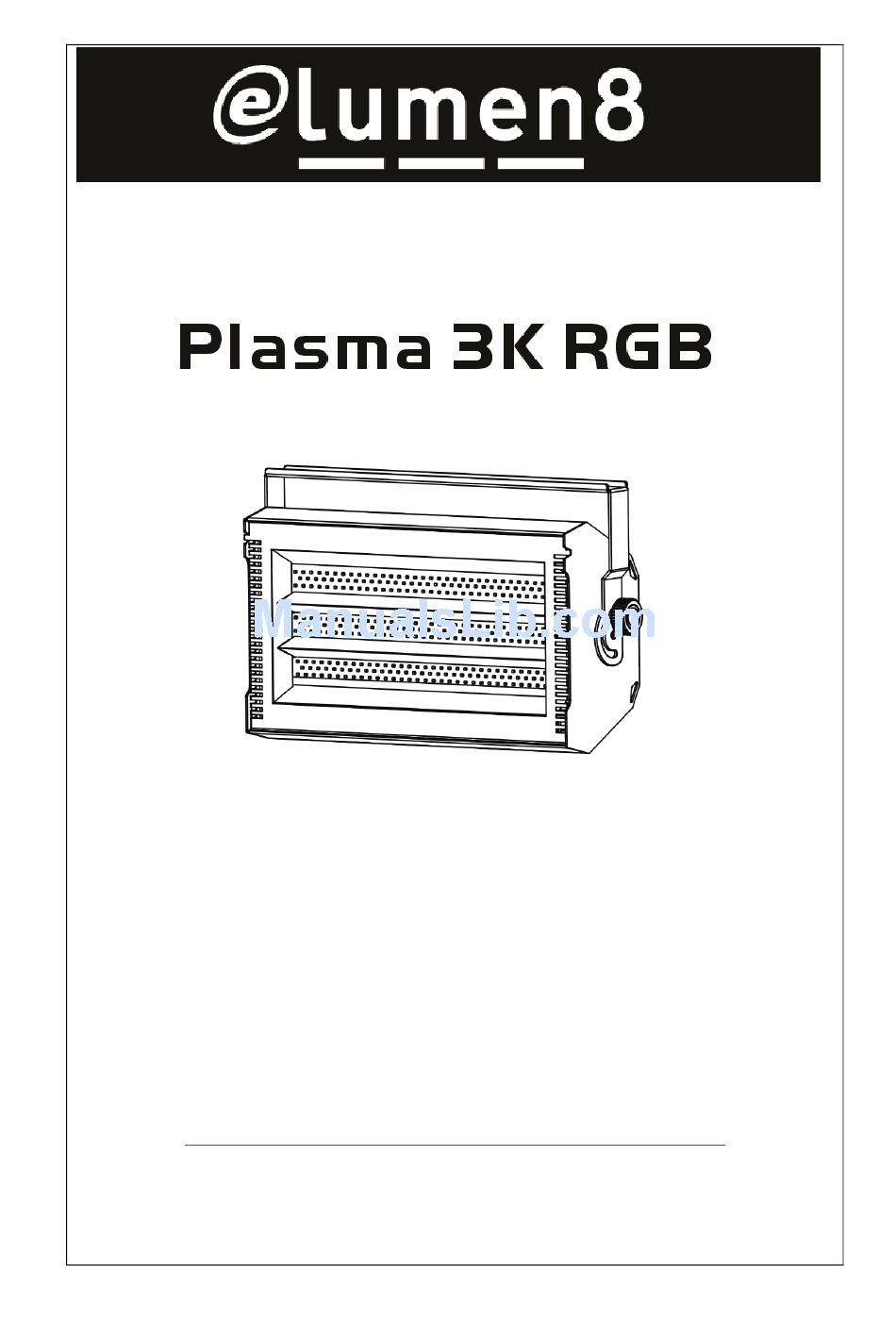

  • Page 1 ELUM054A User Manual Please read the user manual before use...

  • Page 2: Table Of Contents

    Table of Contents 1，Safety Information…………………………………………………. 2 2，Rear Panel…………………………………………………………. 4 3，Preparation for Use ………………………………………………...4 4，Main Functions ..………………………………………………….. 5 5，Remote Control…………………………………………………….8 6， Technical Specification…………………………………………….15 ...

  • Page 3: Safety Information

    1. Safety Information Warning: This product is for professional use only! It is not for household use. The Plasma 3K RGB presents risks of lethal or severe injury due to fire and heat, electric shock, ultraviolet radiation, and falls. Flashing light is also known trigger...
  • Page 4 The exterior of the fixture can reach high temperatures. Allow the fixture to cool for — at least 15 minutes before handling. Do not modify the fixture or install anything other than genuine parts. — Do not operate if the ambient air temperature (Ta) exceeds 40° C (104° F). —...

  • Page 5: Rear Panel

    2. Rear Panel Circuit Breaker 2, Main Power 3. LED display 4, Menu /UP/DOWN/ Enter button 5, DMX signal/ Flash indicator 6, DMX input/output 3. Preparation for Use INSTALLATION The Plasma 3K RGB may be installed in any orientation. The mounting bracket provides five 12 mm holes for direct fastening or attachment of rigging clamps.

  • Page 6: Main Function

    4. MAIN FUNCTION Press MENU button to enter the function, then use the UP/DOWN or MENU buttons to select the function you want. Press the ENTER button to confirm your selection. Wait for 30 seconds to return to the main menu or hold the MENU button for 1 second.
  • Page 7 Channel mode setting Select the CHND option and press the ENTER button to confirm your selection. Change the channel mode from (1/2/3/4/6/7) channels by pressing the UP/DOWN buttons. Press the ENTER button to confirm your selection. Wait for 30 seconds to return to the main menu or hold the MENU button for 1 second.
  • Page 8 Test setting Select the TEST option and press the ENTER button to confirm your selection. The flash indicator will light up and the unit will run an automatic test . Once the self-test has finished it will return to the test menu. Wait for 30 seconds to return to the main menu or hold the MENU button for 1 second.

  • Page 9: Remote Control

    Remote Control 1 Channel Mode Channel Value Function 0-5 Blackout 6-250 Flash rate, slow to fast 251-255 Continuous ”Blinder”effect 2 Channel Mode Channel Value Function 0-5 Blackout 6-255 Flash rate, slow to fast 0-5 Blackout Flash intensity 6-255 Minimum to maximum 3 Channel Mode Channel Value Function 0-5 Blackout 1 Flash intensity 6-255 Minimum to maximum 2 Flash duration 0-255 0-650 ms@50 Hz AC, or 0-530 ms@60 Hz AC 0-5 No flash (single flash with ch. 1)
  • Page 10 4 Channel Mode Channel Value Function 0-5 Blackout 1 Flash intensity 6-255 Minimum to maximum 2 Flash duration 0-255 0-650 ms@50 Hz AC, or 0-530 ms@60 Hz AC 0-5 No flash (single flash with ch. 1) 3 Flash rate 6-255 0.5-25 Hz@50 Hz AC, or 0.6-30 Hz @60 Hz AC 0-5 No effect 6-50 Ramp up 51-100 Ramp down Special effects 101-150 Ramp up-down 151-200 Lightning 201-255 Random 6 Channel Mode Channel Value Function 0-5...
  • Page 11 6-255 Minimum to maximum 0-5 Blackout 3 (B)Flash intensity 6-255 Minimum to maximum 0-5 Blackout (RGB)Flash intensity 6-255 Minimum to maximum 5 Flash duration 0-255 0-650 ms@50 Hz AC, or 0-530 ms@60 Hz AC 0-5 No flash (single flash with ch. 1) 6 Flash rate 6-255 0.5-25 Hz@50 Hz AC, or 0.6-30 Hz @60 Hz AC 7 Channel Mode Channel Value Function 0-5 Blackout 1 (R)Flash intensity 6-255 Minimum to maximum 0-5 Blackout 2 (G)Flash intensity 6-255 Minimum to maximum 0-5 Blackout 3 (B)Flash intensity 6-255 Minimum to maximum...
  • Page 12 0-5 No flash (single flash with ch. 1) 6 Flash rate 6-255 0.5-25 Hz@50 Hz AC, or 0.6-30 Hz @60 Hz AC 0-5 No effect 6-50 Ramp up 51-100 Ramp down 101-150 Ramp up-down Special effects 151-200 Lightning 201-255 Random DMX CONTROL SUMMARY Built-in effects Six programmed effects are available on channel 4 in the 4-channel DMX mode, and channel 7 in the 7-channel DMX mode, The effects may be altered using the intensity, duration, and rate controls.

  • Page 13: Technical Specification

    Single Flash To trigger single flashes, start with the intensity and flash rate at 0 and then set the intensity on channel 1. When the value of channel 1 is changed, the light will flash once with the programmed intensity, duration, and effect. 6.
  • Page 14 Innovation, Quality, Performance 13A ...
