Removing the 3.75G Module

1. Turn off the computer, remove the battery
2. Carefully disconnect the cable
3. The 3.75G module will pop-up.
3
4. Lift the 3.75G module (Figure
a.
b.
3
(page 2 - 5) and the component bay cover
, then remove the screw from the module socket.
1 2
7d) up and off the computer.
c.
1
2
d.
.
(page 2 - 8)
3
Removing the 3.75G Module 2 - 11
Disassembly

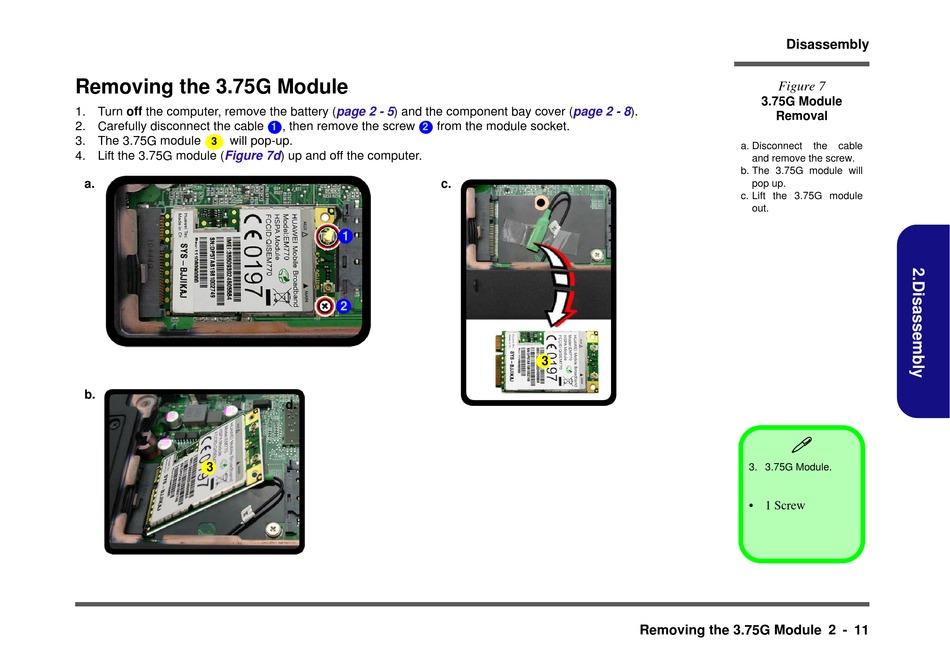

Figure 7
3.75G Module
Removal
a. Disconnect the cable
and remove the screw.
b. The 3.75G module will
pop up.
c. Lift the 3.75G module
out.

3. 3.75G Module.
• 1 Screw
