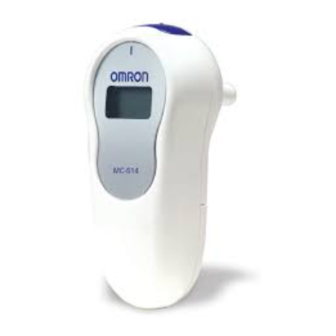

INSTRUCTION MANUAL
EAR THERMOMETER
MC-514
Model

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-514 and is the answer not in the manual?

Questions and answers

Dennis Jane
March 7, 2025

I do not have A instruction manual, how do I operate this

1 comments:
Mr. Anderson
March 7, 2025

To operate the Omron MC-514 Ear Thermometer:

1. Insert Battery – Ensure a CR2032 battery is installed.
2. Attach Lens Cover – Place a lens cover on the thermometer.
3. Turn On – Press the button to activate the display.
4. Insert Into Ear – Gently place the thermometer in the ear.
5. Start Measurement – Press the button and wait for 1 beep.
6. Wait for Completion – Keep the thermometer in place until 4 beeps sound.
7. Remove and Read – Take out the thermometer and check the displayed temperature.
8. Wait Before Reuse – Wait 10 minutes before taking a fourth measurement.

Follow safety precautions such as avoiding use with an ear infection and keeping the thermometer away from cellular phones to prevent interference.

This answer is automatically generated

Summary of Contents for Omron MC-514

  • Page 1 INSTRUCTION MANUAL EAR THERMOMETER MC-514 Model...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ... 3 Part Names ... 4 Conversion °F/°C ... 4 Before Use ... 5 Directions for Use and for Memory ... 5 Care and Maintenance ... 6 Battery Replacement ... 6 Specifications ... 7 Troubleshooting ... 8, 9 Warning ...
  • Page 3: Introduction

    Thank you for purchasing the Omron Ear Thermometer. This ear thermometer offers a safe, accurate and quick temperature reading from the ear canal. This thermometer senses the infrared heat from the ear drum (tympanic membrane). No need to worry about broken glass or mercury hazards.
  • Page 4: Part Names

    Storage case (with 10 lens covers inside, plus 1 on the thermometer) CONVERSION BETWEEN FAHRENHEIT to CENTIGRADE (°F/°C) • The thermometer is initially set at Fahrenheit °F • Follow the steps below to change the measurement scale from °F to Centigrade °C: Note: Changing the measurement scale “°F”...
  • Page 5: Before Use

    • The thermometer will not work unless a lens cover is applied correctly. • For hygienic use, attach a new lens cover each time. REPLACING LENS COVER Use Omron lens cover (model MC-505LC). Remove the lens cover. DIRECTIONS FOR USE AND MEMORY Push button to turn on.
  • Page 6: Care And Maintenance

    - Keep your thermometer in the storage case after attaching a lens cover to protect the lens. - Store your thermometer in a place that is out of direct sunlight, is not in any extremes of temperature or humidity and is not likely to be affected by vibration, dust or shock.
  • Page 7: Specifications

    Memory: Contents: Options: The specifications may be changed without prior notice. SPECIFICATIONS TITLE Omron Ear Thermometer MC-514 DC 3 Volt (lithium battery CR2032) Approximately 2000 measurements Thermopile 93.2 ~ 96.7°F (34.0 ~ 35.9°C) : 96.8 ~ 102.2°F (36.0 ~ 39.0°C) : 102.3 ~ 108.0°F...
  • Page 8: Troubleshooting

    TROUBLESHOOTING Display Nothing is displayed even after unit is turned on. “°F” or “°C”flashes, but “0” symbol is NOT displayed A "0 0" symbol is displayed. After all the symbols on display illuminate, a " " mark is displayed. The display light is not turned on.
  • Page 9 104°F or above which is outside the operating range. May require service. The measured temperature was above the range of the thermometer. The measured temperature was below the range of the thermometer. TITLE Meaning Attach the lens cover, then measure.
  • Page 10: Warning

    • This thermometer is intended to be used in human ears only. • Only use the lens cover for this specific unit. • For proper hygiene DO NOT share lens covers. • Replace the lens cover when it is effected by ear wax or other body fluids.
  • Page 11: Fcc Statement

    FCC STATEMENT TITLE Note: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 12: Warranty

    Your Omron ® Ear Thermometer (MC-514) excluding the battery is warranted to be free from manufacturing defects for a period of five years under normal use. This warranty extends only to the original retail purchaser. We will, at our option, repair or replace without charge any necessary parts covered by the above warranties.
  • Page 13: Notes

    NOTES...
  • Page 14 NOTES...
  • Page 15: Notes

    NOTES...
  • Page 16: Quick Reference

    • Press Button Again - Wait For 4 Beeps • Remove From Ear - Read For Results • Wait 10 Minutes Before 4th Measurement Customer Service Call Toll Free: 1-800-634-4350 Manufactured by: OMRON HEALTHCARE, INC. 300 Lakeview Parkway Vernon Hills, Illinois 60061 514INST Rev TITLE...
  • Page 17 MANUAL DE INSTRUCCIONES TERMÓMETRO AUDITIVO MC-514 Modelo...
  • Page 18 TITLE TABLA DE CONTENIDO Introducción ... 3 Nombre de las piezas ... 4 Conversión entre °F/°C ... 4 Antes de usar el dispositivo ... 5 Instrucciones para uso y memoria ... 5 Cuidado y mantenimiento ... 6 Cambio de la pila ... 6 Especificaciones ...
  • Page 19: Introducción

    Le agradecemos que haya comprado el Termómetro Auditivo Omron. Complete estos datos en caso de que necesite consultarlos en el futuro FECHA DE COMPRA: ________________ NÚMERO DE SERIE: ________________ Este termómetro auditivo facilita una lectura segura, precisa y rápida del conducto auditivo externo. Este termómetro detecta el calor infrarrojo de la membrana timpánica.
  • Page 20: Nombre De Las Piezas

    NOMBRE DE LAS PIEZAS Lente Sonda Estuche (con 10 fundas de lente adentro, más una en el termómetro). CONVERSIÓN ENTRE FAHRENHEIT y CENTÍGRADOS (°F/°C) • Inicialmente el termómetro muestra grados Fahrenheit °F. • Siga los pasos a continuación para cambiar la escala de medición de °F a centígrados °C: Nota: Al cambiar la escala de la medida de "˚F"...
  • Page 21: Antes De Usar El Dispositivo

    ANTES DE USAR EL DISPOSITIVO • El termómetro no funciona si no tiene puesta correctamente una funda. • Por higiene, cada vez que use el termómetro póngale una funda nueva. CAMBIO DE LA TAPA DEL LENTE Use la funda de lente Omron (modelo MC-505LC). Quite la funda del lente.
  • Page 22: Cuidado Y Mantenimiento

    CUIDADO Y MANTENIMIENTO • Cómo limpiar la unidad - Limpie el exterior de la unidad con un paño suave y seco o con alcohol. - Si el lente se ensucia, límpielo con un paño suave y seco. - No limpie ninguna parte de la unidad con detergente, disolvente ni benceno.
  • Page 23: Especificaciones

    Opciones: Las especificaciones pueden cambiar sin previo aviso. TITLE TITLE Termómetro Auditivo Omron MC-514 CC de 3 voltios (pila de litio CR2032) Toma la temperatura aproximadamente 2000 veces Pila termoeléctrica En 4 dígitos, cada 0.1 °C o °F 34.0 ~ 35.9 °C (93.2 ~ 96.7 °F)
  • Page 24 SOLUCIÓN DE PROBLEMAS Ventanilla No aparece nada, aunque esté encendida la unidad. Aparece “°F” o “°C” intermitente, pero NO se muestra el símbolo “0”. Aparece el símbolo “0 0”. Después de que se iluminan todos los símbolos de la pantalla, aparece una marca “...
  • Page 25 SOLUCIÓN DE PROBLEMAS Ventanilla La funda del lente no está en la sonda. La temperatura de la unidad es inestable. La unidad se encuentra a una temperatura de 10 °C o menos, la cual está fuera del margen de funcionamiento. La unidad se encuentra a una temperatura de 40 °C o más, la cual está...
  • Page 26: Advertencia

    • Este termómetro está previsto para que sea utilizado únicamente en el oído de humanos. • Use exclusivamente la funda para lente específica para esta unidad. • Por motivos de higiene, NO comparta las fundas para el lente. • Si la funda del lente se ensucia con cera del oído o cualquier otro líquido orgánico, cámbiela.
  • Page 27 DECLARACIÓN DE LA FCC Nota: POSIBILIDAD DE INTERFERENCIA EN RADIO / TELEVISIÓN (para los EE.UU. únicamente). Las pruebas a las que se sometió este producto comprobaron que cumple con las limitaciones establecidas para dispositivos digitales Clase B, de conformidad con la sección 15 de las Normas FCC.
  • Page 28: Garantía

    Visite nuestro website: Llame al número gratuito: GARANTÍA ® (MC-514) excepto la pila está garantizado Omron Healthcare, Inc. 300 Lakeview Parkway, Vernon Hills, Illinois 60061 Attn: Service Dept. PARA ATENCIÓN AL CLIENTE www.omronhealthcare.com...
  • Page 29: Notas

    NOTAS...
  • Page 30 NOTAS...
  • Page 31 NOTAS...
  • Page 32: Consulta Rápida

    4 tonos • Retire del oído - Lea los resultados • Espere 10 minutos antes de tomar la cuarta lectura Servicio al cliente Llamadas gratuitas: 1-800-634-4350 Fabricado por: OMRON HEALTHCARE, INC. 300 Lakeview Parkway Vernon Hills, Illinois 60061 514INST Rev TITLE...
