- Page 1 Forehead Thermometer MC-720 Model Thank you very much for INSTRUCTION MANUAL purchasing the Forehead Thermometer. Be sure to read this Instruction Manual thoroughly before use. Keep this Instruction Manual at hand for future reference.
-
Page 2: Table Of Contents
Contents Thank you for purchasing the OMRON Forehead Thermometer MC-720. Intended Use: The OMRON Forehead Thermometer MC-720 offers safe, comfortable and quick temperature measurement from the forehead. It is mainly designed for household use. Important Safety Information ........1 4. Troubleshooting and Maintenance ....11 1. -
Page 3: Important Safety Information
Important Safety Information To assure correct use of the product, basic safety measures should always be followed, including the precautions listed below. Warning: The following situations are potentially hazardous and, if not avoided, could result in death or serious injury. •... - Page 4 Important Safety Information • If the forehead is cold, wait until the forehead is warmed up before taking a temperature measurement. The measured result may indicate low when you use an ice bag or an ice pack, or immediately after coming in from outdoor in winter. •...
-
Page 5: Overview

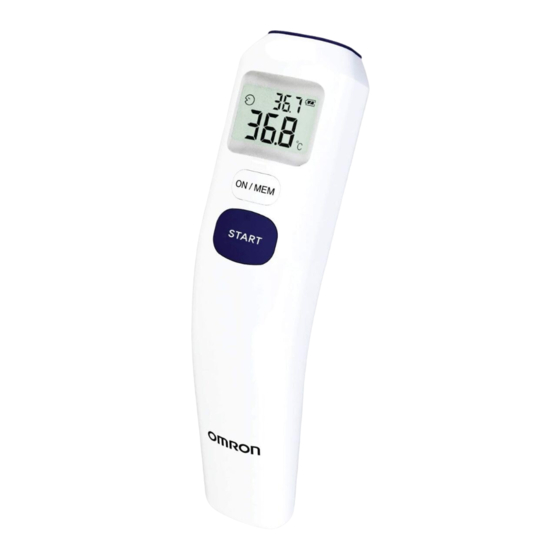

1. Overview Main unit: Display: Probe lens Surface temperature Room temperature Last reading Probe lens cap Display Battery icon ON/MEM button Mute icon START button Battery Temperature mode (°F) compartment Memory icon Temperature mode (°C) Forehead temperature... -
Page 6: Preparation
2. Preparation Removing the Insulating Tape When using the unit for the first time, pull the insulating tape out of the battery compartment. Back of the unit The unit is turned on and after 1 minute the room temperature appears on the display. Notes: •... -
Page 7: Setting The Buzzer
2. Preparation Setting the Buzzer The buzzer is activated by default, but can be deactivated. Note: The buzzer is only available in forehead measurement mode. Press the ON/MEM button to turn on the unit. Press and hold the ON/MEM button for 3 seconds. The "... -
Page 8: Using The Unit
3. Using the Unit Taking a Reading Forehead Measurement Mode This mode displays the oral-equivalent value of the measured forehead temperature. Always make sure the probe lens is clean and undamaged, and the forehead is clean with no sweat, cosmetics, scars, etc. - Page 9 3. Using the Unit Hold the unit with the probe lens 1 to 3 cm away from the center of the forehead. Notes: • Holding the unit too long in the hand may cause a higher ambient temperature reading of the probe.
- Page 10 3. Using the Unit Move the unit away from the forehead and check the measurement result. The display lights up for 5 seconds. Notes: • If the result is higher than 42.2°C (108.0°F), “Hi” appears on the display. If the result is lower than 34.0°C (93.2°F), “Lo” appears on the display. •...
- Page 11 3. Using the Unit Surface Measurement Mode Surface measurement mode shows the actual and unadjusted surface temperature of an object, which is different from the body temperature. This mode can help you determine if the object temperature is suitable for a patient or baby (such as baby milk).
-
Page 12: Using The Memory Function
3. Using the Unit Using the Memory Function This unit automatically stores the last 25 measurement results (excluding Hi/Lo results). Notes: • If the memory is full, the unit will delete the oldest reading. • When the unit is switched between °C and °F, all the readings stored in the memory are deleted. Press the ON/MEM button to turn on the unit. -
Page 13: Troubleshooting And Maintenance
30 minutes at room temperature: 10°C–40°C between 10°C–40°C (50°F–104°F). (50°F–104°F). Remove the battery, wait for 1 minute, reinsert the battery, and turn on the unit again. If the message Errors 5–9 indicate a malfunction of the unit. reappears, please contact the OMRON representative. - Page 14 • Forehead measurement mode: The temperature Use the unit within its measurable range. If a taken is higher than +42.2°C (108°F). malfunction still exists, please contact an OMRON • Surface measurement mode: The temperature representative. taken is higher than +80°C (176°F).
-
Page 15: Questions And Answers
4. Troubleshooting and Maintenance Questions and Answers 1. The temperature indicated is rather high. • The unit has been stored in a cold room. When the unit has been stored in a cold room, the measured temperature may be rather high if you measure the temperature shortly after bringing the unit to a room that is at normal temperature. -
Page 16: Maintenance
Maintenance • Check the unit if it is dropped. If unsure, please contact your local OMRON representative to have your unit checked. • When the probe lens becomes dirty, wipe it lightly with a soft dry cloth or a cotton swab. -
Page 17: Replacing The Battery
4. Troubleshooting and Maintenance Replacing the Battery Battery: CR2032 lithium button battery Note: To protect the environment, discard the used batteries in accordance with the local regulations regarding waste disposal procedure. Release the screw and remove the battery cover. Remove the battery with a pointed object. Note: Do not use a metal tool as it may damage the surrounding parts. -
Page 18: Technical Data
5. Technical Data Product Description: Forehead Thermometer Model: MC-720 Sensor: Thermopile Temperature Display: 4-digit, °F display in 0.1 degree increments 3-digit, °C display in 0.1 degree increments Accuracy: Forehead measurement mode ±0.2°C (±0.4°F) within 35.0°C to 42.0°C (95.0°F to 107.6°F), ±0.3°C (±0.5°F) for other range Surface measurement mode ±0.3°C (±0.5°F) within 22.0°C to 42.2°C (71.6°F to... - Page 19 • The specification may be changed without prior notice. • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co. Ltd., Japan. • This unit fulfills the provisions of the EC directive 93/42/EEC (Medical Device Directive) and the European Standard EN ISO 80601-2-56:2012: Particular requirements for basic safety and essential performance of clinical thermometers for body temperature measurement.
- Page 20 Recommendation is to keep a minimum distance of 7 m. Verify correct operation of the device in case the distance is shorter. Further documentation in accordance with EN60601-1-2:2007 is available at OMRON HEALTHCARE EUROPE at the address mentioned in this instruction manual. Documentation is also available at www.omron-healthcare.com.
-
Page 21: Some Useful Information
6. Some Useful Information How the Forehead Thermometer MC-720 Works This unit measures the temperature at the surface of the forehead by sensing infrared emission of the skin at the measured point, and then calculates the oral-equivalent value using a unique algorithm based on actual body temperature survey data. - Page 22 Forehead measurement mode Calculates the oral-equivalent value of the temperature at the surface of the forehead using a unique algorithm. Forehead temperature (°C) Surface measurement mode (Survey conducted by OMRON) (room temperature at 23°C) 36.5 37 37.5 38 38.5 39 39.5 40 Body temperature (oral-equivalent) (°C)
- Page 23 Variances in core body temperatures obtained at the forehead and mouth (Cases surveyed: 190, ages: 0–68, environment temperature: 23±2°C) Equivalent Forehead higher Oral higher Number cases (Survey conducted by OMRON) 1.4 1.2 0.8 0.6 0.4 0.2 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 Temperature difference (°C)
- Page 24 Manufacturer OMRON HEALTHCARE Co., Ltd. 53, Kunotsubo, Terado-cho, Muko, Kyoto,617-0002 JAPAN EU-representative OMRON HEALTHCARE EUROPE B.V. Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS OMRON HEALTHCARE SINGAPORE PTE LTD. 438A Alexandra Road, #05-05/08, Alexandra Technopark Asia Pacific HQ Singapore 119967 www.omronhealthcare-ap.com...
