- Page 1 00054815 (IR320) 00054831 (IR320) Internet Radio Internetradio Operation instructions INFO PRESET VOL. TUNE...
- Page 2 Technical Data Radio Receiver/ DAB+ Internet Spotify Radio Empfänger ü ü Connectivity/ WIFI(b/g/n) Verbindungsfähigkeit Display/ 2.6“ Full Dot LCD Bildschirm Encryption/ WEP, WPA, WPA2, WPS Verschlüsselung Speaker/ 4 W RMS (2 x 2 W) Lautsprecher Impedance/ 4 Ohm Impedanz 3“ Speaker Power input/ 1000 mA Stromeingang...
-
Page 4: Operating Instructions

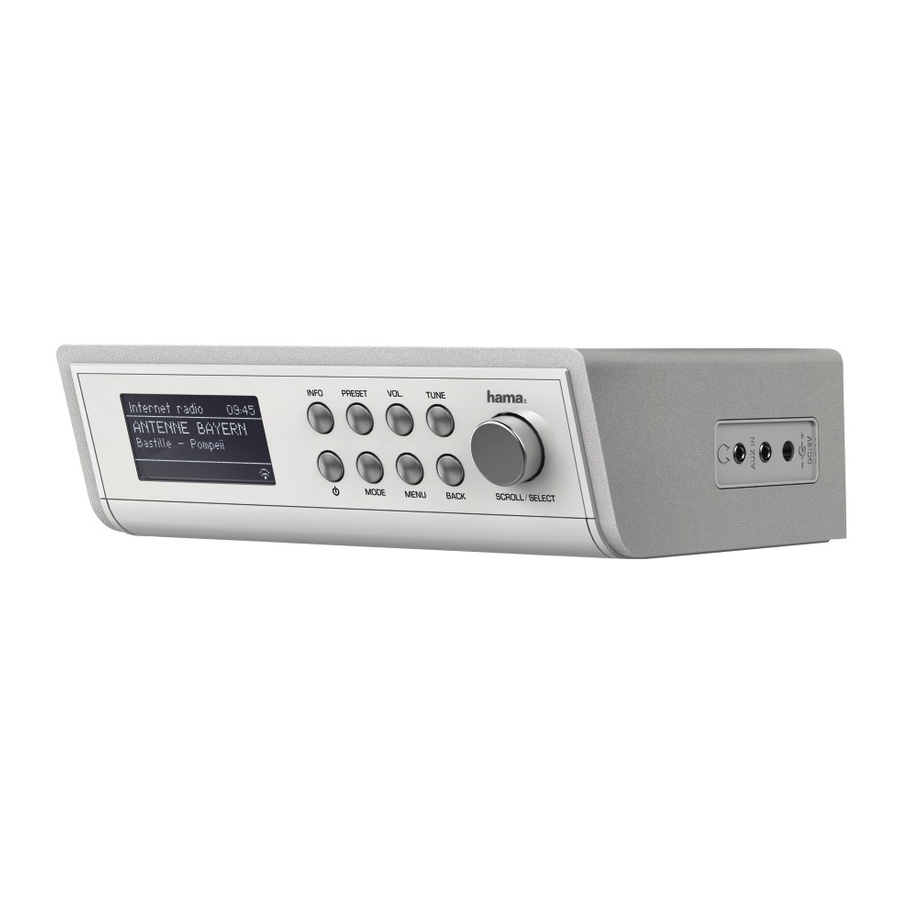

G Operating instructions Controls and Displays A: Front Display On/off switch [INFO] Display additional information Changing operating mode [MODE] (Internet radio, Spotify Connect, Music player, Aux in) [PRESET] List/save favourites [MENU] Direct access to the menu Activating volume control via [VOL.] [SCROLL/SELECT] [BACK]... -
Page 5: Table Of Contents
Content 1. Explanation of Warning Symbols and Notes ... 5 11. Auxiliary Input....... . . 17 2. -
Page 6: Menu Structure
Menu structure MAIN MENU INTERNET RADIO Last listened Station list My Favourites Local Stations Location Genre Search stations Popular stations New stations Podcasts Location Genre search podcasts My Added Stations Help Get access code System settings Main menu SPOTIFY System settings Main menu MUSIC PLAYER Shared media... - Page 7 Movie Classic News My EQ My EQ profile setup Bass Treble Loudness Save Network Network wizard PBC Wlan setup View settings Manual settings Network profile Keep network connection Time/Date Set Time/Date Auto update Update from Network No update Set format Set timezone Daylight savings Language...
-
Page 8: Explanation Of Warning Symbols And Notes
Thank you for choosing a Hama product. 3. Safety Notes Take your time and read the following instructions and • The product is intended for private, non-commercial use information completely. Please keep these instructions in a only. safe place for future reference. If you sell the device, please •... -
Page 9: Informations And Notes Before Getting Started
AC power grid. Please note that a country-specific connected to the internet. adapter may be necessary. You can find an appropriate selection of Hama products at WLAN connection (wireless network) www.hama.com. • Ensure that the router is switched on, is functioning correctly and that there is a connection to the internet. -
Page 10: General Notes On Use
6.2. General notes on use Entering passwords, search terms, and so on • Select each successive letter and digit by turning [enter/ navigate] and confirm each selection by pressing Notes on use [enter/navigate]. • When a selection among menu items is to be made •... -
Page 11: Initial Setup
Switching on/off / Standby Date/ Time • 12/24 hours format • Press [ ], to switch the radio on or off (Standby). • Auto update • To completely switch off the device, disconnect it from • Update from Network the power supply. Choose this option to set the time and date automatically from the internet. -
Page 12: Main Menu / Modes
7. Main menu / modes 8. Internet radio Access the main menu as follows: The radio uses the station list on the vTuner* portal. You can use stations without direct registration on the following portal: http://www.wifiradio-froniter.com. [MENU] You will find detailed operating instructions under Section 8.5 Favourites Note * If necessary, it is possible to switch providers in order... -
Page 13: Search By Country Or Region
8.1.1 Search by country or region 8.1.3 Search by name To search for a station by continent, country and region, If you know the name of the desired station, you can proceed as follows: search for it directly. [MENU] [MENU] Station list Station list ... -
Page 14: New Stations
8.1.5 New stations 8.2 Podcasts Stations that have recently been added to the database Podcasts are programs on various topics and include, can be found as follows: for example, talk shows, news and much more. Podcasts can be downloaded from the Internet. There are normally approximately 10,000 programs available. -
Page 15: Search By Name
8.2.3 Search by name 8.4.1 Save favourites If you know the name of the desired Podcasts, you can • Set the station that you would like to save as a favourite search for it directly. station preset. • If the station is received, press and hold [PRESET] on front of the radio. -
Page 16: Favourites (Vtuner - Http://Www.wifiradio-Frontier.com)
8.5 Favourites • During registration, the radio’s ID is associated with your (vTuner - http://www.wifiradio-frontier.com) e-mail address and saved in the web interface. • If multiple radios are registered to you and you wish to In addition to the local station memory slots, you can delete one of those registrations or just compare them, create additional lists of favourites using the vTuner you can find the radio’s ID as follows. -
Page 17: My Added Stations
8.5.4 My Added Stations Use: • In the Spotify app, start playback of a playlist or title as If a station you desire is not yet available, you can add it usual. manually to the portal, or suggest a station be added to •... -
Page 18: Music Player (Upnp, Usb)
10. Music player (UPNP, USB) • Choose Available devices to access an overview of all devices available on the network. This operating mode enables the playback of MP3, WMA • Select the radio. The audio is now played back on the or FlAC files that are saved on a PC, data storage medium radio. -
Page 19: Playback From The Network - Accessing Files Using The Radio
Use: Prune servers: • The radio can now access shared directories on the To reset the list of servers connected to so far, press computer, and you can stream audio files to the device [SCROLL/SELECT]. for playback. If you confirm by choosing YES, then all Common Media •... -
Page 20: General Playback Options
• To delete the entire playlist, proceed as follows: 11. Auxiliary Input Via the analogue audio input (AUX IN socket) you can connect mobile devices (for example smartphone, tablet [MENU] PC, M3 player etc.) to the radio and play the audio files using the radio´s speakers. -
Page 21: Sleep
12. Sleep 13. Alarms The radio has a timer function, which switches the radio to The Radio has two individually adjustable alarm times. standby mode after a pre-defined length of time. • Set the desired length of time (options are 13.1 Alarm settings off/15/30/45/60/90/120 minutes) using You can access the alarm settings as follows:... -
Page 22: Activating/ Deactivating The Alarm
Volume: 14. Timer You can set the volume at which the alarm sound should The radio is equipped with an egg timer, which emits an be played. This setting makes it irrelevant how loud you alarm tone after a pre-defined length of time has elapsed. last listened to the radio. -
Page 23: System Settings
15. System settings 15.2 Network You can modify all settings and access important 15.2.1 Network wizard – Configuration of internet information about the radio in the System settings. connection / Automatic search The network wizard supports you to set up a 15.1 Equaliser connection between the radio and internet. -
Page 24: Wireless Network Connection (Wlan)
15.2.2 Wireless network connection (WLAN) • Alternatively, PBC setup can be initiated from the internet settings of the radio: Depending on the network, there are a number of ways to connect to it. Networks that support connection via WPS (Wi-Fi Protected [MENU] Setup) are identified in the list as [WPS]. -
Page 25: Manual Configuration Of Network Connection - Wireless (Wlan) And Wired (Lan)
Open network Manual configuration wireless (WLAN) – DHCP disable Note The method described here assumes the DHCP server is active (manual wireless configuration(WLAN) – DHCP • We recommend against establishing unsecured enable). However, the network information such as IP connections and advise you to always protect your address, subnet mask, gateway address, and DNS (primary network against unauthorised access. -
Page 26: Network Profile
15.2.5 Network profile 15.2.6 Keep network connected The radio automatically saves all successfully connected This setting is a radio energy-saving function. network profiles. This means that re-establishing these connections (for example, after the radio was disconnected [MENU] from the power supply) does not require you to re-enter the network access information. -
Page 27: Language
No update Note The time and date (DD-MM-YYYY) must be set manually; no automatic calibration takes place. • Resetting to the factory default settings can solve some problems and malfunctions. Set Time/ Date • However, all settings made previously, such as custom Set the date (DD-MM-YYYY) and time (hh:mm) manually equaliser presets, favorites, and network profiles, are using [enter/navigate]. -
Page 28: Setup Wizard
15.7 Setup wizard 15.9 Backlight You can restart the setup wizard (6.3.1. Setup wizard) at The backlight can be configured for each operating any time by proceeding as follows: mode (Operation Mode, Standby Mode, Slumber Mode) separately. [MENU] • Proceed as follows: [MENU] System settings ... -
Page 29: Care And Maintenance
Hama GmbH & Co. KG assumes no liability and provides no collecting points set up for this purpose or point of sale. - Page 30 Hama GmbH & Co KG 86652 Monheim / Germany www.hama.com The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
