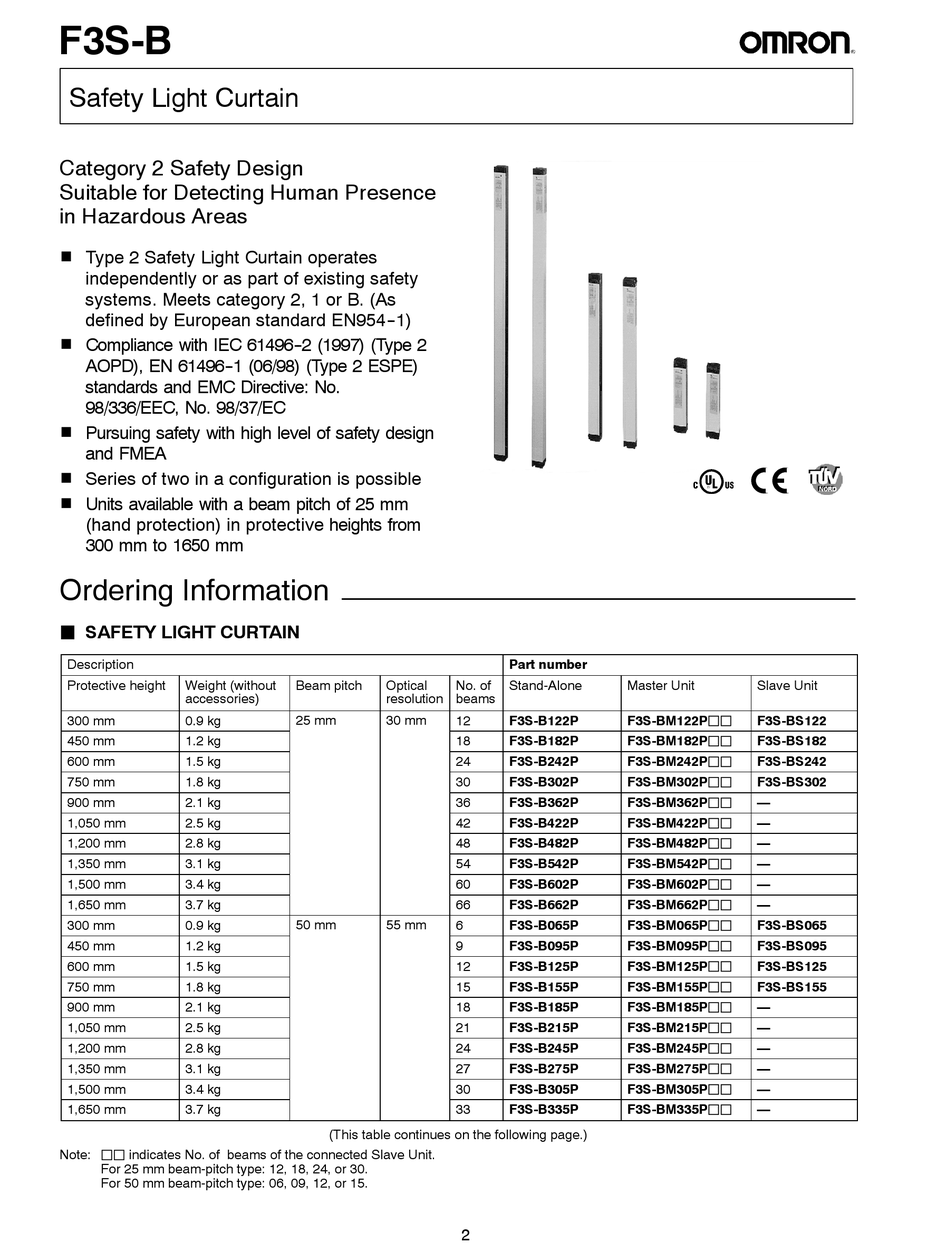

F3S-B
Safety Light Curtain
Category 2 Safety Design
Suitable for Detecting Human Presence
in Hazardous Areas
Type 2 Safety Light Curtain operates
H
independently or as part of existing safety
systems. Meets category 2, 1 or B. (As
defined by European standard EN954--1)
Compliance with IEC 61496--2 (1997) (Type 2
H
AOPD), EN 61496--1 (06/98) (Type 2 ESPE)
standards and EMC Directive: No.
98/336/EEC, No. 98/37/EC
Pursuing safety with high level of safety design
H
and FMEA
Series of two in a configuration is possible
H
Units available with a beam pitch of 25 mm
H
(hand protection) in protective heights from
300 mm to 1650 mm
Ordering Information
J SAFETY LIGHT CURTAIN
Description
Protective height
Weight (without
accessories)
300 mm
0.9 kg
450 mm
1.2 kg
600 mm
1.5 kg
750 mm
1.8 kg
900 mm
2.1 kg
1,050 mm
2.5 kg
1,200 mm
2.8 kg
1,350 mm
3.1 kg
1,500 mm
3.4 kg
1,650 mm
3.7 kg
300 mm
0.9 kg
450 mm
1.2 kg
600 mm
1.5 kg
750 mm
1.8 kg
900 mm
2.1 kg
1,050 mm
2.5 kg
1,200 mm
2.8 kg
1,350 mm
3.1 kg
1,500 mm
3.4 kg
1,650 mm
3.7 kg
Note: jj indicates No. of beams of the connected Slave Unit.
For 25 mm beam-pitch type: 12, 18, 24, or 30.
For 50 mm beam-pitch type: 06, 09, 12, or 15.
Beam pitch
Optical
No. of
resolution
beams
25 mm
5
30
30 mm
12
18
24
30
36
42
48
54
60
66
50 mm
50
55 mm
55
6
9
12
15
18
21
24
27
30
33
(This table continues on the following page.)
2
Part number
Stand-Alone
Master Unit
F3S-B122P
F3S-BM122Pjj
F3S-B182P
F3S-BM182Pjj
F3S-B242P
F3S-BM242Pjj
F3S-B302P
F3S-BM302Pjj
F3S-B362P
F3S-BM362Pjj
F3S-B422P
F3S-BM422Pjj
F3S-B482P
F3S-BM482Pjj
F3S-B542P
F3S-BM542Pjj
F3S-B602P
F3S-BM602Pjj
F3S-B662P
F3S-BM662Pjj
F3S-B065P
F3S-BM065Pjj
F3S-B095P
F3S-BM095Pjj
F3S-B125P
F3S-BM125Pjj
F3S-B155P
F3S-BM155Pjj
F3S-B185P
F3S-BM185Pjj
F3S-B215P
F3S-BM215Pjj
F3S-B245P
F3S-BM245Pjj
F3S-B275P
F3S-BM275Pjj
F3S-B305P
F3S-BM305Pjj
F3S-B335P
F3S-BM335Pjj
Slave Unit
F3S-BS122
F3S-BS182
F3S-BS242
F3S-BS302
F3S-BS065
F3S-BS095
F3S-BS125
F3S-BS155
