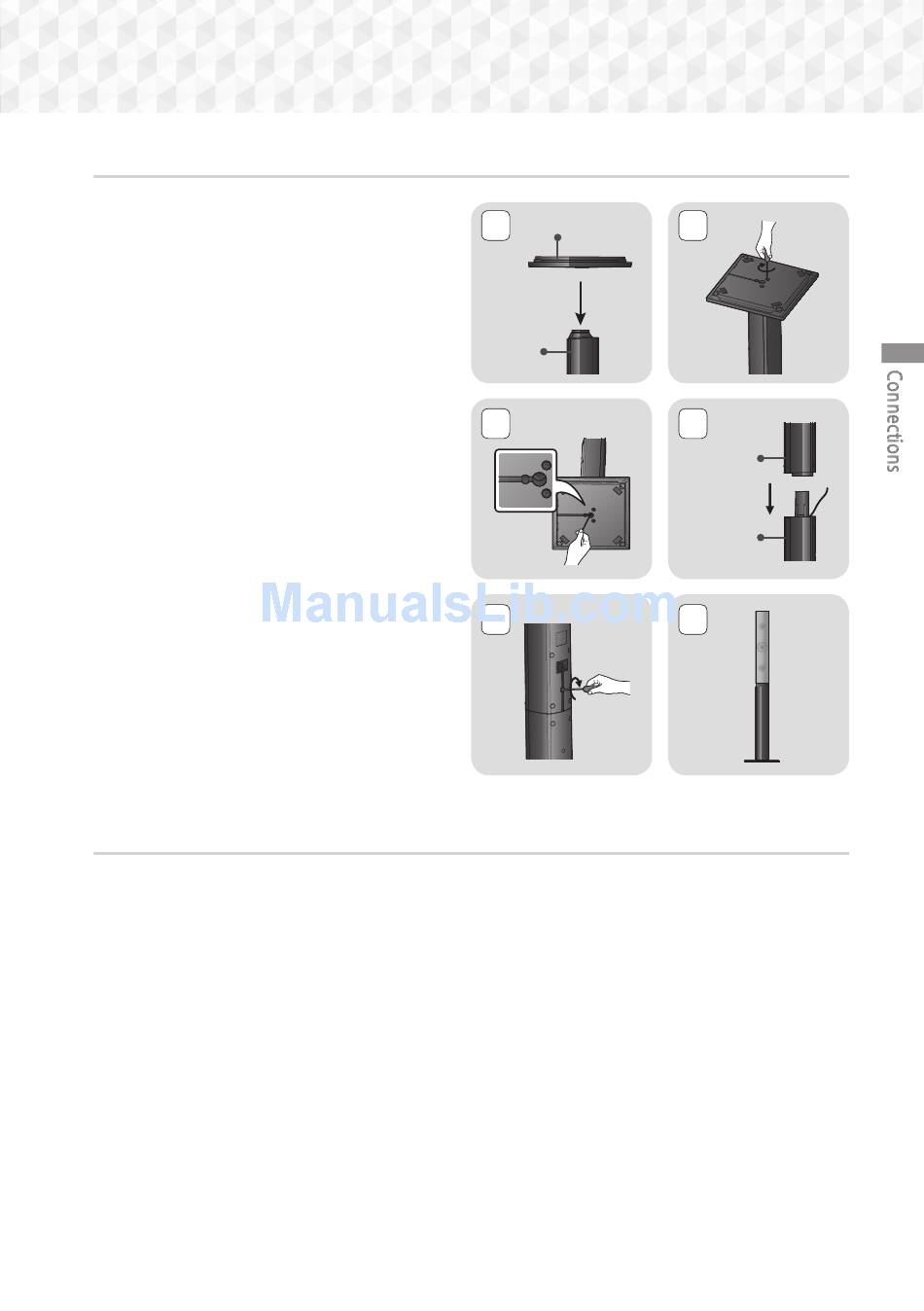

Installing the Speakers on the Tallboy Stand

Turn the Stand Base upside-down and connect
1.
it to the Stand.
Use the driver to combine the screws on the 3
2.
marked holes.
Straighten a supplied speaker wire and put in
3.
the hole on the centre of Stand Base.
Connect the upper Speaker to the assembled
4.
Stand.
Insert a screw clockwise into the hole on the
5.
rear of the speaker using a screwdriver.
And then connect a speaker cable.
This is the appearance after the speaker is
6.
installed.
Follow this steps to install other speaker.
Speaker Cable Connections
* Front/Surround Speakers only
Match each speaker cable bundle to the correct speaker by matching the colour coded plug on each
1.
bundle to the coloured sticker on the bottom of each speaker.
Connect the speaker wire plugs from each speaker to the back of the product by matching the colours of
2.
the speaker plugs to the colours of the speaker jacks. When connecting, make sure to match label colour
on the back of speaker.
1
Stand Base
Stand
3
5
9
- English
2
4
Speaker
Stand
6
