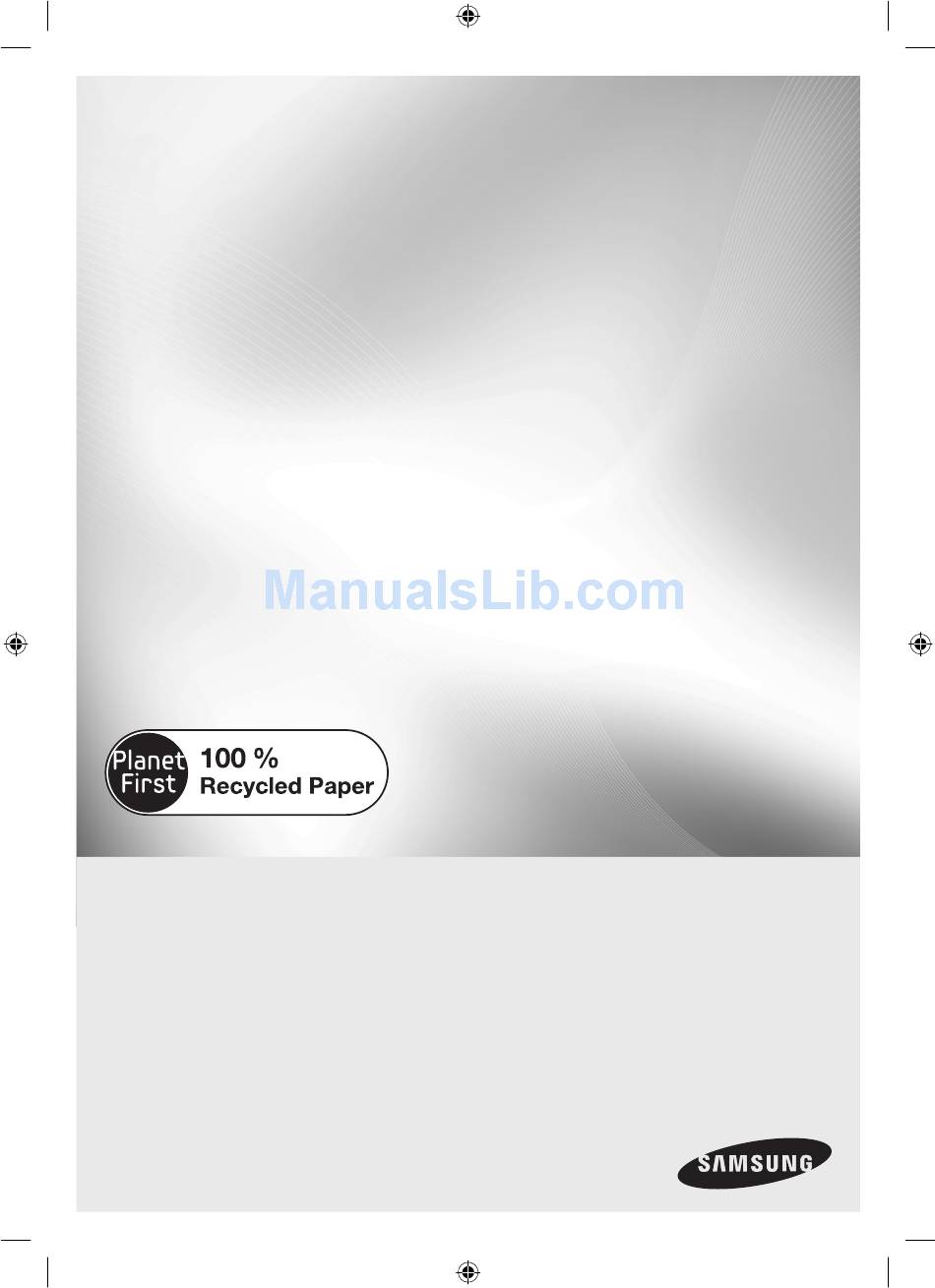

- Page 1 NV70F7584DS Built-in Oven user manual This manual is made with 100 % recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. NV70F7584DS-EU_DG68-00191Z-03_EN.indd 1 2015-03-13 11:33:25...
-
Page 2: Table Of Contents
15 Set time 15 Set cook timer 15 Set end timer 16 Set delay start 16 Set kitchen timer other settings 16 Tone signal 16 Oven light 16 Child lock 16 Switch off English - 2 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 2 2015-03-13 11:33:25... - Page 3 (depending on model) 24 Hand cleaning 25 Water collector cleaning 25 Detaching the side runners (depending on model) 25 Cleaning the ceiling (depending on model) 26 Troubleshooting 26 Information codes 27 Product data sheet English - 3 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 3 2015-03-13 11:33:25...
-
Page 4: Using This Manual
Thank you for choosing SAMSUNG Built - In Oven. This user Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this Owner’s Manual before using your oven and keep this book for future reference. - Page 5 Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. English - 5 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 5 2015-03-13 11:33:27...
- Page 6 In the event of a fault or damage to the appliance, do not attempt to operate it. Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. If your oven needs repair, contact a SAMSUNG Service Centre or your dealer.
-
Page 7: Bulb Exchange
• Disconnect the oven from the mains. • Protect the oven light bulb and the glass cap by laying a cloth on the bottom of the oven compartment. • Bulbs can be purchased from the SAMSUNG Service Centre. English - 7 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 7... - Page 8 Always use a dry cloth when handling a halogen bulb to prevent sweat from fingers being deposited on the bulb surface. It increases the life of the bulb when you exchange the bulb. 4. Reattach the glass cover. English - 8 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 8 2015-03-13 11:33:28...
-
Page 9: Door Removal
Check the right locations of glass 1 and 2 with above picture. attaching: The Door-Glass is different from 2EA to 4EA model by model. When assembly the inner glass 1, put printing to direction below. English - 9 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 9 2015-03-13 11:33:31... -
Page 10: Auto Energy Saving Function
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. English - 10 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 10 2015-03-13 11:33:31... - Page 11 With built-in furniture, plastic surfaces and adhesive for the oven should be resistant to 90 °C inside of the furniture and to 75 °C for adjacent furniture. Samsung will take no responsibility for damage of plastic surfaces or adhesive from the heat.
-
Page 12: Oven Controls
For purposes of quality improvement, the appearance may be subject to change. accessories Your new Samsung oven comes with a lot of accessories that should become very helpful during the preparation of different meals. The following accessories are supplied differently model by model. - Page 13 When cooking meat, we recommend using the fat filter. When baking pastry, always remove the filter! If the filter is installed when baking pastry or cakes, the results can be quite poor. English - 13 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 13 2015-03-13 11:33:38...
-
Page 14: Initial Cleaning
Even though you change temperature to higher, the oven automatically change target temperature and auto speed preheating will be applied. After the selected temperature is reached, the preheating indicator will disappear and a signal reminds you to insert the food into your oven. English - 14 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 14 2015-03-13 11:33:39... -
Page 15: Set Time
The end timer can be reset in the same order as above and when the setted time is over, the display shows blinking “0:00” with a signal. To cancel the end timer, press key and set the end timer to current time. English - 15 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 15 2015-03-13 11:33:40... -
Page 16: Set Delay Start
SwiTch OFF When the oven has been switched off every heating elements stop operating. The cooling fan will continue to run for a while after the oven has been switched off for safety. English - 16 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 16 2015-03-13 11:33:43... -
Page 17: Cooking Functions
After this stage the food is cooked gently by the low temperature of pre- 40-150 °C selection. This process is done while the top and the bottom heaters are operating. This mode is suitable for meat roasts, poultry and fish. Suggested temperature : 100 °C English - 17 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 17 2015-03-13 11:33:46... -
Page 18: Automatic Cooking
Put 2-6 beef steaks side by side evenly on Wire shelf. The first setting is for thin 2. 0.6 - 0.8 Universal steaks, the second setting is for thick tray steaks. Turn over after beep sounds. English - 18 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 18 2015-03-13 11:33:46... - Page 19 Put vegetables, such as sliced courgette, pieces of pepper, sliced aubergine, Vegetables 2. 0.8 - 1.0 tray mushrooms and cherry tomatoes into Universal tray. Brush with a mixture of olive oil, herbs and spices. English - 19 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 19 2015-03-13 11:33:46...
- Page 20 (yeast dough or sour dough. 0.6-0.8 kg setting dough) is for leaven. Knead dough manually, put into baking dish and cover with cling film. 3. 0.6 - 0-8 (bread dough) English - 20 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 20 2015-03-13 11:33:46...
-
Page 21: Cooking Guide
3 / 2 15-20 Baking tray Cheese) Frozen Fish fingers (300-700 g) Wire shelf/ 3 / 2 15-25 (without preheat) Baking tray Frozen Fish burger (300-600 g) Baking tray 180-200 20-35 (without preheat) English - 21 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 21 2015-03-13 11:33:47... -
Page 22: Conventional
Wire shelf/Universal tray 2 / 1 200-220 45-60 Brush with oil and spices Add 1 cup water Duck Breast (300-500 g) Wire shelf/Universal tray 4 / 3 180-200 25-35 Add 1 cup water English - 22 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 22 2015-03-13 11:33:47... -
Page 23: Test Dishes
1-1½ Beef Burgers * Wire tray insert + Large Grill 270 °C 14-16 (12ea) Universal tray (to catch drippings) * Beef Burgers: Preheat the empty oven for 15 minutes using Large Grill function. English - 23 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 23 2015-03-13 11:33:47... -
Page 24: Cleaning And Cares
Wash the accessory after every use and dry it with a kitchen towel. If necessary, lay in warm soapy water for about 30 minutes for easier cleaning. English - 24 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 24 2015-03-13 11:33:48... -
Page 25: Water Collector Cleaning
Do not press the grill heater down, the grill heater can be deformed. 3. When cleaning has been done, lift the grill heater back to its original level and turn the nut circular clockwise English - 25 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 25 2015-03-13 11:33:50... -
Page 26: Troubleshooting
Clean the keys and check if there is water on the surface around key. Turn off the oven and try setting again. If it occurs again, call your local SAMSUNG Customer Care Centre. An oven error may cause low Call your local SAMSUNG Customer performance and problems in safety. -
Page 27: Product Data Sheet
• Plan oven use to avoid turning the oven off between cooking one item and the next to save energy and reduce the time for re-heating the oven. • Wherever possible cook more than one item at a time. English - 27 NV70F7584DS-EU_DG68-00191Z-03_EN.indd 27 2015-03-13 11:33:51... - Page 28 Mobilfunk max. 0,60 €/Anruf) ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support CYPRUS 8009 4000 only from landline, toll free www.samsung.com/gr/support 80111-SAMSUNG (80111 726 7864) only from land line GREECE (+30) 210 6897691 from mobile and land line LUXEMBURG 261 03 710 www.samsung.com/support NETHERLANDS 0900-SAMSUNG (0900-7267864) (€...
